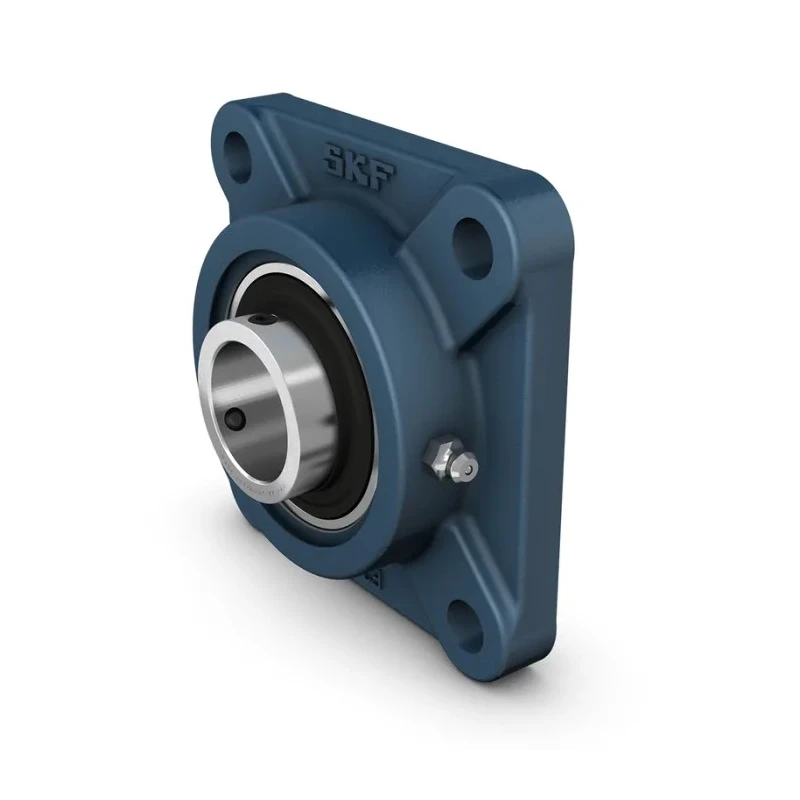

SKF 4 Hole Cylindrical Flange Bearing Unit Cast Iron Housing 100 mm ID FYJ 100 TF

Free Delivery in India | Lowest Global Shipping Charges

SKF 4 Hole Cylindrical Flange Bearing Unit Cast Iron Housing 100 mm ID FYJ 100 TF



Category Bearing Units Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Cast Iron
Length	265mm
Model	FYJ 100 TF
Depth	107.5mm
Width	110.1mm
Series	FYJ
Inside Diameter	100mm
Limiting Speed	1900rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	93kN
Dynamic Load Rating	124kN
Mount Hole Size	27 mm
Mount Hole Centre-to-Centre	210mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

The bearing unit features a set screw locking type for secure shaft attachment.
Constructed with a durable cast iron housing ensuring long service life.
Has four mounting holes with a diameter of 27 mm for flexible installation.
Capable of handling dynamic loads up to 124 kN and static loads up to 93 kN.
Limiting speed of 1900 RPM allows operation in high-speed applications.
The bore type is cylindrical with an open end type providing easy mounting.
Overall unit length is 265 mm, width 110.1 mm, and depth 107.5 mm.
Mount hole centre-to-centre distance is 210 mm for precise fitting.

Product Description

SKF FYJ 100 TF 4 Hole Cylindrical Flange Bearing Unit, featuring a 100 mm inside diameter and durable cast iron housing, is engineered for high performance in industrial mechanical applications. This flange bearing unit supports dynamic load ratings of up to 124 kN and static load ratings of 93 kN, suitable for heavy-duty use.

The bearing unit incorporates a set screw locking mechanism ensuring secure shaft attachment and uses a cylindrical bore type with an open end for efficient mounting and maintenance. It includes four mounting holes sized at 27 mm diameter spaced 210 mm center-to-center, providing stable and flexible installation options.

Measuring 265 mm in length, 110.1 mm in width, and 107.5 mm in depth, the unit supports limiting speeds up to 1900 rpm, making it suitable for conveyors, material handling equipment, and various automated machinery requiring reliability and precision.

The cast iron construction offers robustness and durability under high operational stresses and moderate misalignment conditions, reducing wear and enhancing machine uptime. Applications include conveyor systems, industrial automation assemblies, and other mechanical assemblies requiring secure and high-performance bearing support.

The bearing unit features a set screw locking type for secure shaft attachment. Durable cast iron housing construction for heavy-duty applications. Four mounting holes for versatile installation. Supports dynamic loads up to 124 kN and static loads up to 93 kN.

Limiting speed of 1900 rpm for high-speed machinery. Cylindrical bore with open end design for ease of maintenance. Compact dimensions: 265 mm length, 110.1 mm width, and 107.5 mm depth. Mount hole centre-to-centre spacing is 210 mm ensuring precision mounting.

Ideal for conveyor systems and industrial automation.
