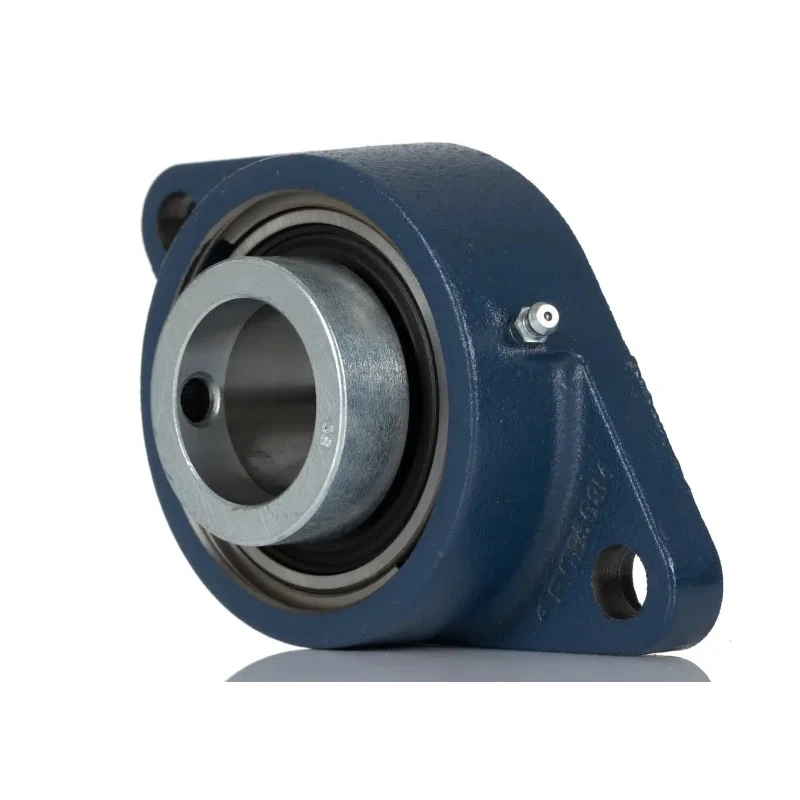

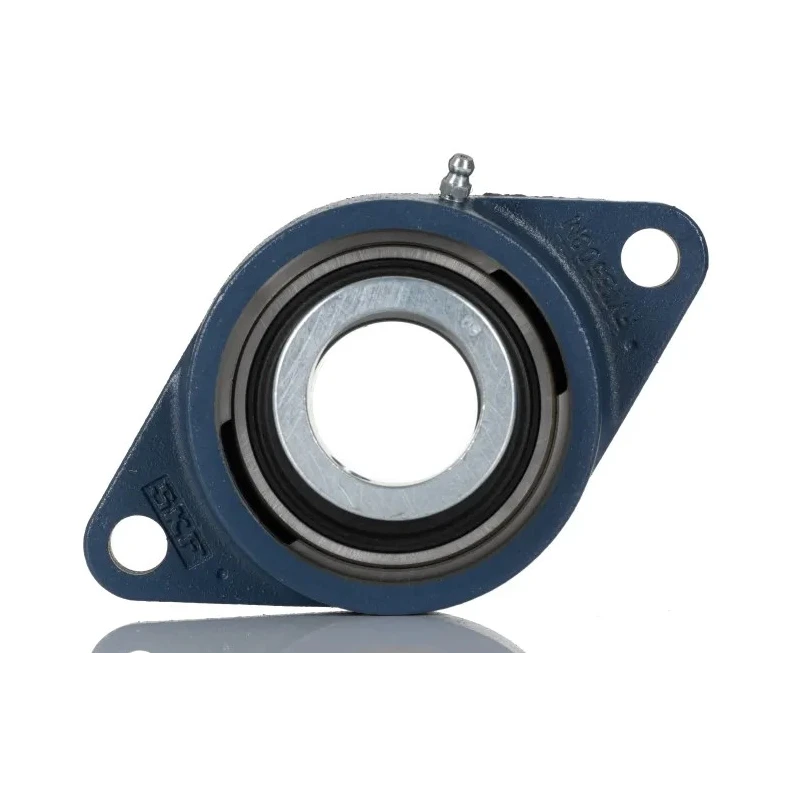

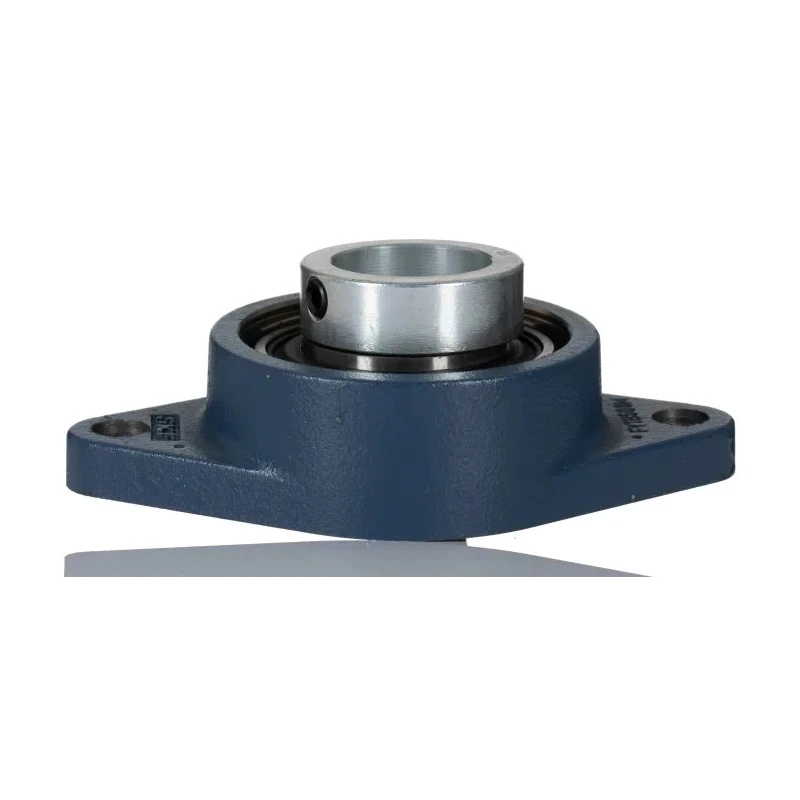

SKF Flange Bearing Unit with Oval Cast Iron Housing, Cylindrical Bore 40 mm ID, Eccentric Locking Collar, 19 kN FYTB 40 FM
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SKF |
| Material | Cast Iron, Steel |
| Length | 171.5mm |
| Model | FYTB 40 FM |
| Depth | 56.7mm |
| Width | 56.7mm |
| Series | FYTB |
| Inside Diameter | 40mm |
| Limiting Speed | 4800rpm |
| End Type | Open |
| Bore Type | Cylindrical |
| Static Load Rating | 19kN |
| Dynamic Load Rating | 30.7kN |
| Mount Hole Size | 14 mm |
| Mount Hole Centre-to-Centre | 143.5mm |
| Number of Mount Holes | 2 |
| Locking Type | Eccentric Locking Collar |
Key Features
- The cast iron oval housing ensures high impact resistance and durability.
- Sealed bearing design prevents ingress of debris and contaminants.
- Supports static load ratings up to 19 kN and dynamic loads up to 30.7 kN.
- Limiting speed of 4800 rpm suits medium speed industrial applications.
- Mounts quickly and easily with two bolt holes and 14 mm mount hole size.
- Open end type housing with a bore center-to-center distance of 143.5 mm.
- Compatible with applications in manufacturing, oil and gas processing, and plastic production industries.
Product Description
The SKF FYTB 40 FM flange bearing unit offers a robust solution for rotary bearing needs with its oval cast iron housing and sealed cylindrical bore bearing with a 40 mm inside diameter. Its eccentric locking collar design firmly secures the bearing to the shaft, reducing the risk of misalignment and ensuring reliable performance in consistent rotation applications.
This bearing unit is built for industrial use with a static load rating of 19 kN and dynamic load capacity of 30.7 kN, making it capable of safely handling heavy loads in demanding environments. The limiting speed rating of 4800 rpm allows it to perform well in mid-paced mechanical systems.
The housing is made from resilient cast iron and steel components to provide impact resistance and durability. Its open end type design with two mounting holes sized at 14 mm enables quick and easy installation. The mounting holes are spaced center-to-center at 143.5 mm for compatibility with standard setups.
The sealed bearing design helps protect against dust, dirt, and moisture penetration, promoting long service life with minimal maintenance. A grease port is incorporated for convenient relubrication when necessary. The bearing can operate reliably within a wide temperature range from -30°C to +100°C.
This product is ideal for industrial sectors such as manufacturing, oil and gas processing, and plastic production, where dependable rotary bearing units are required for machinery shafts. Its proven SKF quality guarantees high performance and durability.
The cast iron housing provides robust impact resistance. Eccentric locking collar ensures secure shaft connection. Dynamic load capability of 30.7 kN supports heavy duty operation. Limiting speed of 4800 rpm accommodates mid-speed machinery.
Two 14 mm mount holes enable easy installation. Sealed bearing design protects against contaminants. Suitable for manufacturing, oil and gas, and plastic industries. Discover a wide range of rotary Bearing Units and housing solutions at EnvMart to support your industrial machinery needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this bearing unit is 19 kN.
This model has a dynamic load capacity of 30.7 kN.
The limiting speed for this bearing unit is 4800 rpm.
The dimensions are 171.5 mm in length, 56.7 mm in depth, and 56.7 mm in width.
It uses an eccentric locking collar to secure the bearing to the shaft.
The inside diameter of this bearing unit is 40 mm.
This unit has two mounting holes, each with a size of 14 mm.
The center-to-center distance for the mounting holes is 143.5 mm.
The bearing unit is made from cast iron and steel components.
It features a sealed bearing design to prevent ingress of debris and contaminants.
This bearing unit is suitable for applications in manufacturing, oil and gas processing, and plastic production industries.
It can operate reliably within a temperature range from -30°C to +100°C.
