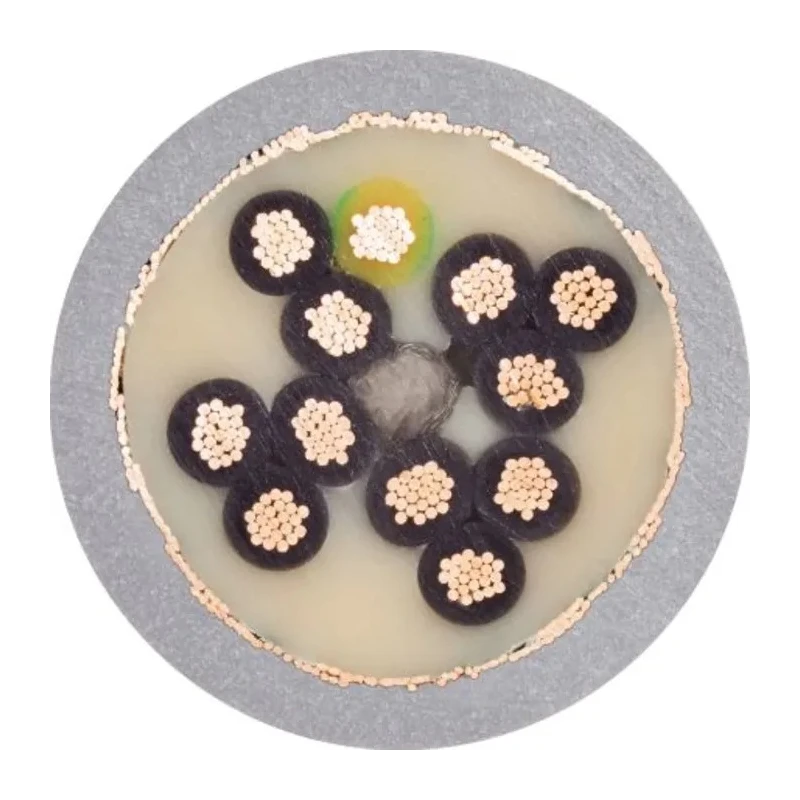

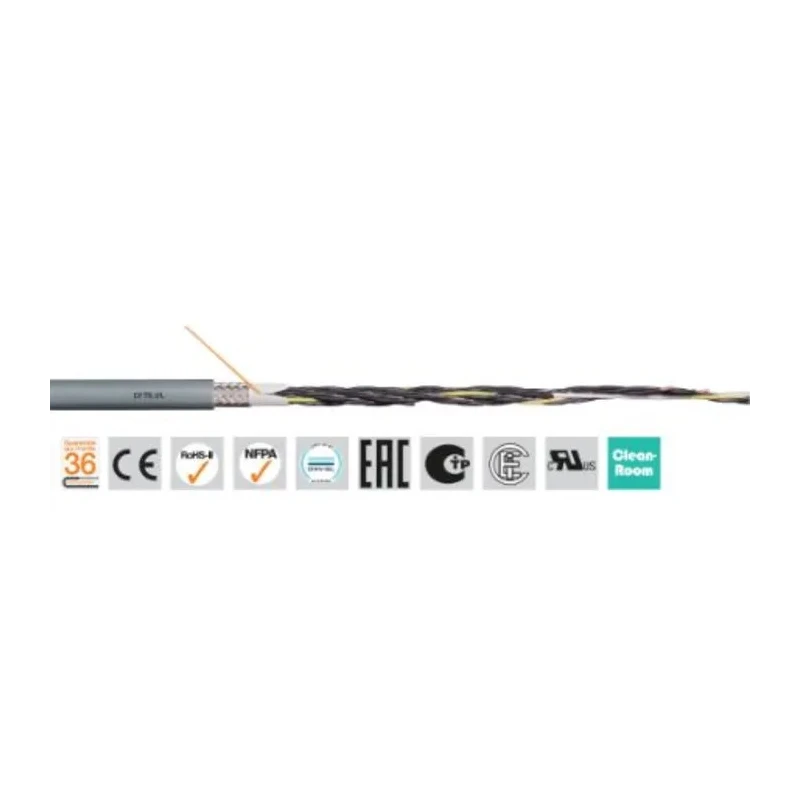

Igus chainflex CF78.UL Screened Control Cable 4 Cores Copper Conductor 1.5mm² 15 AWG Thermoplastic CF78.UL.15.04 (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF78.UL.15.04 (50m) |
| Cable Length | 50m |
| Series | chainflex CF78.UL |
| Outside diameter | 10mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- Designed for dynamic applications with small bend radii and high abrasion resistance.
- Features a patented core bundle design for extended lifetime in flexible and fixed installations.
- Oil resistant Class 4, supporting nearly unlimited oil and bio-oil resistance.
- Rated for 300/500 V control cable applications with guaranteed service life in e-chain systems.
- Wide operating temperature range from -50°C to 80°C for indoor and outdoor use.
- Screened with low angled braided screen to reduce EMC/EMI interference.
- Flame retardant and halogen-free construction ensuring safety and compliance.
- Complies with CE and EN standards and includes multiple certifications including RoHS-II and UL/CSA styles.
Product Description
Igus CF78.UL.15.04 (50m) screened control cable is engineered for high durability in industrial and automation environments. This 4-core cable uses stranded copper conductors of 1.5mm² cross-section, with a thermoplastic elastomer (TPE) jacket in grey, ensuring superior chemical and abrasion resistance. The jacket material is especially designed to resist oils and bio-oils, conforming to Class 4 oil resistance per DIN EN 50363-4-1.
The cable is screened with a low angled braided shield optimized for continuous flexing, making it ideal for e-chain systems and other dynamic applications requiring small bend radii. Rated for 300/500 V, this cable operates reliably in a temperature range from -50°C to +80°C, suitable for both indoor and outdoor use in harsh industrial conditions. It is flame retardant and halogen free, enhancing safety in case of fire.
Its compliance with CE, EN, RoHS-II, UL/CSA and NFPA standards ensures suitability for a wide variety of industrial applications such as machining units, machine tools, high-bay warehousing, packaging systems, refrigeration, and automated storage & retrieval units. The cable's design reduces electromagnetic interference (EMI) and crosstalk issues in control and signal transmission, crucial for process control and industrial automation environments.
Small bend radii for space-saving installations. Patented core bundle design extends cable lifetime in dynamic uses. Class 4 oil resistance for harsh chemical exposures. Low angled braided shielding minimizes EMC interference.
Wide temperature range from -50°C to +80°C for reliable operation. Flame retardant and halogen free construction improves safety. Conforms to CE, EN, RoHS-II, UL/CSA, and NFPA standards. Suitable for control applications in machining, warehousing, packaging, refrigeration, and automated systems.
This Igus chainflex CF78.UL cable offers a durable, flexible, and safe connection solution with a guaranteed service life backed by extensive laboratory testing. It is ideal for use in industrial automation, manufacturing processes, HVAC systems, and water treatment plants requiring reliable control cable solutions.
Explore more industrial Control Cables and related products at EnvMart to find compatible systems and supplies tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus chainflex CF78.UL cable is rated for 300/500 V applications.
This cable can operate at a maximum temperature of 80°C.
This model features 4 cores.
The conductors are made of stranded copper.
The cable has a cross-sectional area of 1.5mm², equivalent to 15 AWG.
It uses a thermoplastic elastomer (TPE) jacket, which provides chemical and abrasion resistance.
Yes, it is suitable for both indoor and outdoor use, with a wide operating temperature range from -50°C to 80°C.
The cable complies with CE, EN, RoHS-II, UL/CSA, and NFPA standards.
The outside diameter of this cable is 10mm.
It features a low angled braided shield that minimizes electromagnetic interference (EMI) and crosstalk issues.
This control cable is 50 meters long.
It is suitable for various industrial applications such as machining units, packaging systems, and automated storage & retrieval units.
