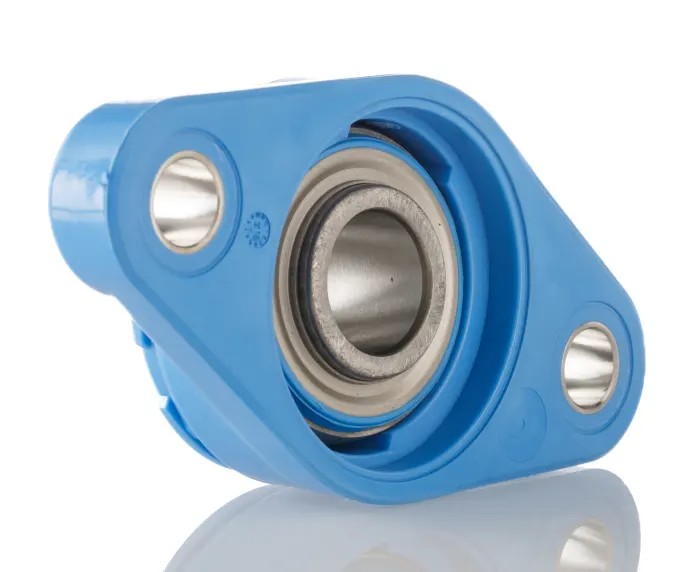

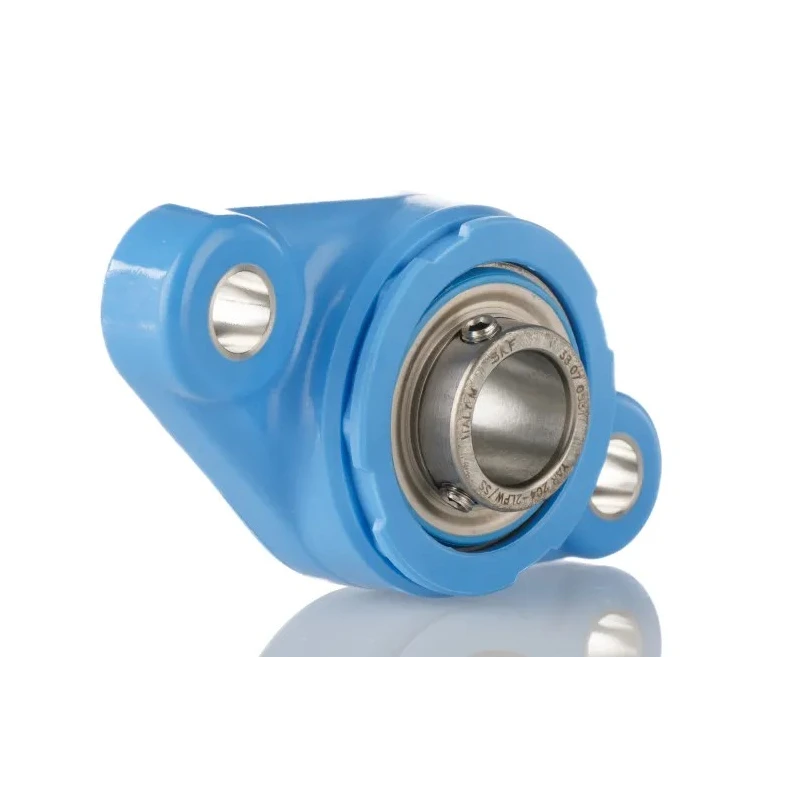

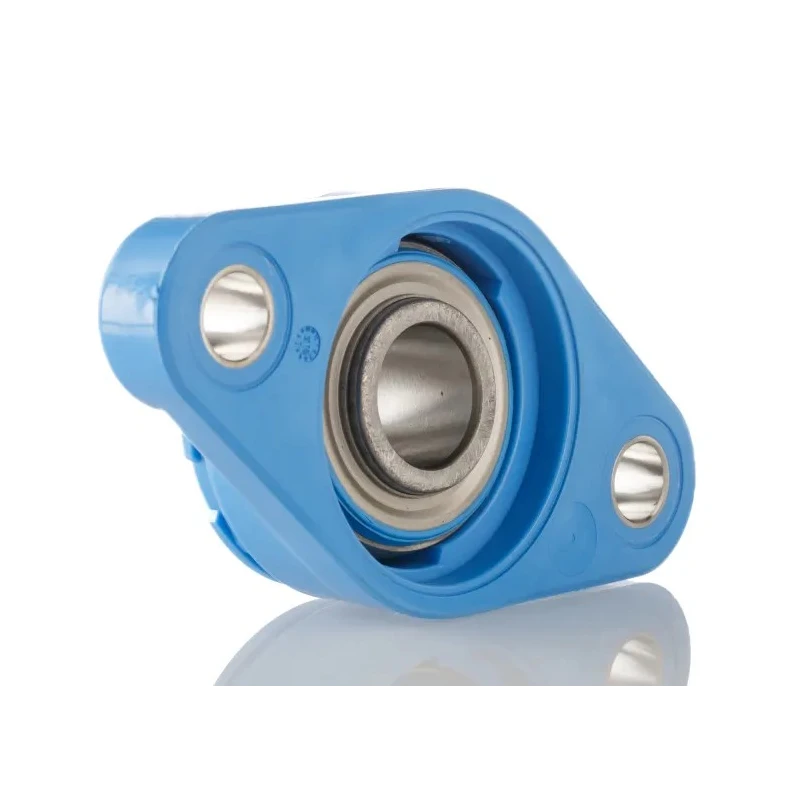

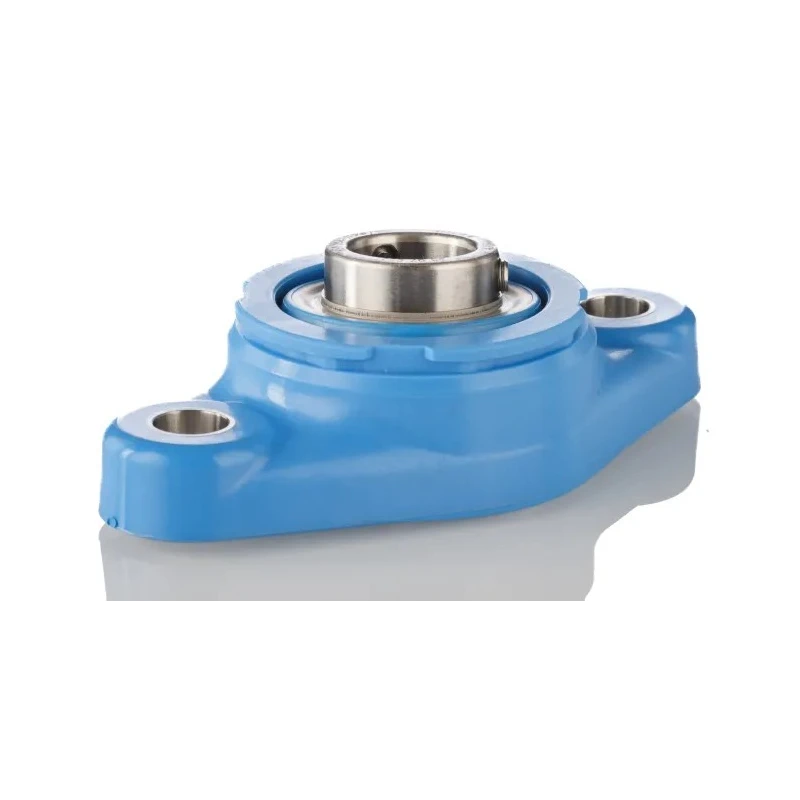

SKF Oval Flanged Stainless Steel Bearing Unit 20 mm Inside Diameter 2 Mount Holes F2BC 20M-TPSS

SKF F2BC 20M-TPSS Oval Flanged Bearing Unit with 20 mm inside diameter and 2 mounting holes is constructed from stainless steel and glass fibre-reinforced polypropylene housing. This combination delivers enhanced corrosion resistance and durability for use in industrial environments requiring regular washdowns and chemical exposure.

The housing material resists abrasion and detergents, ensuring long-lasting performance. The bearing unit supports both radial and axial loads with dynamic and static load ratings of 10.8 kN and 6.55 kN respectively, facilitating heavy load handling in versatile applications.

Equipped with gutter seals and flingers, it effectively retains lubrication and rejects contaminants, reducing maintenance needs. The unit accommodates moderate shaft misalignment enhancing installation flexibility.

Its operating temperature range of -20°C to +80°C suits demanding industrial environments. The limiting speed of 5000 rpm qualifies this unit for high-speed machinery use.

Mount hole size measures 11.5 mm and the centre-to-centre spacing is 90 mm, facilitating straightforward mounting. Physical dimensions of 199 mm length, 37.3 mm width, and 107 mm depth provide compact integration.

This bearing unit finds applications across textile, printing, food and beverage processing, and medical equipment manufacturing industries, where robust, hygienic bearing solutions are critical.

The housing is made of glass fibre-reinforced polypropylene, ensuring resistance to water and abrasive chemicals. Stainless steel material provides extended product life and corrosion resistance. The unit supports radial and axial loads with dynamic load rating of 10.8 kN and static load rating of 6.55 kN.

It features gutter seals and flingers to retain lubrication and prevent contamination. Operates within a broad temperature range from -20°C to +80°C suitable for demanding environments. The bearing accommodates moderate shaft misalignment for versatile mounting.

Limiting speed of 5000 rpm allows usage in high-speed applications. Mount hole size is 11.5 mm with centre-to-centre mount hole spacing of 90 mm for secure installation. Dimensions are length 199 mm, width 37.3 mm, depth 107 mm.

Ideal for textile, printing, food and beverage, and medical equipment industries. Explore the wide range of SKF Bearing Units on EnvMart for high-quality industrial rotary bearing solutions designed to improve operational efficiency in mechanical systems.
