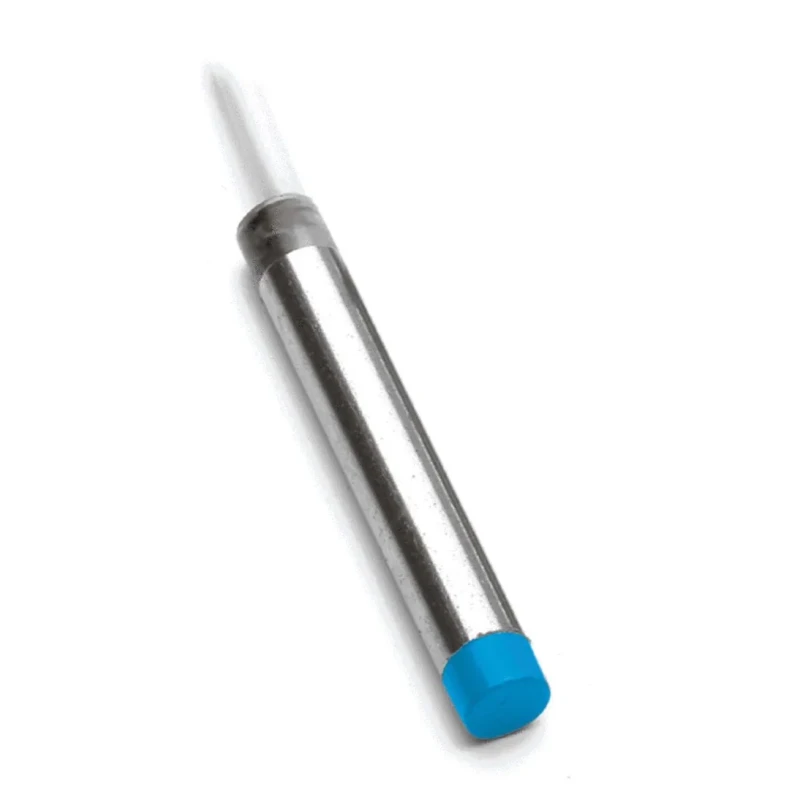

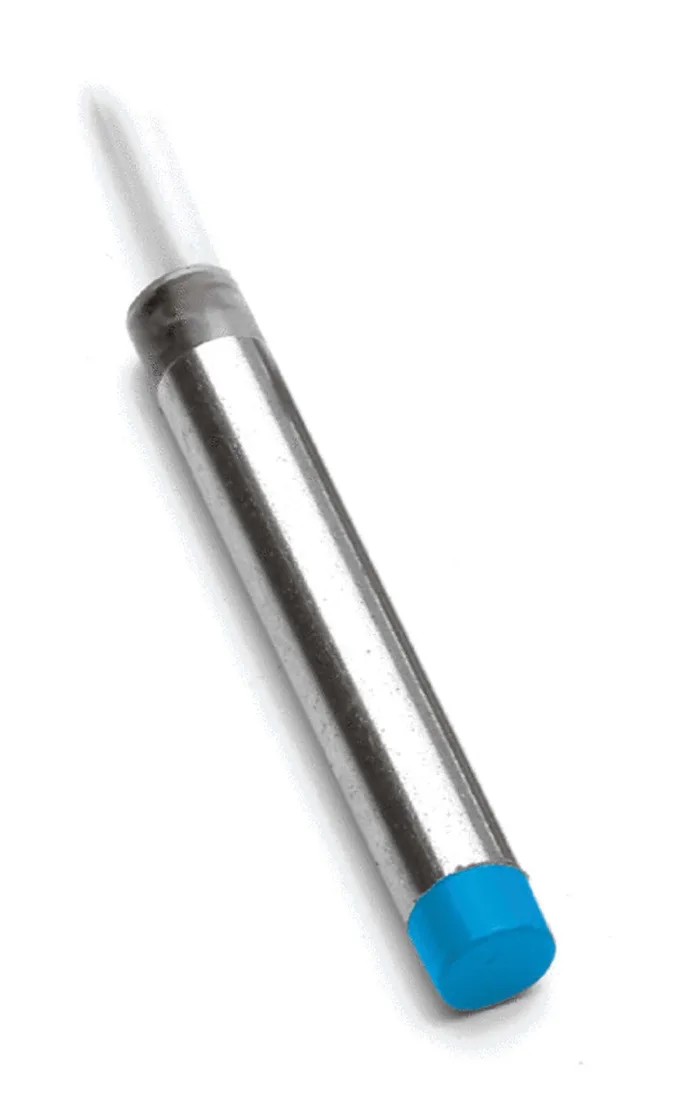

SICK Barrel Inductive Proximity Sensor PNP 30 V DC 200 mA IP67 Stainless Steel Housing IH06-04NPS-VW1

The SICK IH06-04NPS-VW1 is a high-performance barrel-style Inductive Proximity Sensor featuring a compact 45mm length and 6.5mm width stainless steel housing. Designed to operate reliably within an industrial environment, it supports a maximum supply voltage of 30 V DC and switching current up to 200 mA. The sensor can detect metallic objects up to a distance of 4 mm, with plastic materials detection capability enhancing its application versatility.

Rated with an IP67 enclosure class, this sensor is protected against dust ingress and water immersion, making it ideal for harsh operating conditions including temperature ranges from -25 °C to +70 °C. Its non-flush mounting and cable terminal type simplify installation in tight spaces and complex assemblies.

The sensor provides unshielded output with a high switching frequency of 1.8 kHz, allowing precise and fast detection in automated handling and manufacturing processes. It adheres to rigorous industrial standards such as CEI 61000-4-2 for electrostatic discharge and CEI 61000-4-4 for electrical fast transients, ensuring robust and reliable performance.

With integrated IO-Link readiness, the IH06-04NPS-VW1 enables easy sensor diagnostics, device replacement, and identification through industrial communication protocols, enhancing automation systems' effectiveness. It suits applications including positioning in handling and mounting, speed monitoring in tool spindles, and detection of small components in supply processes or industrial brakes monitoring.

Maximum supply voltage: 30 V DC and switching current: 200 mA. Compact stainless steel barrel housing, 45mm length, 6.5mm width. Detection range up to 4 mm on plastic materials. IP67 protection for dust and water resistance.

Operating temperature range from -25 °C to +70 °C. Non-flush mount and cable terminal type for flexible installation. Unshielded sensor with 1.8 kHz switching frequency for accurate detection. Compliance with CEI 61000-4-2, CEI 61000-4-4, EN 60947-5-2 standards.

IO-Link compatible for seamless industrial communication.

This sensor is ideal for industrial, automation, manufacturing, and control gear applications requiring precise, fast, and reliable proximity sensing. Select the SICK IH06-04NPS-VW1 for compact design and advanced sensing capabilities, fully supported on EnvMart’s comprehensive automation product range.
