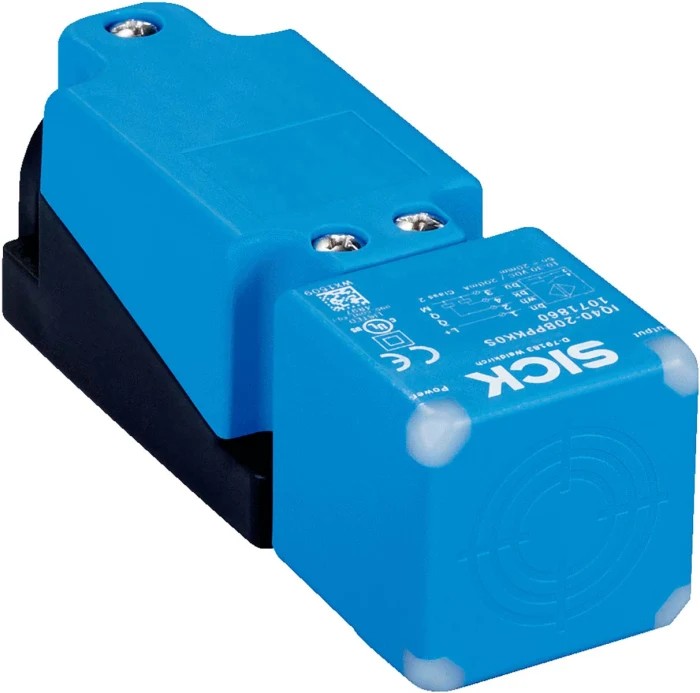

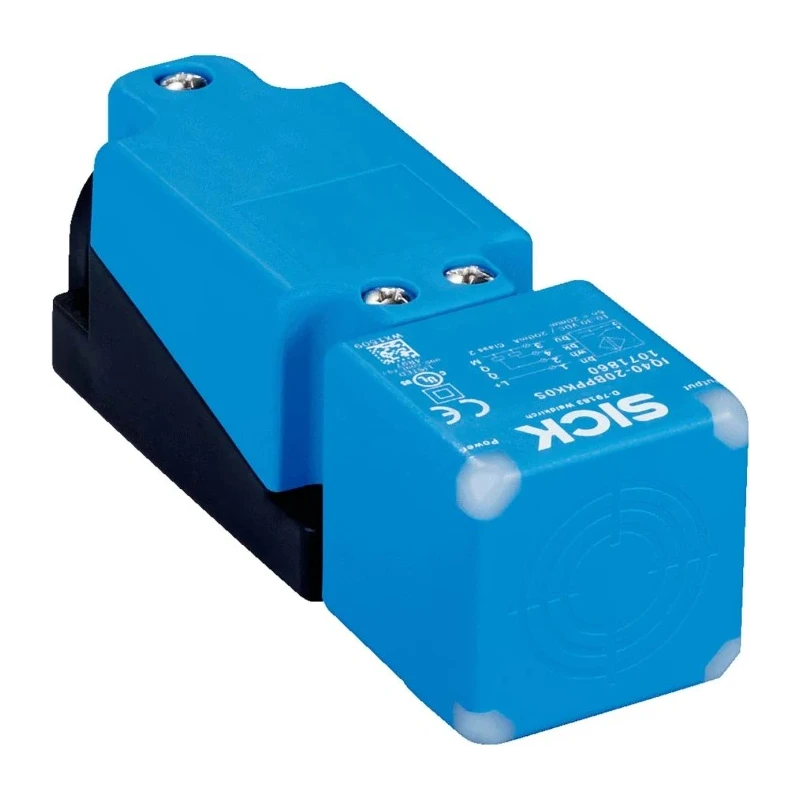

SICK Block Inductive Proximity Sensor M20 x 1.5 PNP, 30V DC, 20 mm Detection Range IQ40-20BPOKK0S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +85 °C |
| Length | 118mm |
| Model | IQ40-20BPOKK0S |
| Depth | 40mm |
| IP Rating | IP69K, IP68, IP67 |
| Width | 40mm |
| Mount Type | Flush |
| Housing Material | Plastic |
| Output type | PNP |
| Series | IQ40 |
| Maximum Operating Temperature | 85°C |
| Thread Size | M20 x 1.5 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Screw |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 150Hz |
| Standards/Approvals | UL File No. E348498 |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 20mm |
| Extended sensing ranges | 20 mm to 40 mm |
| Electrical configuration | DC 3-/4-wire |
Key Features
- Equipped with a plastic housing and M20 x 1.5 thread size for durable mounting.
- Operates at a maximum supply and DC voltage of 30 V, supporting up to 200 mA switching current.
- Features a flush mount type with screw terminals for secure connections.
- High IP rating of IP67, IP68, and IP69K ensures protection against harsh environmental conditions.
- Wide temperature operating range from -25°C to +85°C for versatile industrial use.
- Unshielded design with maximum detection distance of 20 mm and switching frequency up to 150 Hz.
- Includes a push-lock mounting system and a sensor head that can rotate in five directions for flexible application.
- Four corner LEDs provide clear sensor status indication from any viewing angle.
Product Description
The SICK IQ40-20BPOKK0S is a block-style Inductive Proximity Sensor with a robust plastic housing, designed for precise detection with a 20 mm sensing range. It features a compact 40 x 40 mm size with a length of 118 mm and a flush mount using an M20 x 1.5 threaded design. This sensor operates with a PNP output type at a maximum DC voltage of 30 V and supports a switching current of 200 mA.
Engineered for demanding industrial environments, it holds a high ingress protection rating (IP67, IP68, IP69K) providing excellent protection against dust, water immersion, and high-pressure cleaning. The operating temperature range of -25°C to +85°C and UL approval (File No. E348498) ensure reliability under diverse conditions.
The sensor's innovative push-lock mounting system allows installation without tools within two seconds and features a sensor head adjustable in five directions. Four corner LEDs guarantee easy status visibility regardless of mounting position. Its unshielded design and extended sensing ranges make it suitable for presence detection of press tools, car body positioning, skid detection at lifter exits, rack and conveyor belt monitoring, and end position control in winding units and crane gantries.
This device delivers stable, cost-effective detection with high resistance to shock, vibration, and electromagnetic interference, supporting continuous operation in harsh industrial atmospheres. The electrical configuration employs DC 3-/4-wire setup, aiding integration with various automation systems.
Plastic housing with an M20 x 1.5 threaded block design for durable installation. IP67, IP68, and IP69K rated enclosure for enhanced environmental protection. Sensor head with five directional rotation and push-lock mount for flexible and easy installation.
PNP output with 200 mA switching current and 30 V DC maximum voltage. Operating temperature range from -25°C to +85°C for broad industrial applicability. Unshielded sensing face with a 20 mm maximum detection range and 150 Hz switching frequency.
Four LED indicators for clear sensor status visibility from all angles. UL certification (File No. E348498) ensures compliance with safety standards.
The SICK IQ40-20BPOKK0S is an ideal choice for automation, manufacturing, HVAC controls, water treatment, and other industrial applications requiring reliable presence detection and position monitoring. Explore the range of proximity sensors and compatible automation gear at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 20 mm.
It operates within a temperature range of -25°C to +85°C.
This unit features a PNP output type.
The maximum supply voltage is 30V DC.
It has a length of 118 mm, a width of 40 mm, and a depth of 40 mm.
The sensor supports a maximum switching current of 200 mA.
It features a flush mount type with an M20 x 1.5 threaded design and a push-lock mounting system for easy installation.
This model has an IP rating of IP67, IP68, and IP69K, providing excellent protection against dust and water.
The maximum switching frequency is 150 Hz.
Yes, it is UL certified with File No. E348498, ensuring compliance with safety standards.
It features screw terminals for secure connections.
This sensor is suitable for applications such as presence detection in automation, manufacturing, and HVAC controls.
