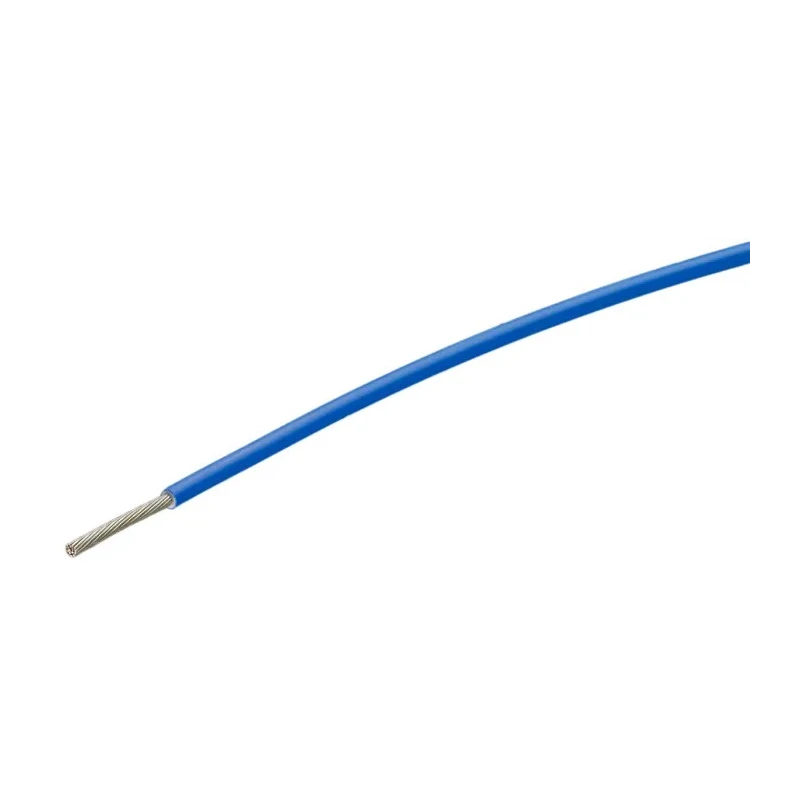

TE Connectivity FlexLite Series Blue Equipment Wire 16 AWG 19x0.32mm Core Strands 100m Polyolefin FLT0111-1.50-6

TE Connectivity FLT0111-1.50-6 is a high performance FlexLite Series Blue Equipment Wire designed for industrial and commercial electrical applications. This equipment wire features a 16 AWG American Wire Gauge size with 19 strands of 0.32 mm diameter tinned copper conductors, ensuring excellent flexibility and conductivity. The wire comes with a durable polyolefin jacket in blue color that provides flame retardant, low smoke, and self-extinguishing properties for enhanced safety.

Rated for 600 volts and capable of operating at temperatures up to 150°C, this UL listed wire is ideal for use in control panels, electrical appliances, electric motors, and robotics. The flexible double insulated design enables routing bundles through tight or restricted areas where conventional wires cannot be used.

The construction includes dual wall insulation (Class 2 equipment) which meets rigorous industrial standards, including UL 1385 and CSA Class 5851. The wire also demonstrates excellent resistance to fluids and chemicals, making it suitable for harsh environments. Its lightweight and small size simplify installation while maintaining robust performance.

With a temperature operating range from -65°C minimum to 150°C maximum, the wire is suited for a variety of demanding applications. It also meets VW-1 flammability requirements, providing additional fire safety assurances.

The wire jacket is blue polyolefin, flame retardant and low smoke. 16 AWG size with 19 strands of 0.32 mm diameter tinned copper conductor. 100 meters length with an outside diameter of 2.06 mm. Rated voltage of 600 volts and maximum operating temperature 150°C.

Meets UL 1385 standard and CSA Class 5851 approvals. Flexible, dual insulated, and suitable for industrial applications like control panels and robotics. Excellent fluid and chemical resistance with lightweight construction.

This product is manufactured in the United Kingdom and is supplied new. It is an ideal choice for electrical installations requiring high flexibility, durability, and compliance with safety standards. Browse more wires and cables in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
