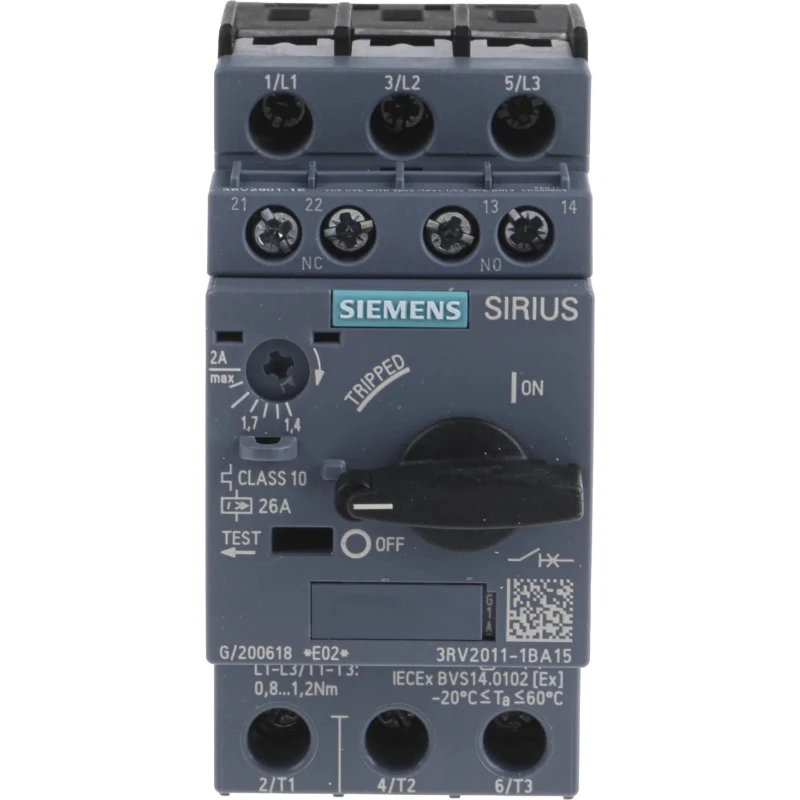

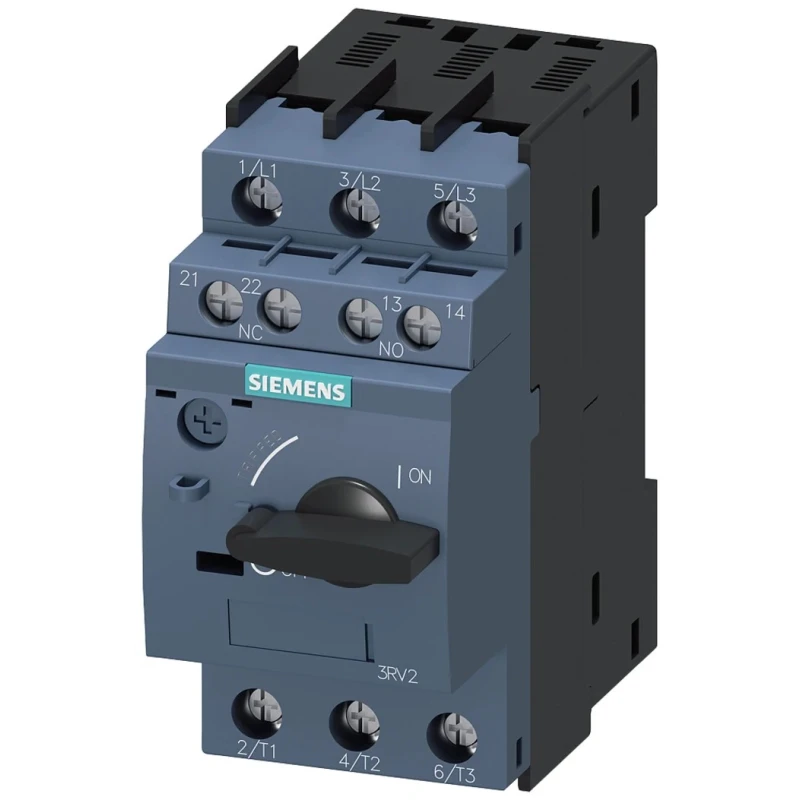

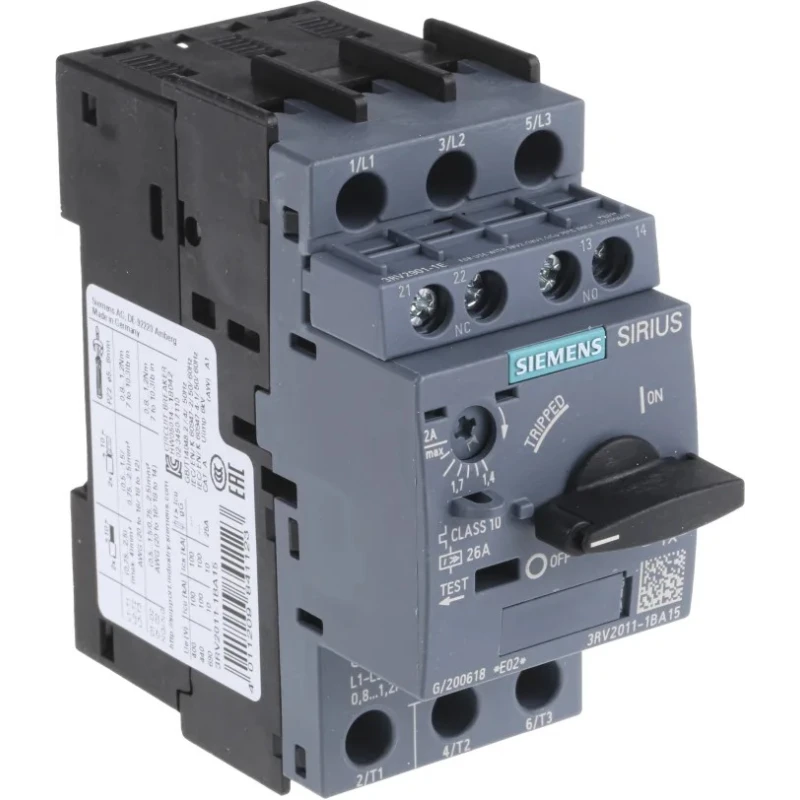

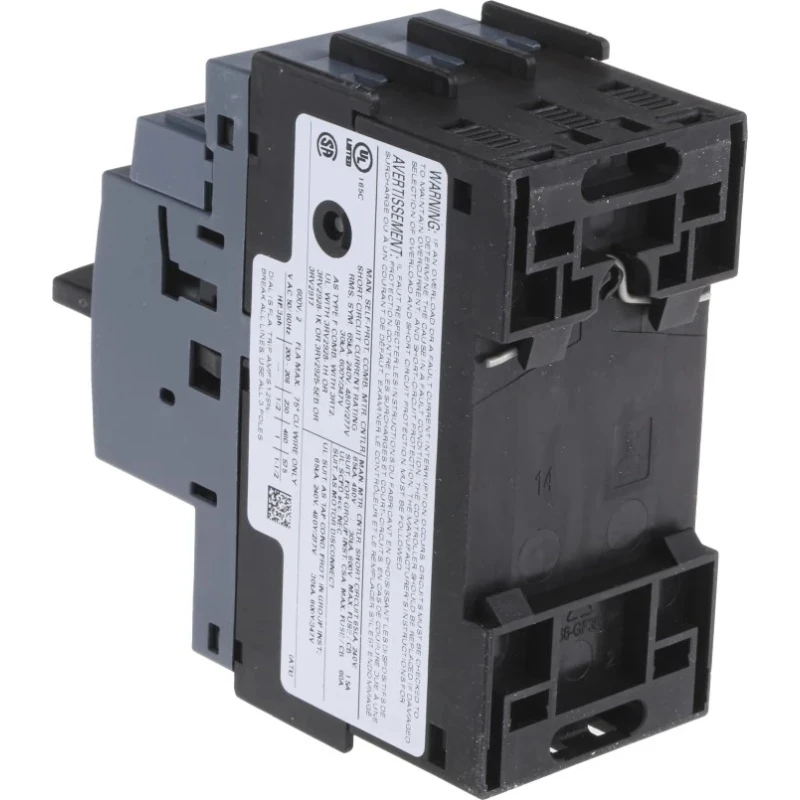

Siemens 3RV2 Motor Protection Circuit Breaker, 3 Poles, 1.4 A and 2 A Current Rating, 690V Supply Voltage 3RV2011-1BA15

Siemens 3RV2011-1BA15 Motor Protection Circuit Breaker is a high-quality, 3-pole circuit breaker for motor protection, engineered to operate reliably at 690V supply voltage with current ratings of 1.4 A and 2 A. Its magnetic sensing mechanism offers precise trip responses to overloads and short circuits, ensuring motor and equipment safety in industrial environments.

Designed for challenging conditions, the device operates efficiently within a temperature range from -20°C up to 60°C, providing resilience for applications exposed to a broad spectrum of environmental conditions. The compact dimensions of 45mm length, 96.9mm width, and 97mm depth allow for easy integration into control panels, while the IP20 rating ensures finger safety and protection against the intrusion of foreign objects larger than 12mm.

This motor protection circuit breaker complies with numerous international standards including CSA, EAC, LRS, RoHS, CCC, UKCA, UL, VDE, ATEX, ABS, and CE, attesting to its safety and quality. As part of the Siemens 3RV2 series, it features extended product life and a manufacturing process focused on low carbon emissions, aligning with sustainable industrial practices.

Installation is made simple with clip-on DIN rail mounting and screw terminals that facilitate quick wiring without specialized tools. The front-facing selector switch provides intuitive control over the device's operation. These features make it particularly suitable for industrial applications such as conveyor belts, motor control centers, and power stations where reliable motor protection is critical.

Magnetic sensing technology for effective motor protection. Wide temperature operating range from -20°C to 60°C. Compact dimensions: 45mm (L) x 96.9mm (W) x 97mm (D). IP20 rating provides finger safety during installation and maintenance.

Compliance with multiple international safety and quality standards. Long mechanical service life with up to 100,000 switching cycles. Simple clip-on DIN rail mounting for easy installation. Front selector switch for straightforward device operation.

Suitable for industrial, manufacturing, and automation applications, this Siemens Motor Protection Circuit Breaker ensures equipment safety and operational efficiency. Browse EnvMart for more Siemens motor protection devices and circuit breakers to fit your specific needs.
