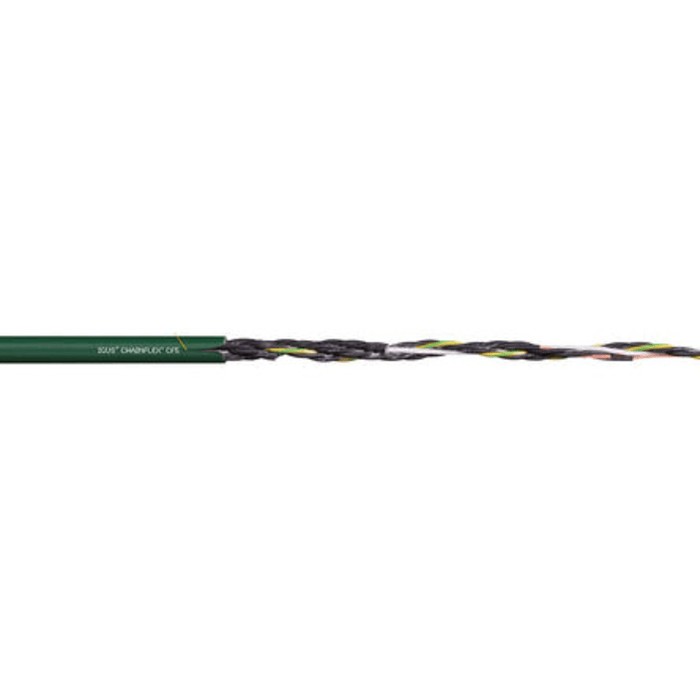

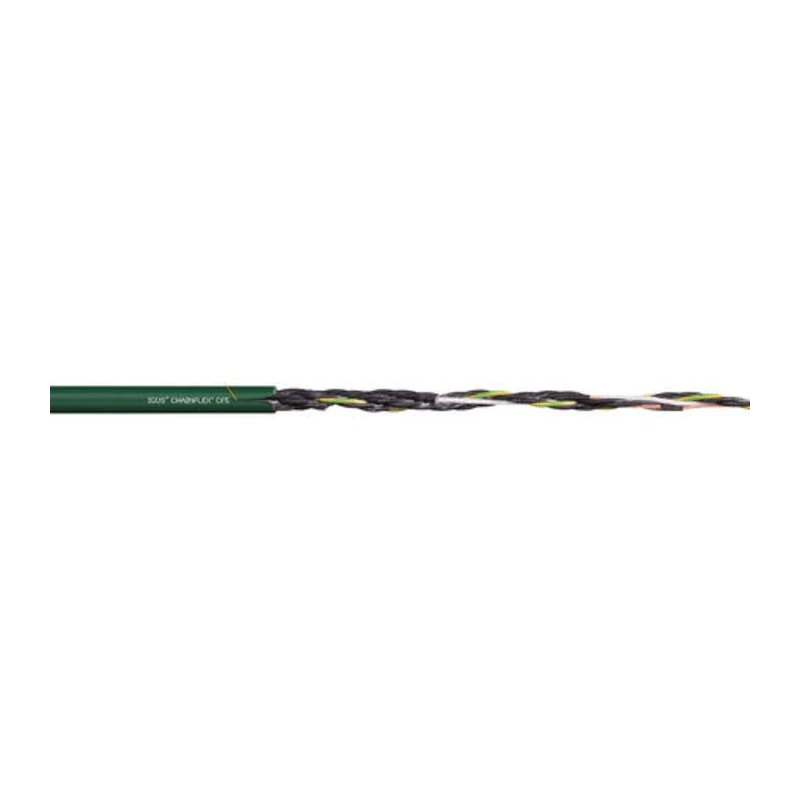

Igus Control Cable chainflex CF5, 12 Cores, 1mm² 17 AWG, Unscreened, 20 m Length, 300 V Voltage, Polyvinyl CF5.10.12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF5.10.12 |
| Cable Length | 20m |
| Series | chainflex CF5 |
| Outside diameter | 15mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, EN |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
| • Conductor markings | black conductors, numbered in white, plus a green/yellow conductor |
Key Features
- The cable is sheathed with green polyvinyl chloride for durability.
- It is armoured, providing enhanced mechanical protection.
- Designed for permanent support of high-speed flex movements in cable-holder chains.
- The cable supports a voltage rating of 300 V with stranded copper conductors.
- Operates reliably between -5°C and 70°C temperature range.
- The construction includes a pull-resistant central core with short strand pitch minimizing torsion.
- Conductor markings include black conductors numbered in white plus a green/yellow conductor.
- The cable is flame retardant and conforms to CE and EN standards.
Product Description
Igus CF5.10.12 Control Cable is a high-quality industrial cable designed for demanding electrical and automation applications requiring flexible cable solutions. This model features 12 conductor cores each with a cross-sectional area of 1mm², complying with 17 AWG standard, and is unscreened with a green polyvinyl chloride jacket. Its armoured construction ensures mechanical protection and endurance, making it suitable for dynamic use in cable-holder chains.
The cable supports continuous flexing with a low torsion factor due to its short strand pitch and the assembly of conductors around a pull-resistant central core. Its stranded copper conductors provide excellent conductivity while maintaining flexibility. The cable is rated for a voltage of 300 V and has a temperature range from -5°C minimum to a maximum of 70°C, supporting various industrial environments.
Conductor markings for easy identification include black cores numbered in white and an additional green/yellow conductor for grounding. The flame retardant jacket enhances safety in electrical installations. Certified to CE and EN standards, this cable also carries approvals from VDE 0245 and UL 62, ensuring compliance with international industrial requirements.
Manufactured in Germany, the Igus chainflex CF5 cable is tailored to provide permanent support for high speed flex movements often found in automated machinery, robotics, manufacturing systems, and process control environments. It fulfills the rigorous demands of electrical power and industrial cables categories.
The cable features an armoured construction for enhanced durability and protection. Polyvinyl chloride jacket ensures excellent resistance against mechanical and environmental effects. Flame retardant properties increase operational safety in critical applications.
Stranded copper conductors ensure reliable electrical performance under continuous flexing. Voltage rating of 300 V and operational temperature range from -5°C to 70°C. Suitable for industrial, automation, manufacturing, and process control applications.
Explore more cables and electrical components in the Electronics & Electricals category on EnvMart for your industrial automation and wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300 V.
It operates reliably between -5°C and 70°C.
This model features 12 conductor cores.
The jacket is made of green polyvinyl chloride (PVC).
It uses stranded copper conductors for excellent conductivity.
This model is unscreened.
The outside diameter of the cable is 15 mm.
It conforms to CE and EN standards, and is also approved by VDE 0245 and UL 62.
The green/yellow conductor is used for grounding.
It is suitable for industrial, automation, manufacturing, and process control applications.
This cable is manufactured in Germany.
The cable is flame retardant, enhancing safety in electrical installations.
