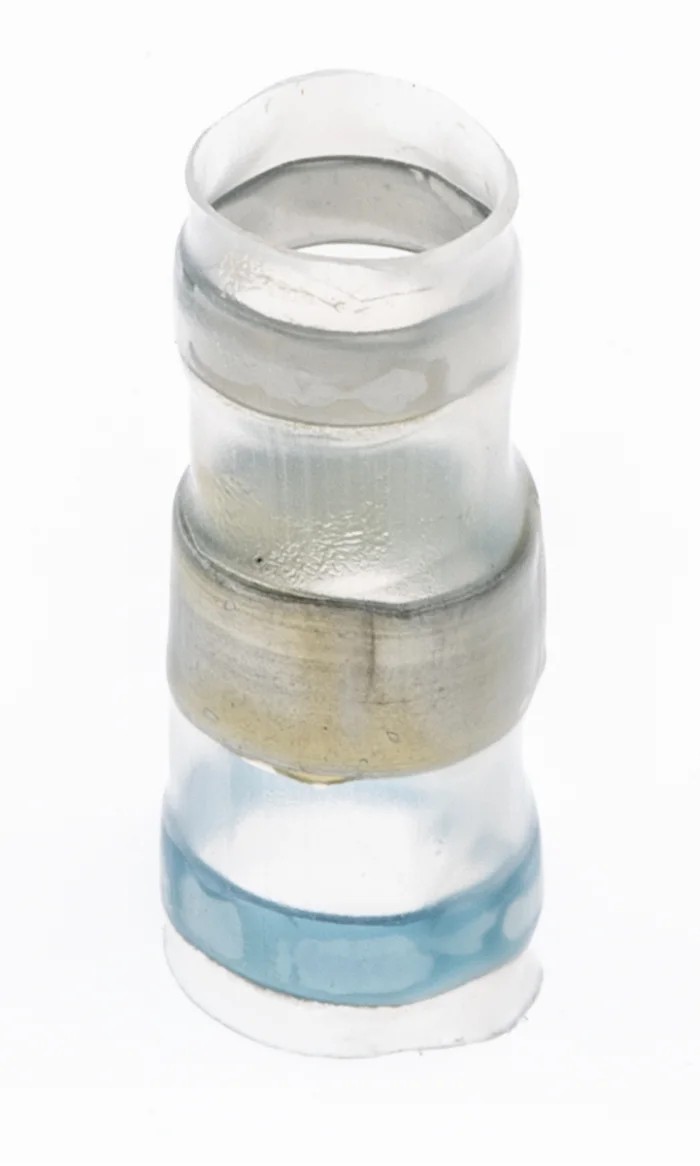

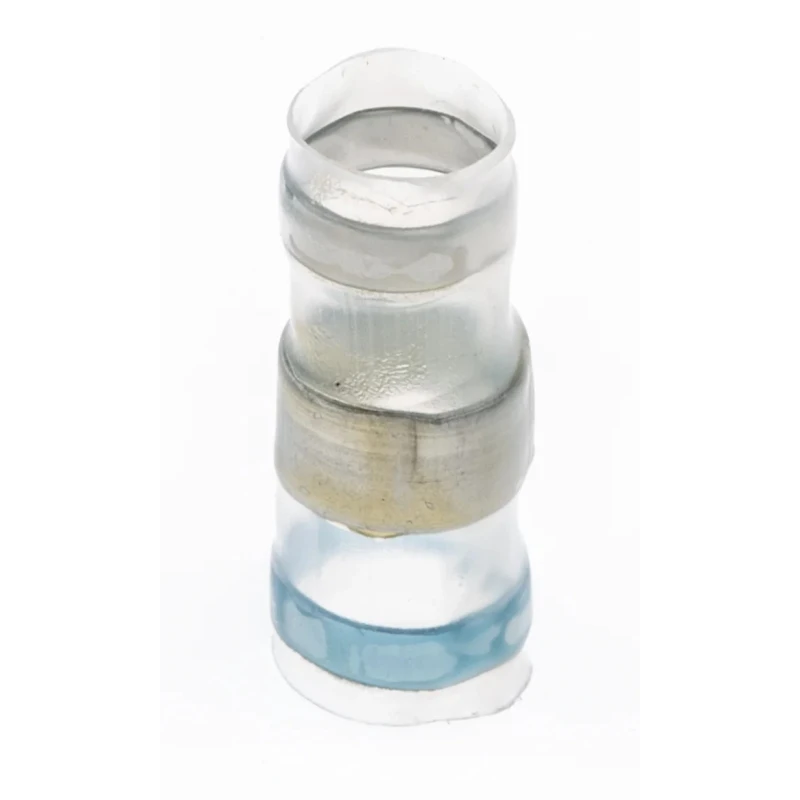

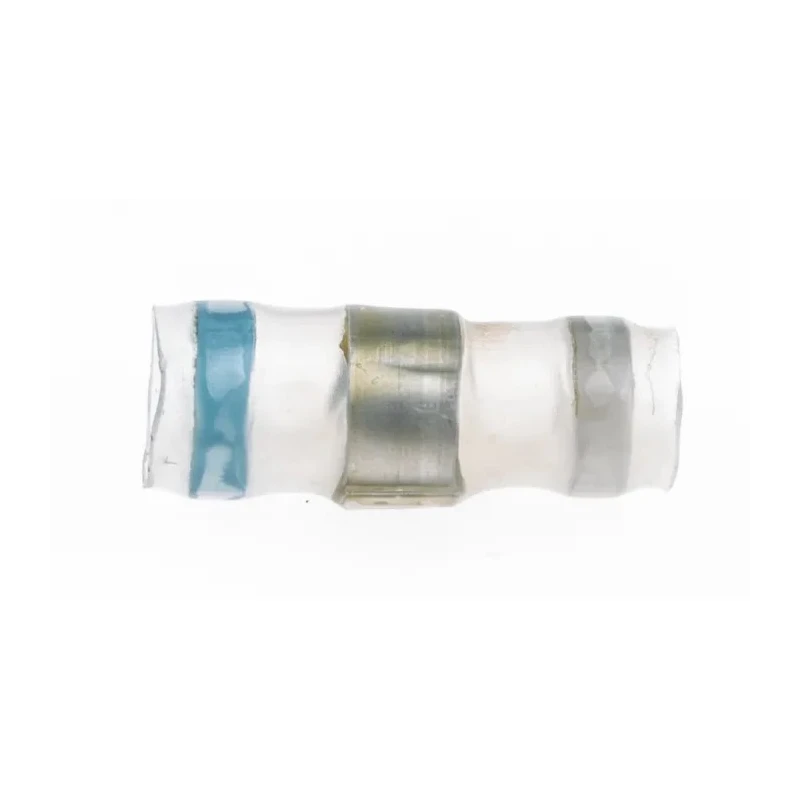

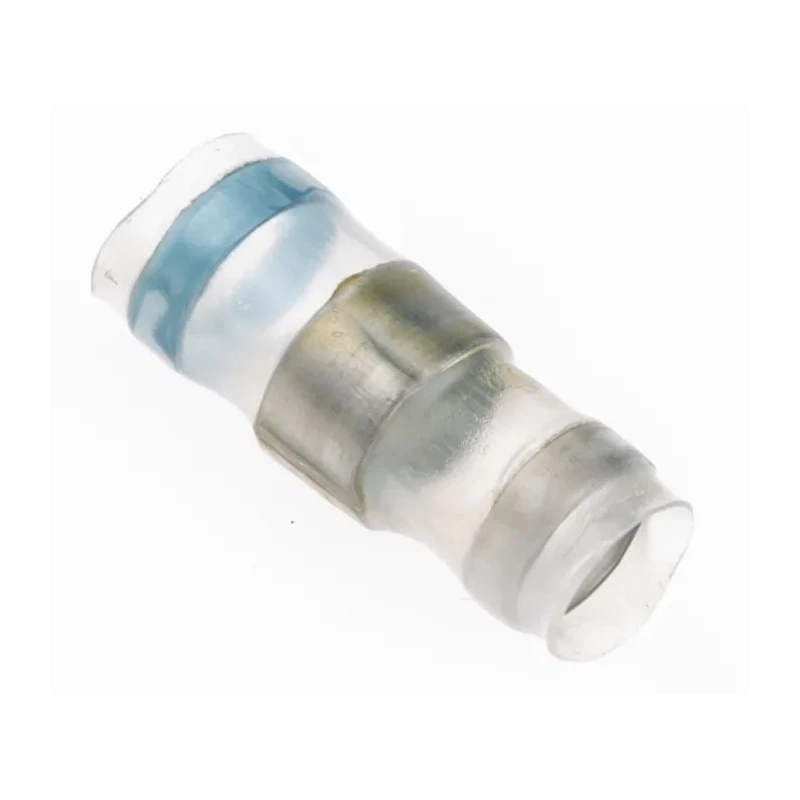

TE Connectivity Natural Polyvinyl Fluoride Solder Sleeve 19.05mm Length 5.08 mm Max Cable Diameter 2.54 mm Min D-142-51
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Material | Polyvinyl Fluoride |
| Colour | Natural |
| Model | D-142-51 |
| Series | D-142 |
| Maximum Operating Temperature | 105°C |
| Dielectric strength | 1kV |
| Sub Type | Terminator |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | ANSI J STD 004, ANSI J STD 006, Raychem Specification RT 1404, National Aerospace Standard NAS 1745 |
| Maximum Cable Diameter | 5.08mm |
| Minimum Cable Diameter | 2.54mm |
| Shrink Temperature | 85°C |
| Sleeve Length | 19.05mm |
Key Features
- Constructed from durable polyvinyl fluoride material providing excellent insulation.
- Features a clear natural color sleeve for easy inspection of soldering quality.
- Rated dielectric strength of 1 kV for reliable electrical isolation.
- Operates in temperatures ranging from -55°C to 105°C without performance loss.
- Complies with ANSI J STD 004, ANSI J STD 006, and Raychem RT 1404 standards.
- Offers easy heat-shrink installation at 85°C shrink temperature using standard hot air tools.
- Approvals include National Aerospace Standard NAS 1745 and MIL-STD-105 for military and aeronautic applications.
- Manufactured in Mexico ensuring consistent quality for industrial uses.
Product Description
TE Connectivity D-142-51 natural polyvinyl fluoride solder sleeve is engineered specifically for use as cable terminators accommodating cable diameters from 2.54 mm minimum to 5.08 mm maximum with a precise sleeve length of 19.05 mm. This solder sleeve combines reliable electrical insulation and mechanical protection for soldered connections in cables.
Crafted from polyvinyl fluoride, this material offers excellent dielectric properties and high chemical resistance, making it ideal for harsh electrical environments. The natural clear sleeve enables immediate visual verification of solder joint quality after installation.
The sleeve supports a dielectric strength rating of 1 kV and functions over an operating temperature range from -55°C up to 105°C, providing robustness for a variety of industrial, aerospace, military, and electronic applications. Shrinking the sleeve requires a controlled heating temperature of 85°C, achievable with standard hot air soldering equipment.
TE Connectivity has designed this D-142 series solder sleeve to fulfill rigorous standards including ANSI J STD 004, ANSI J STD 006, Raychem Specification RT 1404, and the National Aerospace Standard NAS 1745. These approvals exemplify its suitability for aerospace and defence implementations, ensuring mechanical stress resistance and electrical safety.
The compact terminal structure allows for easy creation of earth tags on screened cables, compatible even with heat-sensitive insulation materials encountered in sensitive assemblies.
Durable polyvinyl fluoride construction. Clear sleeve for quality inspection. Dielectric strength rated at 1 kV. Operating temperature range between -55°C and 105°C. Compliant with aerospace and military standards. Simple heat-shrink application at 85°C.
Compatible with screened cables and heat-sensitive materials. Manufactured under strict quality controls in Mexico.
This solder sleeve is ideal for electrical, automation, aerospace, and military industries requiring reliable splices and terminations with excellent mechanical protection and insulation properties.
For additional related products and cable sleeve solutions, explore the comprehensive TE Connectivity range available at EnvMart.
Explore more products in our Cable Sleeves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dielectric strength of this solder sleeve is rated at 1 kV, providing reliable electrical isolation for soldered connections.
This model operates within a temperature range of -55°C to 105°C without performance loss, making it suitable for various industrial applications.
The solder sleeve can accommodate cable diameters ranging from a minimum of 2.54 mm to a maximum of 5.08 mm.
The sleeve length of this model is 19.05 mm, designed specifically for effective cable termination.
It is constructed from polyvinyl fluoride, which provides excellent insulation and mechanical protection.
The solder sleeve requires a shrink temperature of 85°C for proper installation using standard hot air tools.
This model complies with ANSI J STD 004, ANSI J STD 006, Raychem Specification RT 1404, and the National Aerospace Standard NAS 1745.
It is manufactured in Mexico, ensuring consistent quality for industrial uses.
Yes, it is compatible with heat-sensitive insulation materials, making it suitable for sensitive assemblies.
This solder sleeve is ideal for electrical, automation, aerospace, and military industries requiring reliable splices and terminations.
The clear natural color sleeve allows for easy visual inspection of soldering quality after installation.
It is engineered specifically for use as cable terminators, providing reliable electrical insulation and mechanical protection for soldered connections.
