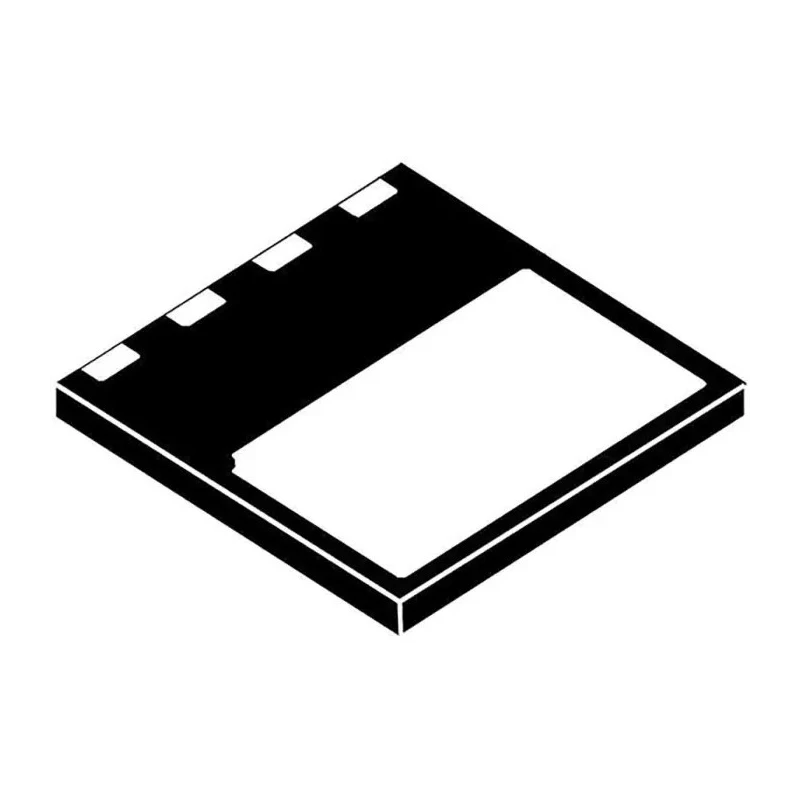

STMicroelectronics 650 V 8 A PowerFLAT 5-Pin Surface Mount Schottky Diode STPSC8H065DLF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.75mm |
| Length | 7.9mm |
| Model | STPSC8H065DLF |
| Width | 7.9mm |
| Mount Type | Surface |
| Series | STPSC |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerFLAT |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Peak Reverse Current Ir | 65μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 1.95V |
Key Features
- Surface mount PowerFLAT package ensures compact installation.
- Single diode configuration delivers efficient rectification.
- Peak non-repetitive forward surge current reaches 800 A for high surge capability.
- Excellent low forward voltage drop of 1.95 V for reduced power loss.
- Wide operating temperature range from -40°C to 175°C for reliable performance.
- High creepage and temperature-independent switching behavior enhance robustness.
- 5-pin configuration facilitates flexible circuit integration.
- Manufactured with silicon carbide substrate for ultra-high performance.
Product Description
The STMicroelectronics STPSC8H065DLF is a high-performance Schottky Diode designed with a silicon carbide substrate and housed in a low-profile PowerFLAT 5-pin surface mount package. Rated for a peak repetitive reverse voltage of 650 V and a continuous forward current of 8 A, this diode is suitable for demanding power electronics applications.
This diode features a low forward voltage drop of 1.95 V, which minimizes conduction losses, and supports a peak non-repetitive forward surge current of 800 A, enabling it to handle transient surges effectively. Its 5-pin configuration and compact dimensions (7.9 mm length, 7.9 mm width, and 0.75 mm height) allow for optimized PCB layout in space-constrained designs.
The device operates reliably over a broad temperature range from -40°C to 175°C, and its temperature-independent switching behavior along with high creepage distances ensure robustness in industrial, telecom, network, renewable energy, and power management systems. The STPSC8H065DLF is particularly well-suited for use in power rectification circuits requiring high efficiency and reliability.
Key features include a surface mount PowerFLAT package, single diode configuration, low forward voltage, and high surge current capabilities. It complies with no specific automotive or industry approvals but is engineered for high-quality performance in professional environments.
Surface mount PowerFLAT package provides low profile and reliable mounting. Silicon carbide substrate enables ultra-high performance and low forward losses. 650 V peak reverse voltage suitable for high voltage applications.
8 A continuous forward current for medium power requirements. 800 A peak non-repetitive forward surge current ensures surge robustness. Wide temperature operation from -40°C to 175°C for harsh environments. 5-pin configuration supports flexibility in circuit design.
This diode is ideal for industrial, telecom, renewable energy, and power supply applications where efficient rectification with low losses and high surge capability is critical. Equip your designs with the STPSC8H065DLF for reliable high-voltage diode performance.
Explore more semiconductor components and discrete diodes in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STPSC8H065DLF has a peak reverse repetitive voltage rating of 650 V, making it suitable for high voltage applications.
This diode supports a maximum continuous forward current of 8 A, allowing it to handle medium power requirements effectively.
It features a low forward voltage drop of 1.95 V, which helps minimize conduction losses during operation.
The diode can handle a peak non-repetitive forward surge current of 800 A, providing robustness against transient surges.
The STPSC8H065DLF operates reliably over a wide temperature range from -40°C to 175°C, suitable for harsh environments.
It is housed in a low-profile PowerFLAT 5-pin surface mount package, ensuring compact installation and optimized PCB layout.
The dimensions of the STPSC8H065DLF are 7.9 mm in length, 7.9 mm in width, and 0.75 mm in height.
This model utilizes a single diode configuration, which is common for efficient rectification applications.
The STPSC8H065DLF is manufactured with a silicon carbide substrate, enabling ultra-high performance and low forward losses.
It is particularly well-suited for power rectification circuits in industrial, telecom, renewable energy, and power management systems.
The STPSC8H065DLF has a pin count of 5, allowing for flexible circuit design integration.
The peak reverse current for this diode is specified at 65 μA, indicating its performance under reverse bias conditions.
