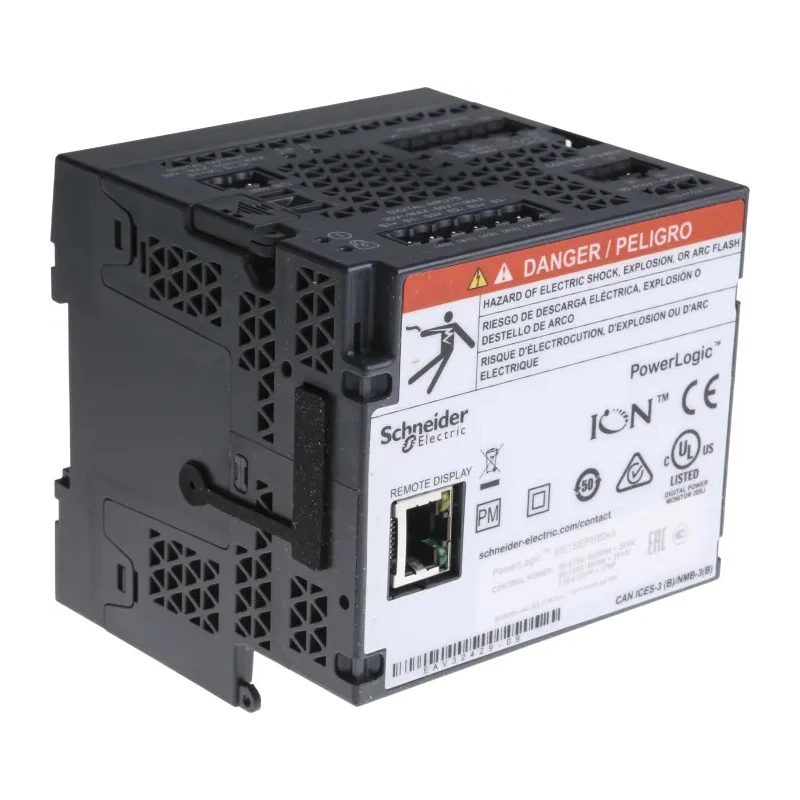

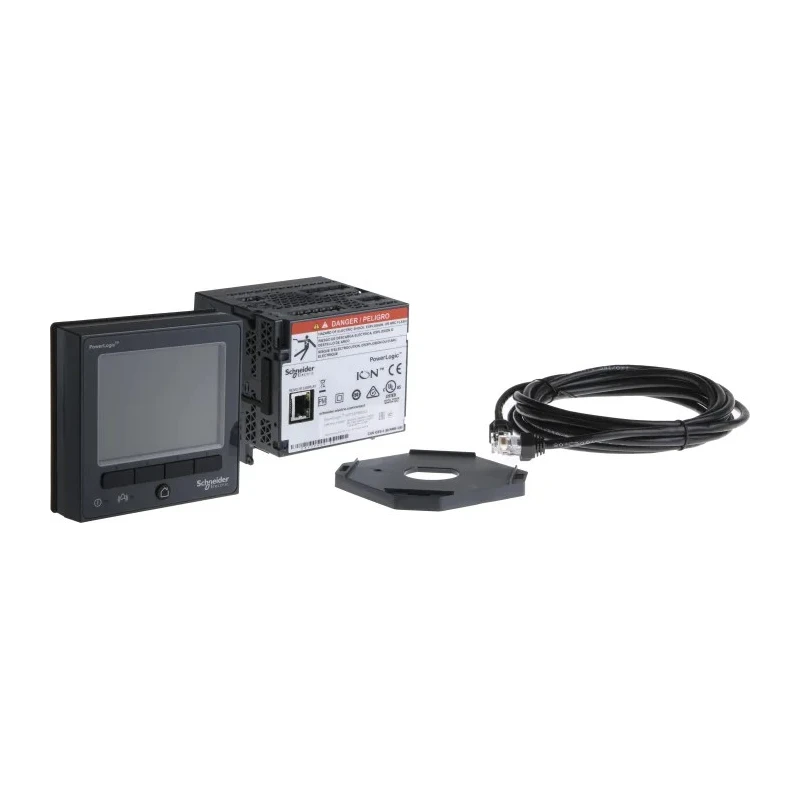

Schneider Electric 3 Phase Electromechanical LCD Energy Meter 90.5x90.5x90.8 mm PM8000 Series METSEPM8244

Schneider Electric METSEPM8244 is a 3 Phase Electromechanical LCD Energy Meter from the high-precision PM8000 Series designed for comprehensive industrial energy monitoring. This meter features a compact form factor with dimensions of 90.5mm by 90.5mm by 90.8mm, allowing easy panel installation. It offers detailed and accurate measurement with ±0.1% precision for voltage and current.

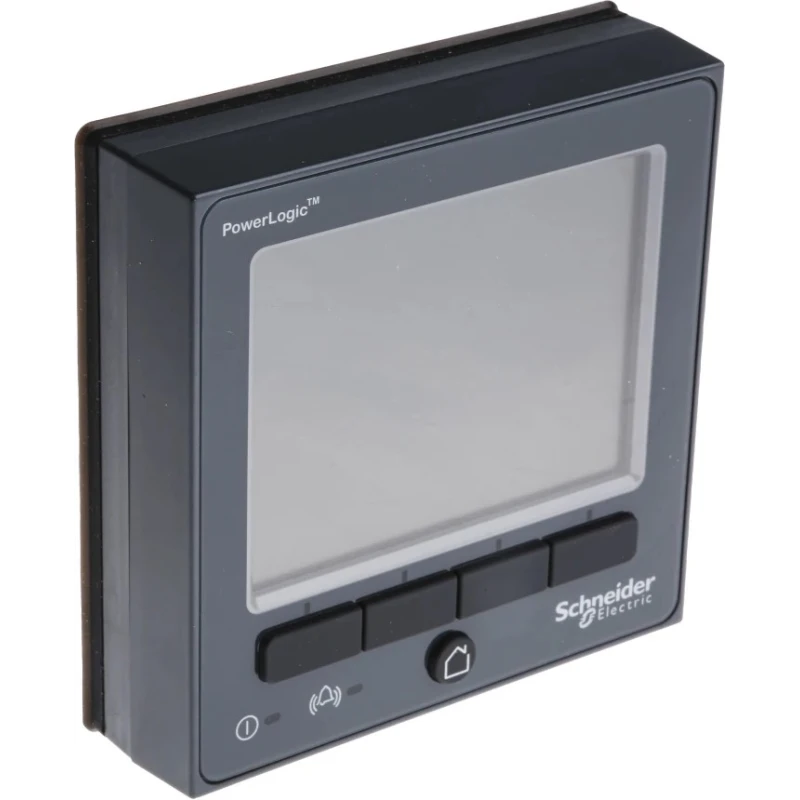

The device supports a wide voltage range of 100 to 690 V AC and current inputs from 50 mA to 10 A, making it adaptable to various industrial environments. The remote LCD display provides clear real-time visibility of energy consumption, voltage, and current parameters with an 85mm digit height enhancing usability.

Equipped with 6 inputs and 5 outputs along with pulse output functionality, this meter enables integration into advanced energy management systems. It operates reliably across a wide temperature span from -25°C to 70°C, suitable for diverse installation conditions. Rigorously tested and certified to multiple international standards such as CE, CSA C22.2 No 61010-1, UL 61010-1, IEC 61010-1, IEC 61557-12, IEC 62052-11, IEC 62053-22, IEC 62053-24 and others, this meter ensures compliance and safety.

This energy meter is ideal for applications including industrial power monitoring, power factor and reactive power analysis, power quality assessment, and regulatory compliance reporting. Its programmable logic and mathematical functions provide flexibility in customized energy analysis solutions.

This energy meter supports three-phase power monitoring with electromechanical meter type. The LCD provides clear visibility with a digit height of 85mm for easy reading. It features a compact design with cutout dimensions of 90.5mm height and width, and 90.8mm depth.

The meter includes 6 inputs and 5 outputs with pulse output capability for seamless integration. Operating temperature ranges from -25°C to 70°C, suitable for various industrial conditions. Compliance with multiple standards including CE, CSA C22.2 No 61010-1, UL 61010-1, and multiple IEC protocols ensures reliable quality.

The meter provides ±0.1% accuracy for energy measurements supporting voltage ranges from 100V to 690V AC. It is tailored for industrial energy management, power quality monitoring, and compliance reporting.

Schneider Electric products like the METSEPM8244 are trusted worldwide and widely used in manufacturing, water treatment, HVAC, commercial buildings, and other industrial sectors requiring precise energy metering. Browse the Energy Meter category at EnvMart to explore more certified metering solutions for your application needs.
