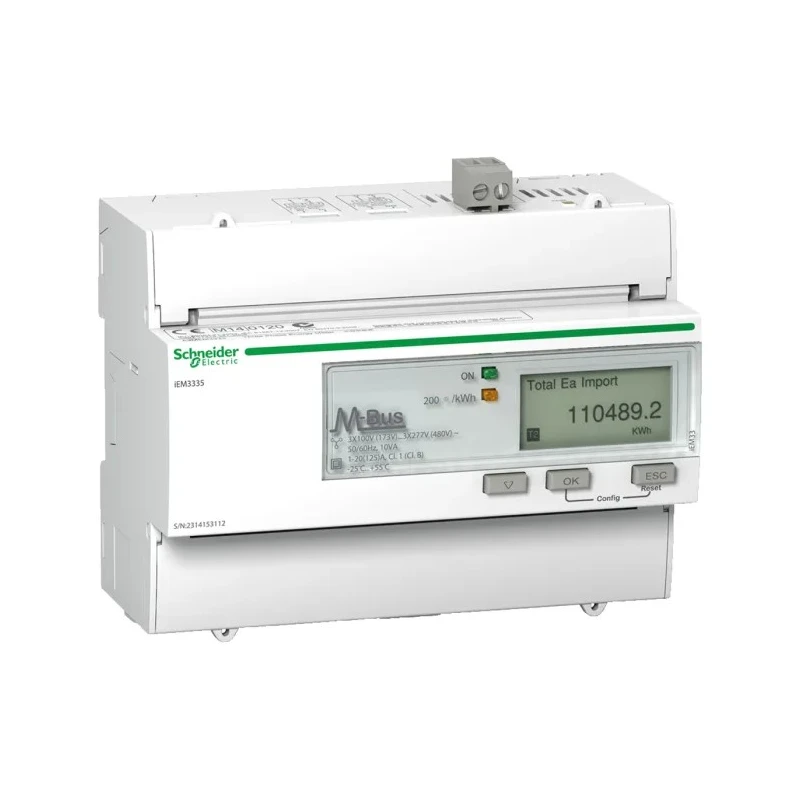

Schneider Electric 3 Phase Electronic LCD Energy Meter Acti9 iEM Series A9MEM3335

Schneider Electric A9MEM3335 is a 3 Phase Electronic LCD Energy Meter from the Acti9 iEM series, designed to provide accurate and detailed energy measurement for industrial and commercial applications. This meter features an LCD display with 9 digits and large 85mm digit height for clear visualization.

The meter supports one input and one output, with an included pulse output for interfacing with external devices. It operates with high precision, offering Class 1 accuracy according to IEC 61557-12 and IEC 62053-21 standards for active energy metering, and Class B accuracy compliant with EN 50470-3.

Designed for mounting on DIN rails, this meter's compact footprint includes a cutout height of 95mm and width of 90mm, with a depth of 69.3mm, making it suitable for modular electrical enclosures. It functions reliably in harsh environments with a wide operating temperature range from -25°C to 55°C. Comprehensive certifications such as CE, cULus, MID, and multiple IEC standards confirm its high quality and safety compliance.

The Acti9 iEM3000 series provides real-time measurements including voltage, current, power, and power factor, with support for multi-tariff functionalities and a built-in internal clock saving date and time details, even during power outages. This allows the device to support billing validation, sub-billing for tenants, and energy aggregation per area or shift in manufacturing and commercial settings.

Equipped with an LCD display supporting 9 digits and 85mm digit height. Supports three-phase measurement with one input and one output. Includes pulse output for integration with energy management systems. Class 1 accuracy ensures precise energy measurement and billing.

Durable design with wide temperature operating range from -25°C to 55°C. Compact DIN rail mounting dimensions: 95mm height and 90mm width cutout. Certified to multiple international standards including CE, MID, and IEC approvals.

Internal clock and multi-tariff support enable detailed energy usage tracking. Manufactured in China with high reliability and industrial-grade quality.

This Schneider Electric Energy Meter is ideal for industrial, commercial, and process control applications requiring reliable energy consumption and generation monitoring. It supports complex energy management schemes including multi-quadrant measurement of active and reactive energy. Explore more in the Measurement Instruments category at EnvMart for comprehensive energy solutions.
