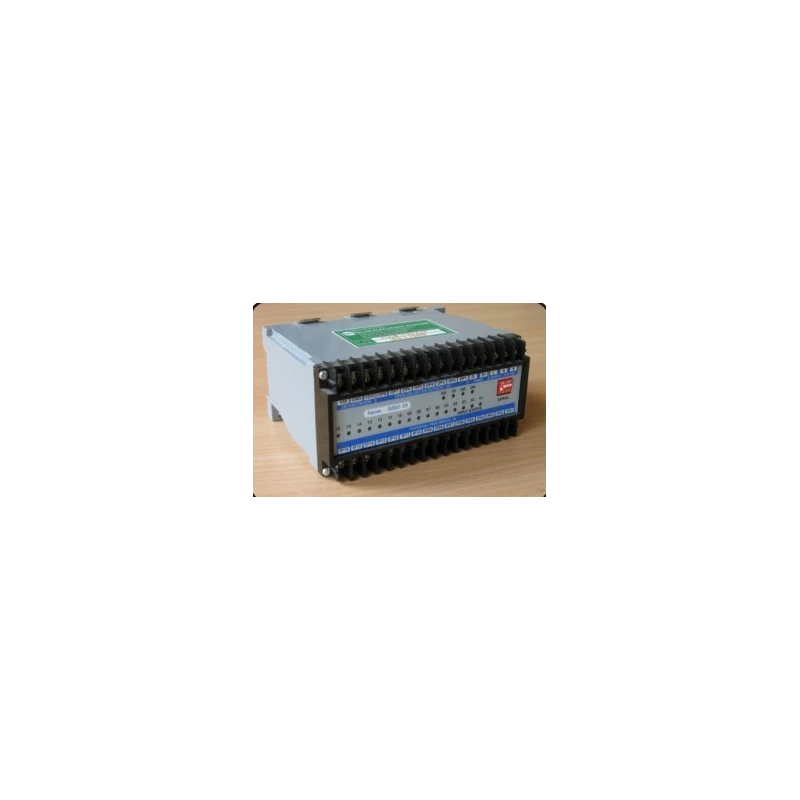

Digital Input & Digital Output DIDO 24
Specifications
| Supply Voltage (V) | 230 VAC 10% 1ph 50 Hz |
|---|---|
| Enclosure | DIN rail mount ABS moulded 32 terminal box Siz 0 x 150 x 114 mm ( H x W x D ) |
| Storage conditions | Storage Temperature -10 to 70 degreeC ambient. |
| Type of output | Open Collector o/p. Optional relay o/p through external relay card. |
| Indications | 3mm LED indications for power ON System OK Tx Rx & all input(16 nos.) & output status.(8 nos.) |
| Operating Conditions | Operating Temperature 5 to 55degreeC ambient |
| Communication Port | RS485 2 wire Modbus RTU Protocol |
| Types of Input | Potential free input or 24VDC level input |
| No. of Outputs | 8 |
| Input Isolation in Volt | 1 KVDC |
| Excitation Supply | External 24VDC Required |
| Baudrate Databits Parity | Baud rate Equal to 9600/19200 BPS -Greater Than Settable at power ON from 4 way DIP switch.By default setting -Greater Than Data bits Equal to 8 Stop bit Equal to 1 Parity- none.Station ID 1 TO 8 Settable from DIP switch on-line. |
| Max. polling frequency | MODBUS polling time - 10ms |
| No. of Inputs | 16 |
Key Features
- Ruggedised, State-of-the-art Micro-controller based system.
- Ideal for SCADA Applications.
- Optical isolation for input / output
- Serial communication on RS485 with MODBUS RTU protocol.
Product Description
Falcon DIDO24, Digital Input/output module with RS485 Connectivity Which Is Best Suitable For SCADA. This Module Can Also Be Used As a Slave Module With PLC. Digital Inputs are Optically isolated inputs and accept potential free contact signals. These modules can be Used For Sensing Level Switches, Proximity Switches, Door Switches, Alarm/Trip Conditions In the Panel, Pump/motor status, equipment status, etc.Digital Outputs are optically isolated open collector outputs to drive the external relay modules. These outputs can be used to perform supervisory control actions like giving alarms, operating valves, switching ON/OFF pumps/motors, etc.These modules use MODBUS RTU protocol for serial communication. RS485 serial port is provided to make the modules suitable for multi-dropping applications.DIP switch is provided for ID and baud rate settings used for serial communication. There are 4 LED indications for system OK, Power, and Serial communication status which helps for correct diagnostics of the Operations.24VDC @ 100mA Supply Is Provided In The Module For external Excitation.DIN Rail mounting makes it easy to be fitted into the panel.The module operates on a 230VAC supply.
- 24VDC @ 100mA supply provided for external excitation.
- Standard DIN rail mounting ABS moulded cabinet.
