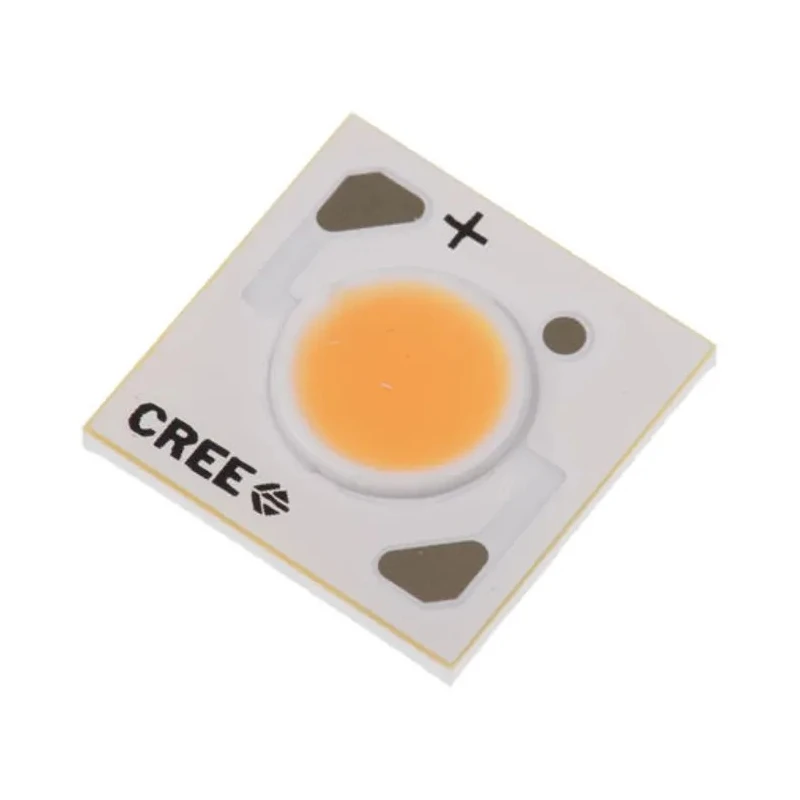

Cree LED CXA White CoB LED 2700K 80% CRI, 423lm Luminous Flux, 36V Forward Voltage CXA1304-0000-000N00B227F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | CXA1304-0000-000N00B227F |
| Packaging | Tray |
| Series | CXA |
| Maximum forward current | 1000mA |
| Viewing angle | 115 ° |
| Standards/Approvals | REACH, NEMA SSL-3 2011, RoHS, UL (E349212) |
| Colour Temperature | 2700k |
| LED Colour | White |
| Forward Voltage | 36V |
| Radiant Flux | 10.9W |
| Colour Rendering Index CRI | 80% |
| Typical Luminous Flux | 423lm |
| Optical Source Diameter | 6mm |
Key Features
- Compact multi-die LED array designed for high-flux output within a single package.
- Operates at a maximum forward current of 1000mA ensuring efficient power performance.
- Features a wide viewing angle of 115 degrees for uniform light distribution.
- Top-side solder connections simplify integration without the need for reflow soldering.
- Complies with standards including REACH, NEMA SSL-3 2011, RoHS, and UL for quality assurance.
- Offers a forward voltage of 36V suitable for various lighting applications.
- Designed for both directional and non-directional lighting solutions including lamp retrofit and luminaires.
- Has a compact 6mm optical source diameter optimizing space in applications.
Product Description
Cree LED CXA1304-0000-000N00B227F is a high-flux, multi-die white CoB (Chip on Board) LED array that provides 423 lumens luminous flux with a warm color temperature of 2700K and an 80% color rendering index. This LED array operates efficiently with a maximum forward current of 1000mA and a forward voltage of 36V. It features a 6mm optical source diameter and a wide 115-degree viewing angle that ensures broad, uniform light distribution.
The CXA1304 series is engineered for easy integration without reflow soldering due to its top-side solder connections and includes a thermocouple attach point for temperature monitoring. It meets various international standards such as REACH, NEMA SSL-3 2011, RoHS, and UL (E349212), guaranteeing environmental and safety compliance.
This LED array is ideal for small-form-factor lighting applications, including lamp retrofits and luminaires, well suited for both directional and non-directional lighting needs. Its compact design and high luminous efficacy make it suitable across industrial, commercial, and possibly residential lighting sectors.
Compact multi-die LED array designed for high-flux output within a single package. Operates at a maximum forward current of 1000mA ensuring efficient power performance. Features a wide viewing angle of 115 degrees for uniform light distribution.
Top-side solder connections simplify integration without the need for reflow soldering. Complies with standards including REACH, NEMA SSL-3 2011, RoHS, and UL for quality assurance. Offers a forward voltage of 36V suitable for various lighting applications.
Designed for both directional and non-directional lighting solutions including lamp retrofit and luminaires. Has a compact 6mm optical source diameter optimizing space in applications.
Cree LED products like the CXA1304-0000-000N00B227F facilitate efficient lighting solutions in electronics and electrical systems, applicable in industrial lighting and electronics manufacturing environments. Explore more LED Lighting Components and solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a typical luminous flux of 423 lumens, making it suitable for various lighting applications.
The forward voltage of the CXA1304 is 36V, which is suitable for a range of lighting solutions.
It operates at a maximum forward current of 1000mA, ensuring efficient power performance.
This LED array has a color temperature of 2700K, providing a warm light suitable for various settings.
It features a wide viewing angle of 115 degrees, allowing for uniform light distribution.
The CXA1304 complies with REACH, NEMA SSL-3 2011, RoHS, and UL (E349212) standards, ensuring quality and safety.
The optical source diameter is compact at 6mm, optimizing space in various applications.
This model has a radiant flux of 10.9W, indicating its efficiency in light output.
It features top-side solder connections, simplifying integration without the need for reflow soldering.
This model is designed for both directional and non-directional lighting solutions, including lamp retrofits and luminaires.
The CXA1304 has an 80% color rendering index (CRI), which helps in accurate color representation.
The country of origin for this model is China.
