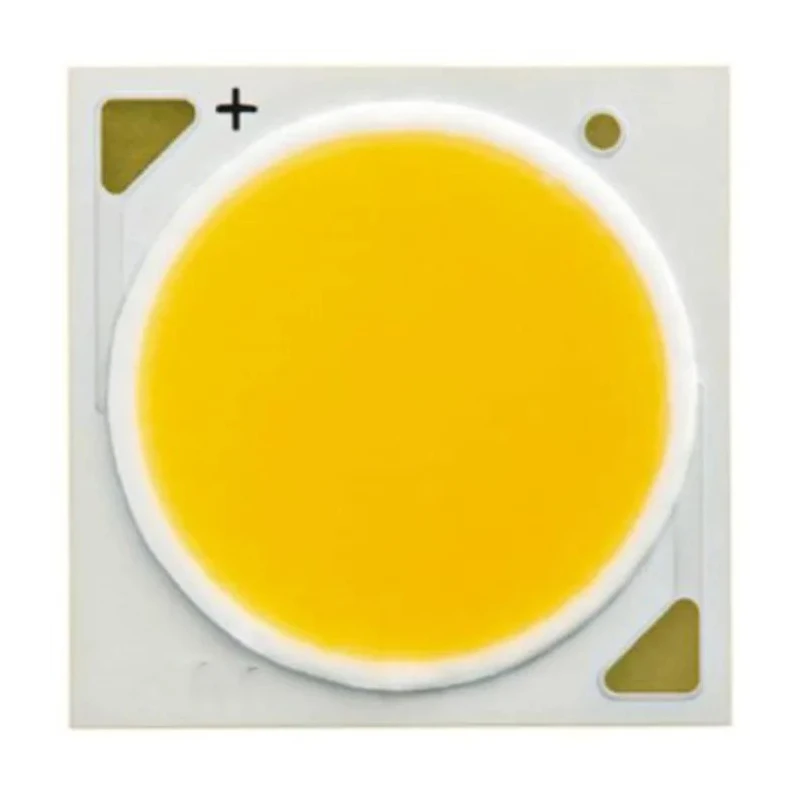

Cree LED CXA White CoB LED 3000K 90% CRI 36V 65W CXA2530-0000-000N00T230G

Cree LED CXA2530-0000-000N00T230G White CoB LED 3000K 90% CRI is a high-performance LED array designed for advanced lighting applications requiring high luminous flux and color accuracy. Operating at 36V forward voltage and capable of a maximum forward current of 1600mA, this LED ensures powerful and efficient operation with a radiant flux of 65 watts.

The 19mm optical source diameter provides a uniform emitting surface, making it suitable for directional and non-directional lighting solutions. This LED features a wide 115° viewing angle and maintains excellent color consistency with a 90% CRI rating, producing warm white light at a 3000K color temperature, ideal for commercial and residential lighting projects.

Constructed by Cree LED, the CXA2530 series is recognized for its reliability and high efficacy. It meets multiple industry standards including REACH, NEMA SSL-3 2011, RoHS, and UL (E349212), ensuring compliance and durability in various environments. The compact size, with dimensions of 23.85 mm length and 21 mm width, allows versatile integration into LED lighting fixtures.

This product is manufactured in China and targets applications in industrial, commercial, retail, and architectural lighting sectors. Its robust design supports high current drive and thermal management through a top-side solder connection and thermocouple attachment point.

Typical luminous flux output of 3609 lumens ensures bright illumination. Maximum forward current rating of 1600mA supports high power operation. Optical source diameter of 19mm creates uniform light delivery. Color temperature at 3000K delivers warm white light suitable for indoor use.

Radiant flux of 65W enables efficient energy consumption. Wide viewing angle of 115 degrees offers broad light dispersion. High color rendering index (CRI) of 90% ensures accurate color representation. Forward voltage of 36V optimized for consistent electrical performance.

Compact dimensions with length 23.85mm and width 21mm facilitate versatile mounting. Conforms to standards including REACH, NEMA SSL-3 2011, RoHS, and UL certification. Explore Cree LED Lighting Components on EnvMart for reliable, high-quality solutions suited to modern LED lighting technologies across multiple industries.
