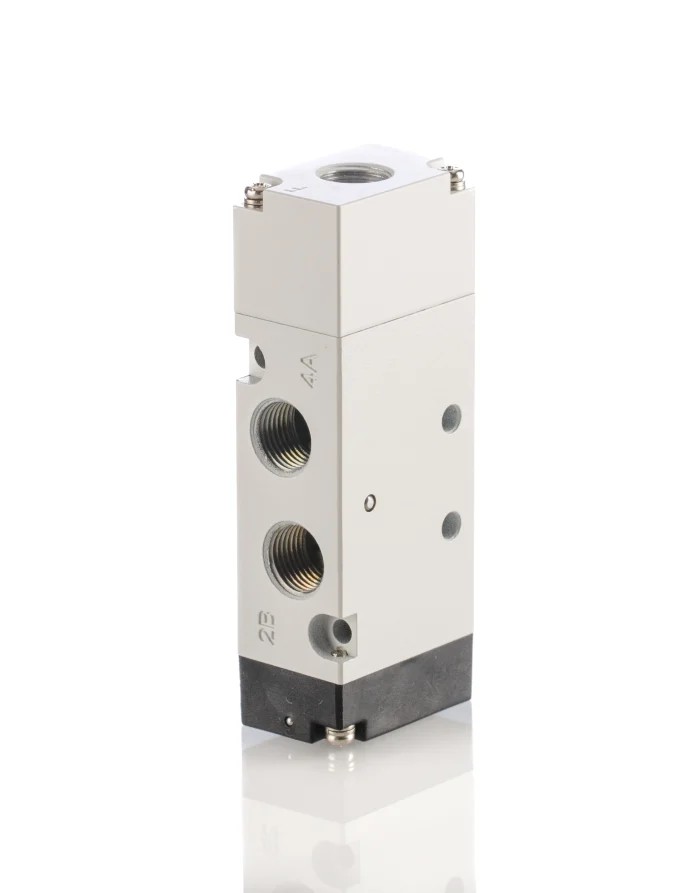

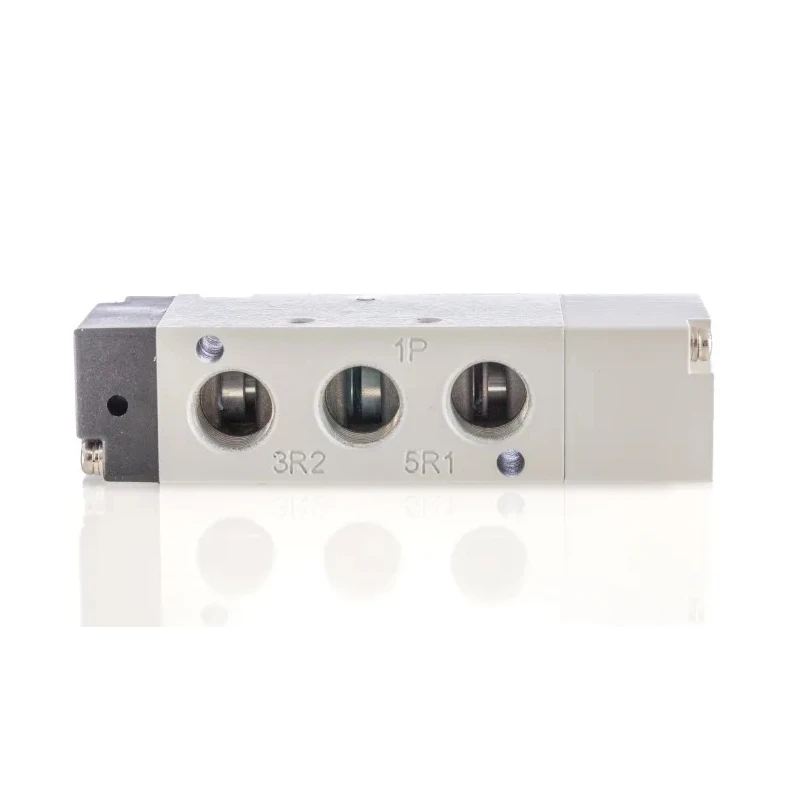

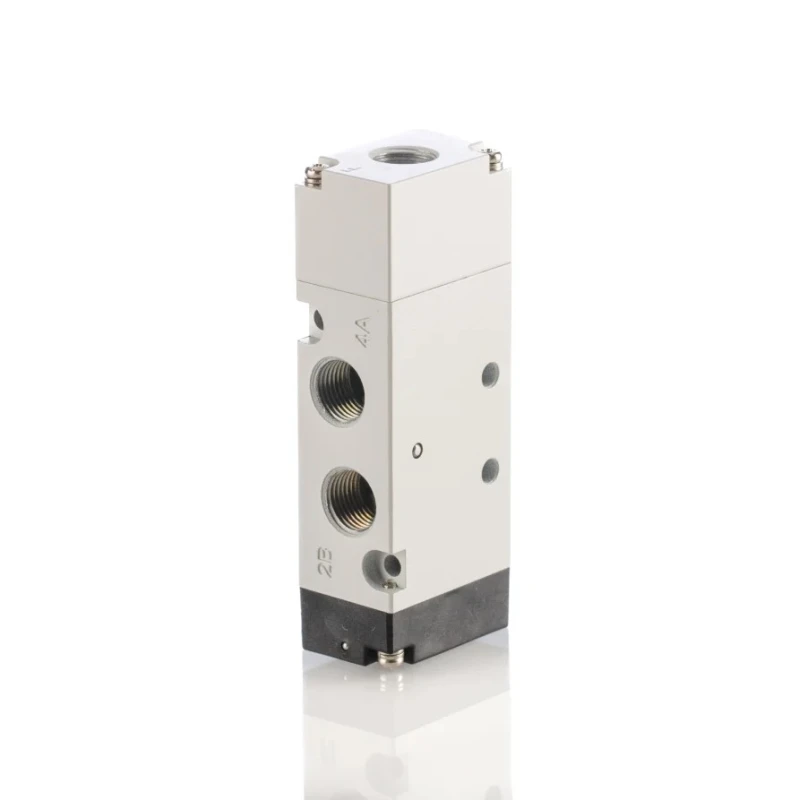

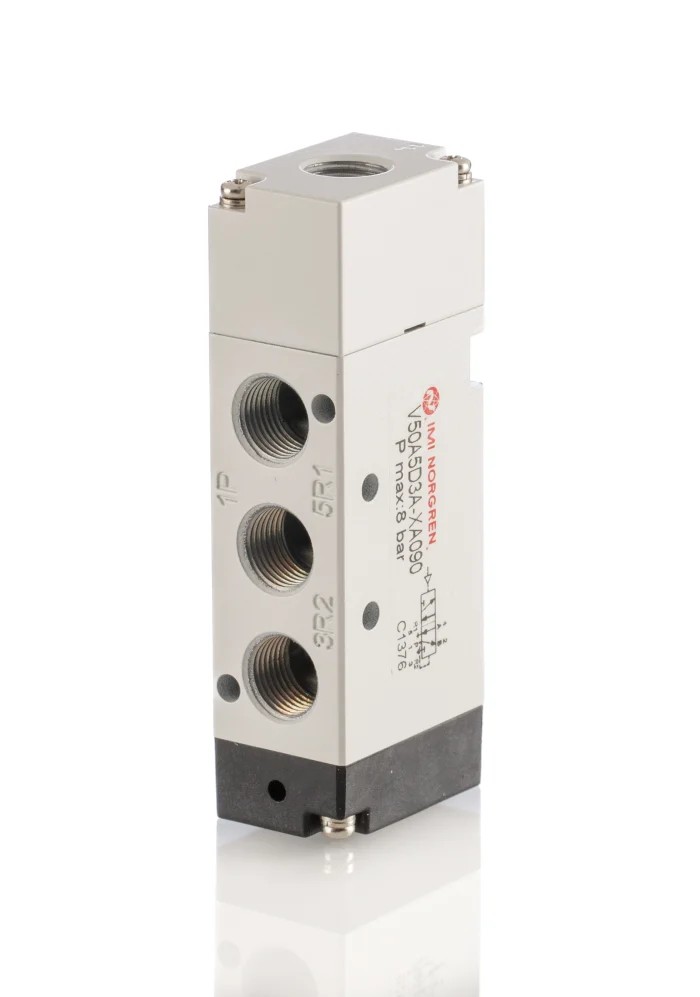

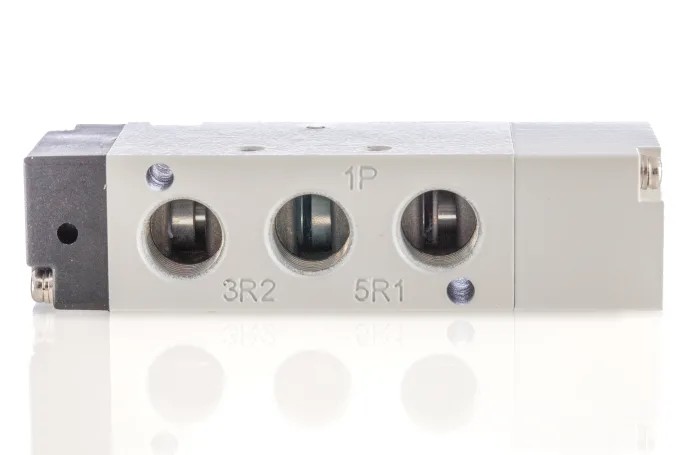

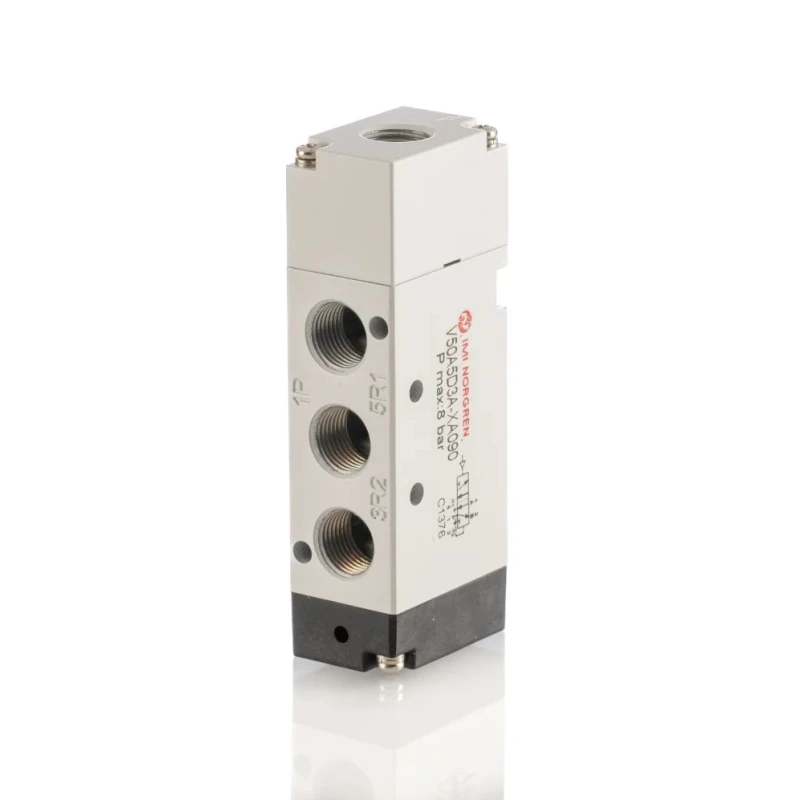

RS PRO Pneumatic Distributor Pilot/Spring Actuation G 1/8 Port Size, 5 Ports, 8 bar Pressure, Die Cast Aluminium 907-6403

RS PRO 907-6403 Pneumatic Distributor with pilot/spring actuator is engineered for robust and reliable pneumatic valve control in industrial applications. Featuring a compact inline design, this 5/2 valve configuration enables precise management of air flow in pneumatic systems. It offers five ports and two positions, facilitating control and switching functions essential for mechanical, fluid power, and automation setups.

The distributor utilizes a die cast aluminium body material that combines strength with corrosion resistance, ensuring long service life in demanding environments. It supports a maximum operating pressure of 8 bar and a maximum flow rate of 480 L/min, accommodating a wide range of pneumatic applications including manufacturing automation and fluid power control.

With a minimum pilot pressure of 0 bar, this valve can operate effectively in various system configurations. The operating temperature range from -5°C to 60°C makes it suitable for both indoor and outdoor industrial settings. The G 1/8 connection thread standard ensures compatibility with common threaded pneumatic fittings, simplifying installation and integration.

The actuator uses a pilot/spring mechanism for reliable and responsive valve function. This model is part of the RS PRO series, known for quality and performance in pneumatic and hydraulic tools.

Applications include industrial automation, pneumatic equipment, manufacturing machinery, fluid power systems, and other pneumatic control environments requiring durable and precise valve solutions.

Constructed with die cast aluminium for durability and corrosion resistance. Operates at a maximum pressure of 8 bar for robust pneumatic control. Features 5 ports with 2 valve positions in a 5/2 valve function design. Supports air flow of up to 480 L/min for efficient pneumatic system operation.

Wide operating temperature range from -5°C to 60°C suitable for diverse environments. Compact inline design with pilot/spring actuation for reliable valve control. Standard G 1/8 thread size for easy integration into pneumatic systems.

Manufactured in the United Kingdom ensuring quality assurance. Explore more pneumatic distributors and control valves in the Pneumatic Valves category at EnvMart for comprehensive fluid power solutions.
