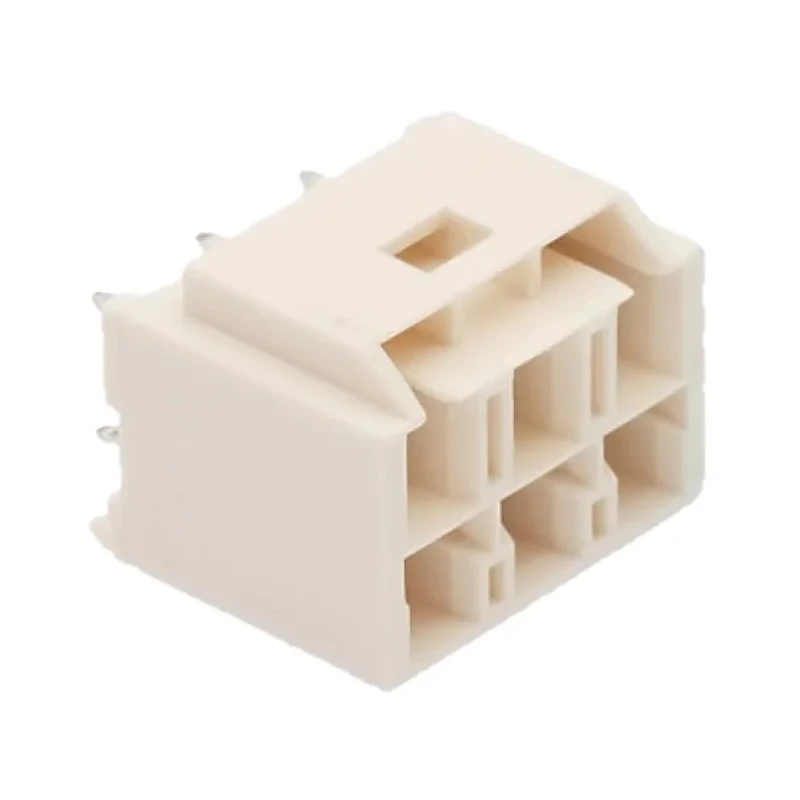

Molex CP-6.5 Series Straight Through Hole Wire-to-Board PCB Header, 6 Contacts, 6.5 mm Pitch, 2 Row, Shrouded 151048-1611

Molex 151048-1611 CP-6.5 Series Straight Through Hole PCB Header is a 6-contact, 2-row, shrouded wire-to-board connector designed for industrial and consumer electronics applications. It operates at up to 600 volts and 10 amps current, with a reliable copper alloy contact material and tin plating for enhanced conductivity and corrosion resistance.

The housing material is polyamide and includes color coding for foolproof identification of mating counterparts. The connector's positive lock mechanism emits an audible click upon full mating, ensuring secure and precise connections.

The solder tails have a 3.8 mm length with a kinked design to maintain firm PCB retention during solder reflow and wave soldering processes rated up to 260°C. The connector is suitable for high temperature SMT assembly and compatible with conformal coatings due to the absence of drain holes.

Operating temperature range from -40°C to 105°C supports demanding environments. It is typically used in various applications including consumer appliances like washing machines and air conditioners, as well as industrial control systems, HVAC equipment, copiers, vending machines, and security systems.

These headers are designed to mate perfectly with Molex CP-6.5 151049 series receptacle housings, providing versatile and dependable wire-to-board solutions. Manufactured in India, this product ensures quality and reliability expected from Molex.

The connector housing is made of durable polyamide material. It features 6 copper alloy male contacts with tin plating. The pitch between contacts is 6.5 mm, with two rows configured straight orientation. The termination type is solder through-hole mount for PCB assembly.

The product meets no specific standards or approvals but is widely accepted in industrial applications. Operating temperature range is -40°C to 105°C, suitable for diverse environments. The design includes a positive locking mechanism with an audible click for mating confirmation.

Connector supports up to 600V and 10A electrical ratings. Manufactured in India ensuring local quality standards. Explore the range of Molex PCB Headers and connectors for your electronic design and manufacturing needs at EnvMart.
