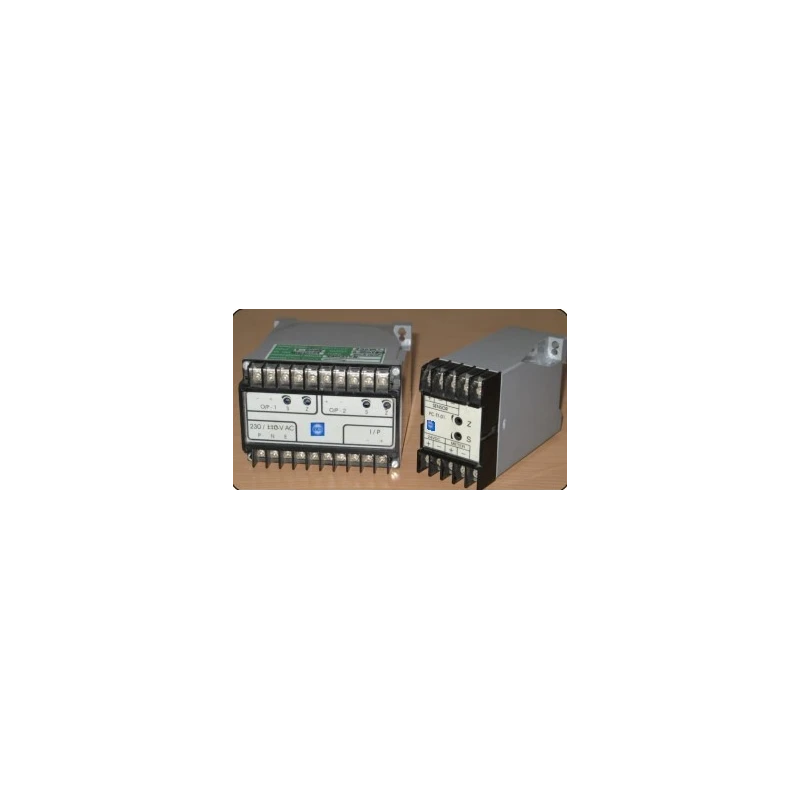

Signal Isolator PC-ISO

Name: Signal Isolator PC-ISO
Brand: ESPL
SKU: ABNTU
Price: 46.62 USD
Availability: InStock



SKU ABNTU Category Isolators Brand ESPL Condition New

Specifications

Accuracy	0.3 % of FSR
Output	4- 20 mA or 0-20 mA (load 600 ohms max.) 1-5 VDC/ 0-10 VDC (5mA max.) Loop burden 250 ohms for Loop Powered Isolator.
Operating Temp.	5 to 55C
Input	4- 20 mA or 0-20 mA Frequency or AC/DC voltage or AC current through C.T. or RTD Pt100
Isolation	1.5 kV peak 500 V for loop powered
Supply	230VAC / 110VAC 10 % 24 VDC 300 mA
Cabinet	DIN rail mount / Back of panel field mounting weather proof
Options	24VDC 30mA Tx Supply
No. Of output Channels	45383
Amb. Temp. Effect	300ppm

Key Features

Ruggedised, field proven performance with complete design flexibility.
Multiple options for types of Input & Output.
Single / Multichannel output.
1.5 kV peak isolation between i/p and o/p as well as Between outputs.

Product Description

The Signal Isolator model PC-ISO is a highly reliable, accurate input-output isolator with a fully flexible design approach. PC-ISO accepts AC/DC voltage or, AC/DC currents as input and provides output in the form of DC current or voltage in any specified range (standard range is 4-20mA). Rugged electronics of PC-ISO Signal Isolator provide galvanic and optical isolation of 1.5 which is 3 to 4 times higher than conventional isolators. The isolation is provided between input and output and between outputs in case of multioutput versionsPC-ISO is available in 1 input- 1 output to 1 input- 4 output configurations. A transmitter power supply of 24VDC, 30mA is available as an option. Thus in the case of loop-powered transmitters, the need for a separate power supply pack is eliminated.PC-ISO is also Available in loop powered version Loop powered isolator extracts power from loop kV and provides the 4-20mA signal. Unit is ideal to save wiring costs.

Multiple functions - signal conversion, signal isolation, signal repeator.
Loop powered version available.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Signal Isolator PC-ISO provides 1.5 kV peak isolation between input and output, as well as between outputs in multi-output versions.

It accepts 4-20 mA or 0-20 mA signals, as well as AC/DC voltage or AC current through current transformers (C.T.) or RTD Pt100.

The output can be configured for 4-20 mA, 0-20 mA (with a maximum load of 600 ohms), or 1-5 VDC/0-10 VDC (with a maximum current of 5 mA).

The accuracy of the Signal Isolator PC-ISO is 0.3% of full-scale range (FSR).

The operating temperature range for the PC-ISO is from 5 to 55 degrees Celsius.

It can be powered by 230VAC, 110VAC (±10%), or 24 VDC with a current of 300 mA.

This model can be mounted on a DIN rail or at the back of a panel for field mounting, and it is designed to be weatherproof.

The loop burden for the loop powered isolator is 250 ohms.

The PC-ISO is available in configurations ranging from 1 input-1 output to 1 input-4 output channels.

The ambient temperature effect is specified at 300 ppm.

Yes, there is an option for a 24VDC, 30mA transmitter power supply, which eliminates the need for a separate power supply pack for loop-powered transmitters.

This model can perform multiple functions including signal conversion, signal isolation, and signal repetition.
