Prismatic
Specifications
| Response time | Preset to Less Than 1 S |
|---|---|
| Indication | LEDs| Yellow for status| Blue for Normal and Red for Alarm |
| Ambient Temperature (ºC) | -20 ºC to 60 ºC |
| Housing | Stainless Steel SS316 |
| Ingress Protection | IP68 |
| Process connection | 1/2 BSP / NPT| other on request |
| Input Supply | 15....30 V DC |
| Output type | PNP open collector standard |
| Medium temperature | -20 to 80 C |
| Fail safe | High / Low selectable |
| Measuring Accuracy | + - 0.5 mm |
| Light Guide | Polycarbonate / Polysulfone |
| Minimum distance from Prism apex to opp. surface | Greater Than Equal to 10mm |
| Max circuit current | Less Than 15 ma| reverse polarity protected |
| Output Active | Max 100 mA momentary short circuit protected |
Key Features
- Compact design, no moving parts.
- No calibration required
- Selectable Fail-Safe mode for High or Low level Alarm
- Built in level status, Alarm and Normal indicators.
- Pulsed light operation for high ambient light immunity
Product Description

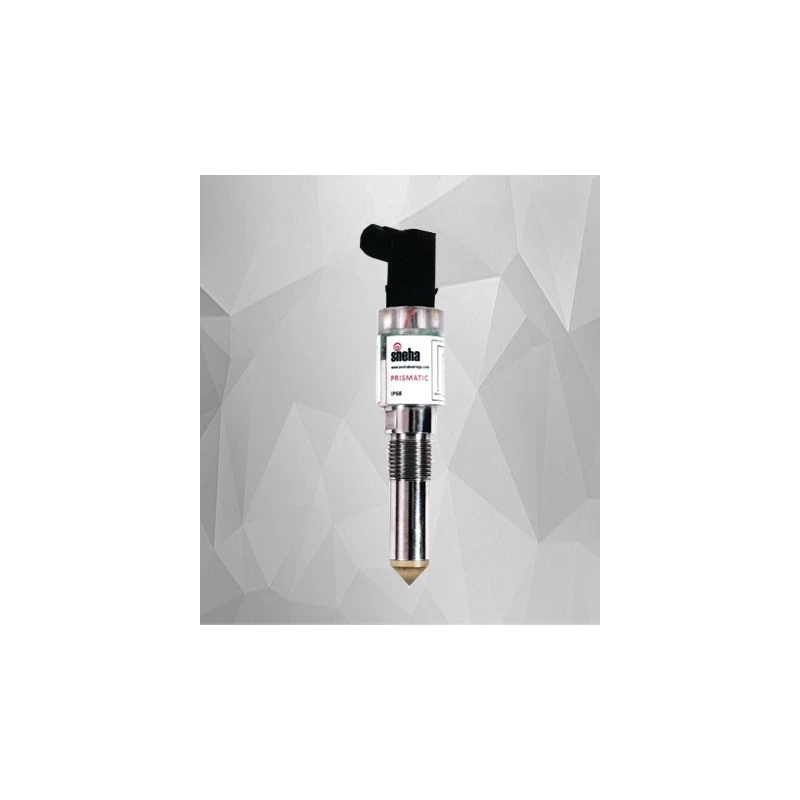

PRISMATIC..... Series instruments are suitable for the detection of liquid level in small vessels where space is limited. Level detection is unaffected by electrical and physical parameters of the media such as conductivity, dielectric constant, density, viscosity, air bubbles, color and refractive index. It is very compact and fits in constrained spaces. It is unaffected by vapors and can be easily removed, cleaned and re-installed. It has no moving parts and can be used for the detection of level in chemical and Pharmaceutical industries, food processing, beverages, breweries, hydraulic fluids, oils, water and aqueous media.
- Open Collector PNP Transistor output for connecting to PLC or external relay
- Variety of models available to cater to different applications
