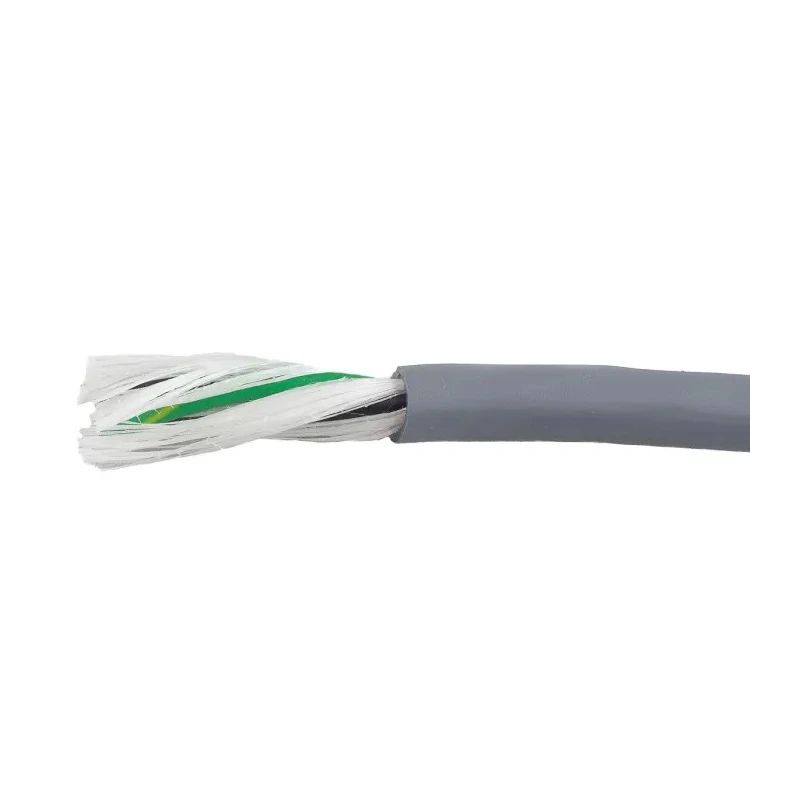

Alpha Wire Ecogen Ecoflex PUR Control Cable 3 Cores 1.33mm² 16AWG Unscreened 600V 30m 80042 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 80042 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecoflex PUR |
| Outside diameter | 6.12mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 16AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 65 |
| Core Strands | 65 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 1.33mm² |
Key Features
- The cable jacket is made of grey modified polyphenylene ether providing abrasion, UV, and oil resistance.
- It operates safely at voltages up to 600V with temperature ratings from -50°C to +90°C.
- The cable length is 30 meters, featuring 65 strands of 0.16mm diameter to ensure excellent flexibility.
- Ecoflex PUR cables are halogen-free, environmentally friendly, and 100% recyclable.
- Designed for use in industrial machinery, robotics, medical, automotive, mining, and outdoor applications.
- Unscreened construction is ideal for low noise environments where electromagnetic interference is minimal.
- The combination of PUR and mPPE insulation enables a thinner, lighter cable than conventional PVC wires.
Product Description
Alpha Wire 80042 SL005 Ecogen Ecoflex PUR Control Cable is a high-performance unscreened control cable with 3 cores, each having a conductor size of 1.33mm² (16 AWG). It features stranded tin copper conductors with 65 strands of 0.16mm diameter providing excellent flexibility and connectivity in demanding industrial environments.
The cable jacket is crafted from grey modified polyphenylene ether (mPPE), combined with a polyurethane (PUR) outer jacket, ensuring superior abrasion, UV, and oil resistance. This construction enables the cable to withstand extreme temperatures ranging from -50°C to +90°C safely. It is halogen-free, free of phthalates, and fully recyclable, making it environmentally responsible.
The Ecoflex PUR series cables from Alpha Wire are especially suitable for use in machine tools, robotic applications, medical equipment, mining, automotive, and assembly lines due to their mechanical strength, lightweight nature, and excellent dielectric properties.
This 30-meter length cable supports a voltage rating of 600V and complies with internationally recognized safety standards including CE, CSA, and UL. Its unscreened design makes it ideal for environments with low electromagnetic interference.

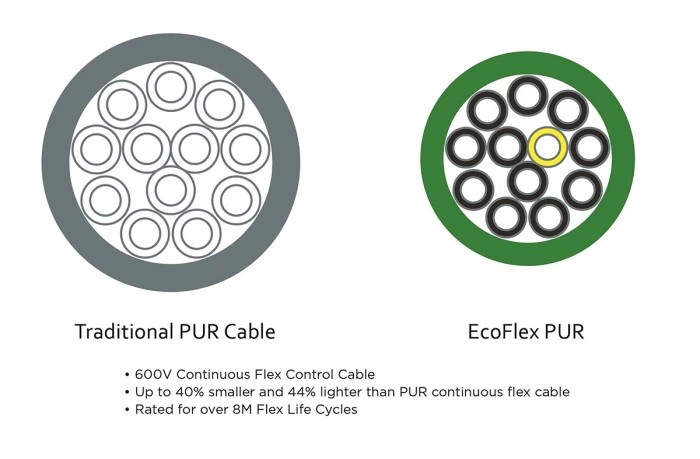

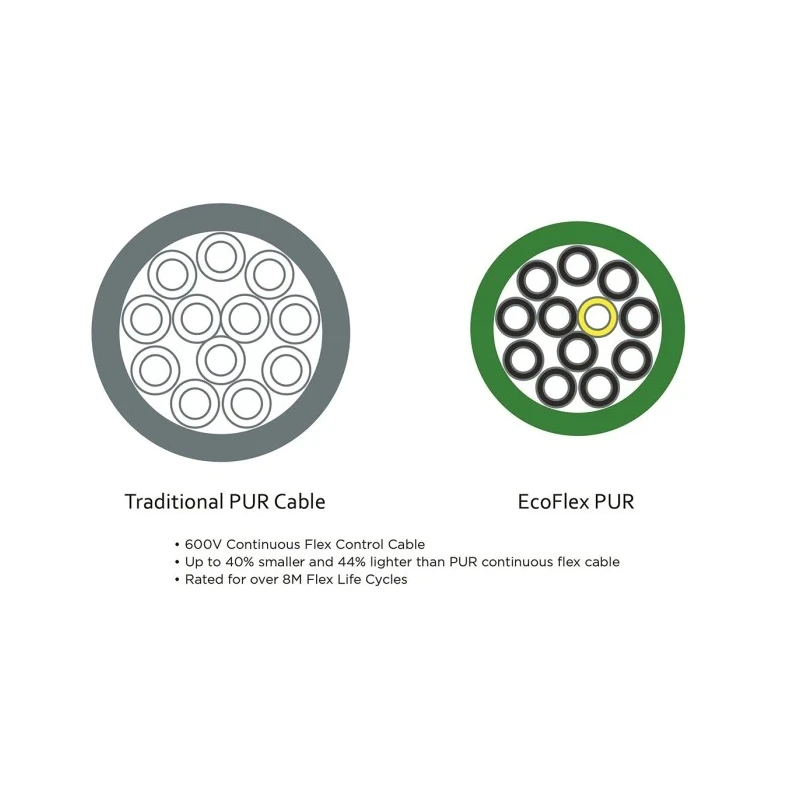

The combination of PUR and mPPE insulation results in a cable that is thinner and lighter than equivalent PVC cables, enhancing installation ease and reducing cable bulk. The cable jacket provides exceptional mechanical protection and chemical resistance.
Stranded tinned copper conductors enable high conductivity and corrosion resistance. Halogen-free composition enhances safety in case of fire by not emitting toxic gases. Suitable for outdoor and harsh industrial environments due to UV and oil resistance.
Compliance with CE, CSA, and UL certifications ensures quality and reliability. Ecoflex PUR cables reduce environmental impact via recyclability and absence of harmful chemicals.
This Alpha Wire control cable is ideal for industrial, laboratory, construction, HVAC, manufacturing, agricultural, and commercial uses requiring versatile, durable, and environmentally conscious cables.
Explore more Control Cables and industrial wire products at EnvMart for all your automation and electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates safely at voltages up to 600V.
It has a minimum operating temperature of -50°C and a maximum operating temperature of +90°C.
The jacket is made of grey modified polyphenylene ether (mPPE) and features a polyurethane (PUR) outer jacket, while the conductors are stranded tin copper wire.
The cable length is 30 meters.
This model features 3 cores.
The outside diameter of the cable is 6.12mm.
Yes, it is designed for outdoor applications due to its UV and oil resistance.
It complies with CE, CSA, and UL safety standards.
Being halogen-free enhances safety in case of fire by not emitting toxic gases.
The conductors are 16 AWG with a cross-sectional area of 1.33mm².
Each conductor consists of 65 strands of 0.16mm diameter.
It is designed for use in industrial machinery, robotics, medical equipment, automotive, mining, and outdoor applications.
