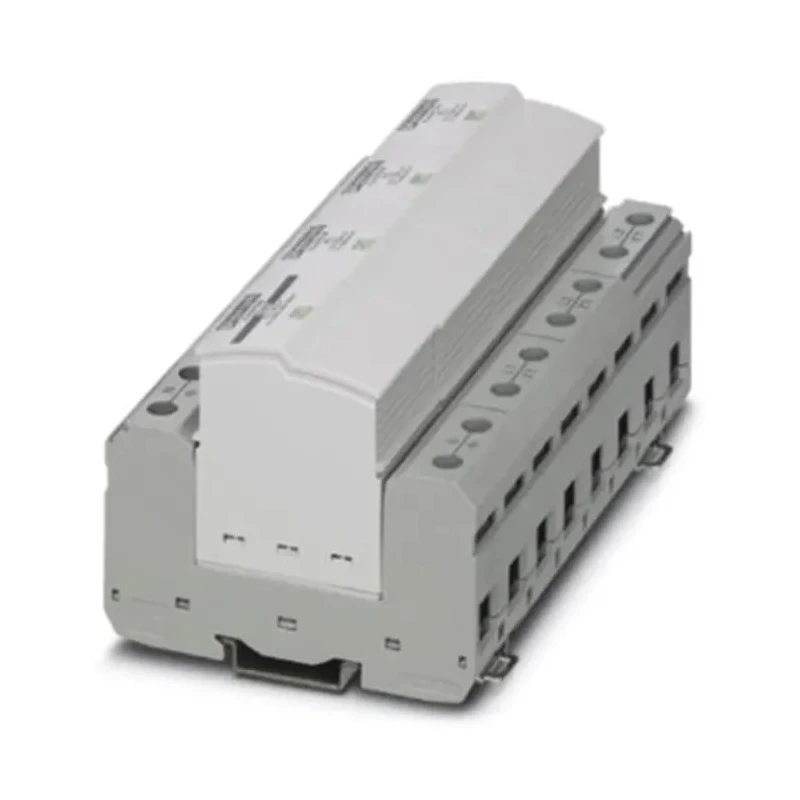

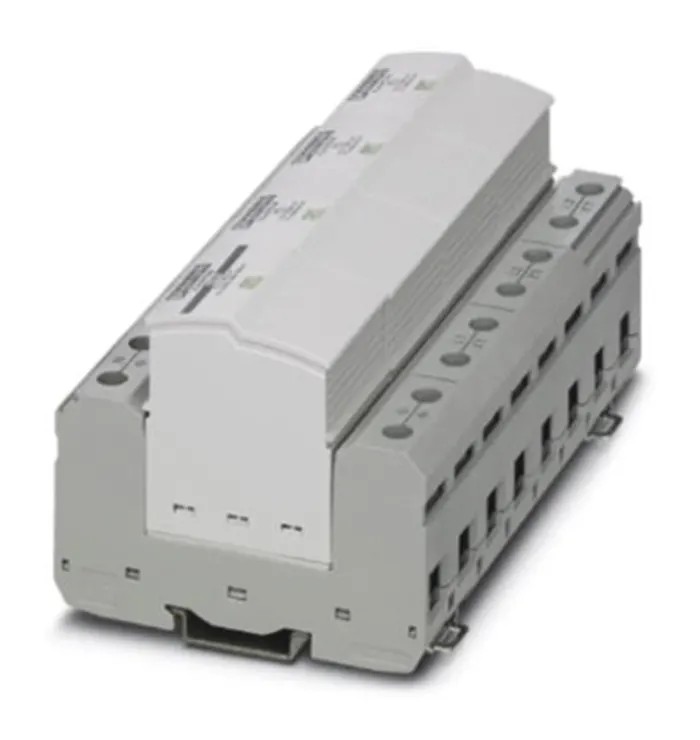

Phoenix Contact 3 Phase Surge Protector, 2 kV Voltage Protection Rating, DIN Rail Mount FLT-SEC-P-T1-3S-350/25-FM 2905421
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 95.2mm |
| Model | 2905421 |
| Depth | 74.5mm |
| IP Rating | IP20 |
| Width | 142.4mm |
| Mount Type | DIN Rail |
| Series | FLT-SEC-P-T1-3S-350/25-FM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Electrical Phase | 3 |
| Standards/Approvals | UL |
| Voltage Protection Rating | 2kV |
| Impulse Discharge Current | 100kA |
Key Features
- Designed for 3-phase power supply networks to protect against high voltage surges.
- Provides voltage protection rating of 2 kV with impulse discharge current up to 100 kA.
- Mounts conveniently on DIN rail for easy installation and maintenance.
- Features optical mechanical status indicator and floating remote indication contact.
- Suitable for harsh environments with operating temperature range from -40°C to 80°C.
- High continuous voltage of 350 V AC for 230/400 V AC networks with voltage fluctuations.
- Complies with UL standards and has IP20 ingress protection rating.
- Suitable for use in power supplies, telecommunication, wind power, machine-building and datacenters.
Product Description
Phoenix Contact 2905421 is a high-performance 3 Phase Surge Protector designed to safeguard electrical equipment from lightning strikes and voltage spikes. It features a 2 kV voltage protection rating and is intended for use in industrial, commercial, and telecommunication applications to ensure operational continuity.
This device mounts on a DIN rail, enabling quick integration into control cabinets and electrical distribution panels. Its design supports 3-phase power networks, providing robust protection through impulse discharge currents up to 100 kA to handle severe surge events.
The surge protector incorporates a spark gap with no line follow current, ensuring reliable protection without leakage current, making it suitable for demanding pre-meter installations. It also features an optical mechanical status indicator that allows easy monitoring of device condition along with a floating remote indication contact for remote status signaling.
Operating reliably within a wide temperature range of -40°C to 80°C, this surge protector complies with UL standards and is rated IP20 for ingress protection. Its high continuous voltage tolerance of 350 V AC accommodates voltage fluctuations commonly found in 230/400 V AC networks.
Applications for this device include power supply systems, building installation equipment, telecommunications infrastructure, wind power installations, machine-building industries, and datacenters. The plug-in design facilitates maintenance and verification when used with the CHECKMASTER 2 testing device.
Designed for protecting electrical circuits against surge voltages. 3-phase protection with DIN rail mounting for easy installation. 100 kA impulse discharge current capacity handles extreme surge events. Optical and remote indication for monitoring device status.
Wide temperature operating range for harsh environments. High continuous voltage compatibility for fluctuating networks. UL certified product ensuring quality and safety compliance. Compatible with CHECKMASTER 2 for device checks and maintenance.
Choose Phoenix Contact Surge Protection Devices for reliable circuit safety in industrial and commercial power systems. Explore the comprehensive range available at EnvMart’s Electronics & Electricals category for optimal surge protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The surge protector has a voltage protection rating of 2 kV, designed to safeguard against high voltage surges.
It can handle an impulse discharge current of up to 100 kA, providing robust protection against severe surge events.
The operating temperature range is from -40°C to 80°C, making it suitable for harsh environments.
This model mounts conveniently on a DIN rail, facilitating easy installation and maintenance.
The dimensions are 95.2 mm in length, 142.4 mm in width, and 74.5 mm in depth.
This surge protector is designed for 3-phase electrical systems, providing comprehensive surge protection.
Yes, it complies with UL standards, ensuring adherence to safety and quality requirements.
It has an IP20 ingress protection rating, which indicates protection against solid objects but not water.
Yes, it features an optical mechanical status indicator for easy monitoring of the device's condition.
It is suitable for applications in power supply systems, telecommunications, wind power, machine-building, and datacenters.
Yes, it is compatible with the CHECKMASTER 2 testing device for maintenance and verification purposes.
The country of origin for this surge protector is Germany.
