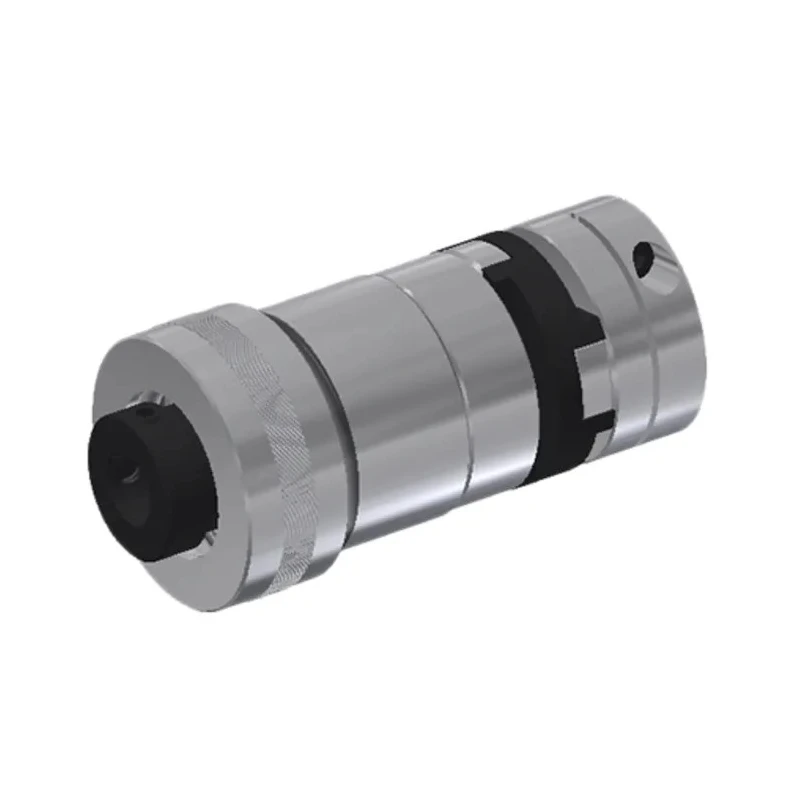

Huco Friction Clutch 12mm Bore 300 Ncm Torque, 600rpm Maximum Speed, In-Line Mount, 102mm Length, 48mm 269P48.3535.RS

Huco 269P48.3535.RS friction clutch is engineered for industrial power transmission requiring precise torque control. Featuring a 12mm bore diameter and 300 Ncm torque rating, this clutch offers controlled slip between the hub and housing when load exceeds set limits.

The clutch employs a simple yet robust construction where pressure is applied via an adjuster acting on plates and friction rings aided by a spring and pressure plate. The 102mm long clutch with a 48mm diameter fits compact spaces and has an in-line mount configuration for flexible integration into mechanical systems.

This friction clutch includes a 6 plate adjustable clutch mechanism combined with a clamp type Oldham coupler secured through set screw and clamp fixings, ensuring reliable connection to shafts or components. The clutch can operate as a torque limiter interrupting power flow, a tensioning device maintaining feed spool tension, or an overrun device absorbing motor inertia during stops.

Ideal for applications in manufacturing, fluid power systems, and mechanical power transmission, this clutch helps protect equipment from overloads and improves operational safety.

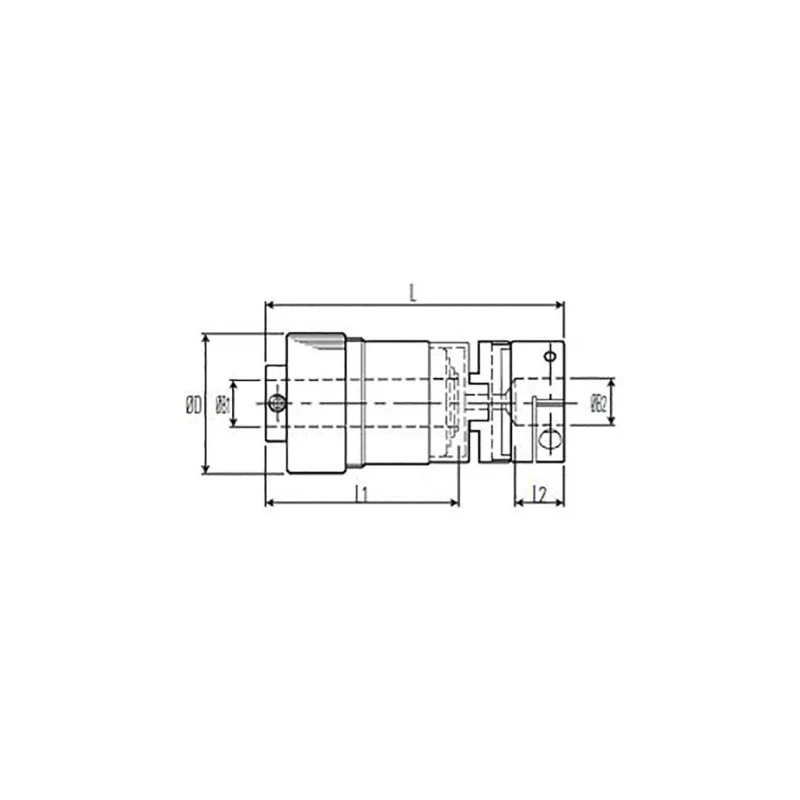

Designed with adjustable drag or slip torque for precise control. Compact 102mm overall length with 48mm diameter for space-saving installation. In-line mount type suitable for various Mechanical Power Transmission systems.

Maximum operating speed of 600rpm to ensure reliable performance. Includes 6 plate clutch with clamp type Oldham coupler and set screw fixings. Functions as a torque limiter, tensioning, or overrun device in industrial applications.

Constructed with steel inner hub and aluminium alloy housing for durability. Originated in the United Kingdom with adherence to Huco Vari-Tork series standards.

As part of the Huco Vari-Tork series, this friction clutch meets the needs of industrial, laboratory, and manufacturing sectors requiring dependable torque management solutions. Explore more Huco power transmission components and related industrial toolsets at EnvMart for comprehensive equipment needs.
