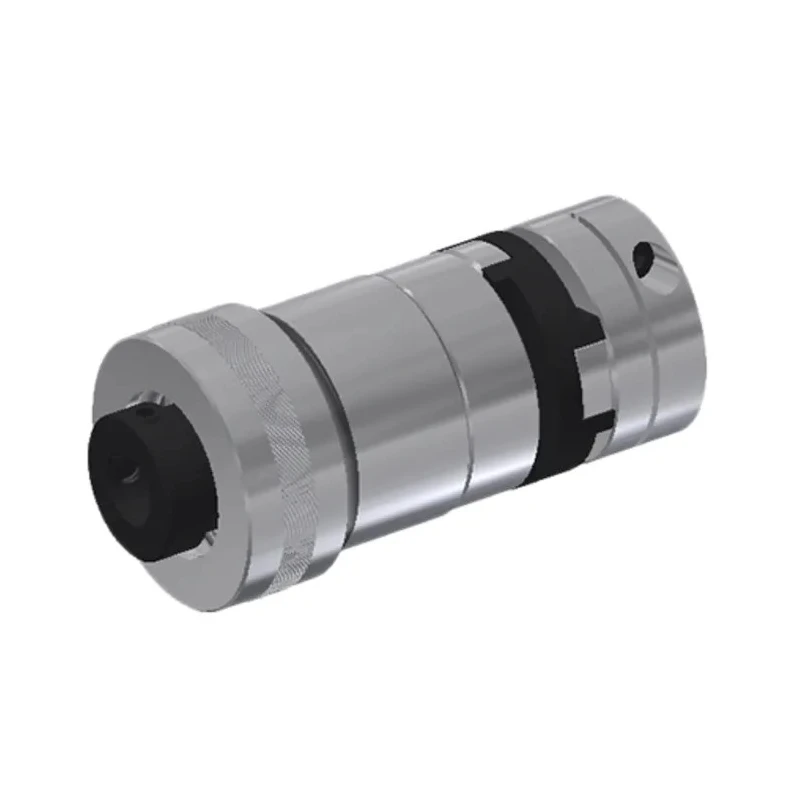

Huco Adjustable Friction Clutch 10mm Bore 300 Ncm Torque Rating, 600rpm Maximum Speed, In-Line Mount 269P48.3232.RS

Huco 269P48.3232.RS adjustable friction clutch offers a 10mm bore diameter with a torque rating of 300 Ncm, suitable for various mechanical power transmission needs.

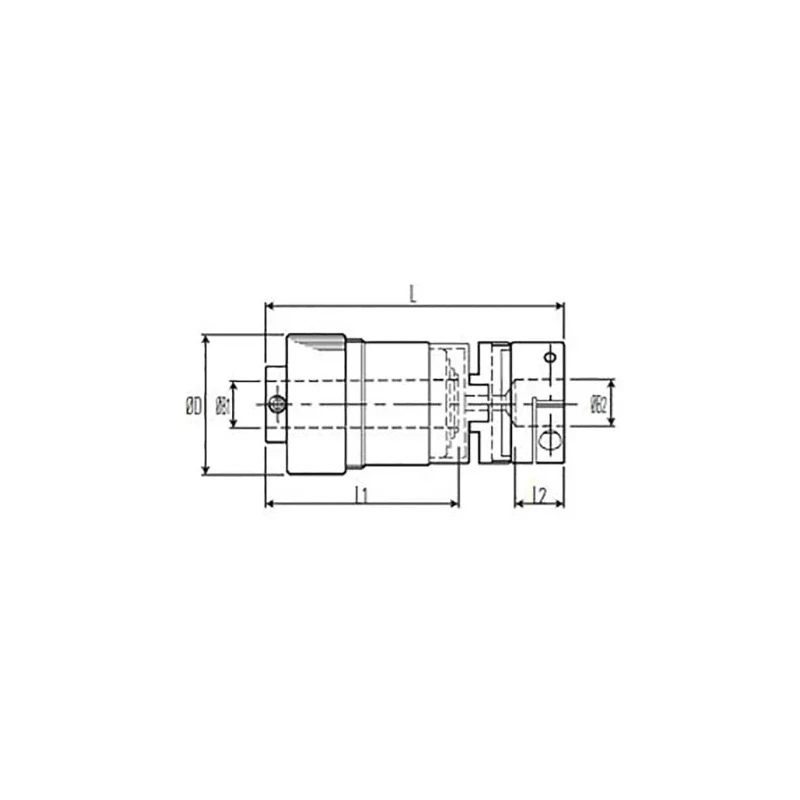

This friction clutch operates at a maximum speed of 600rpm and features an in-line mounting type. The clutch's overall length is 102mm with a diameter of 48mm, making it compact yet robust for industrial use.

The unit consists of 6 plate adjustable friction clutches equipped with clamp Oldham coupler, set screw, and clamp fixings, allowing for customizable slip torque settings. Controlled slip takes place between the steel inner hub and aluminium alloy housing whenever the load exceeds the preset torque, protecting machinery from overload.

Built to Varitork series standards without specific certifications, this clutch can be employed as a torque limiter to interrupt power transmission at predetermined levels, as a tensioning device to maintain tension in filament or tape winding operations, or as an overrun device absorbing motor residual inertia when loads are braked or stopped.

The compact design offers 4 interface styles with options for set screw or clamp connections, providing installation flexibility. Manufactured in the United Kingdom, this friction clutch meets rigorous quality standards to ensure reliable performance in industrial, mechanical, and fluid power transmission applications.

The friction clutch offers a maximum speed of 600rpm for efficient operation. It features an in-line mount type for straightforward installation. Overall length measures 102mm and diameter is 48mm ensuring compact proportions.

Designed with 6 plate adjustable friction clutch plates with clamp Oldham coupler, set screw, and clamp fixings. Suitable for torque limiting, tensioning, and overrun device applications in industrial settings. Constructed for controlled slip between hub and housing when load exceeds set torque.

Compact size with 4 interface styles and clamp or set screw connection options. Manufactured to Varitork series standards with no additional certifications. Originating from the United Kingdom ensuring high manufacturing quality.
