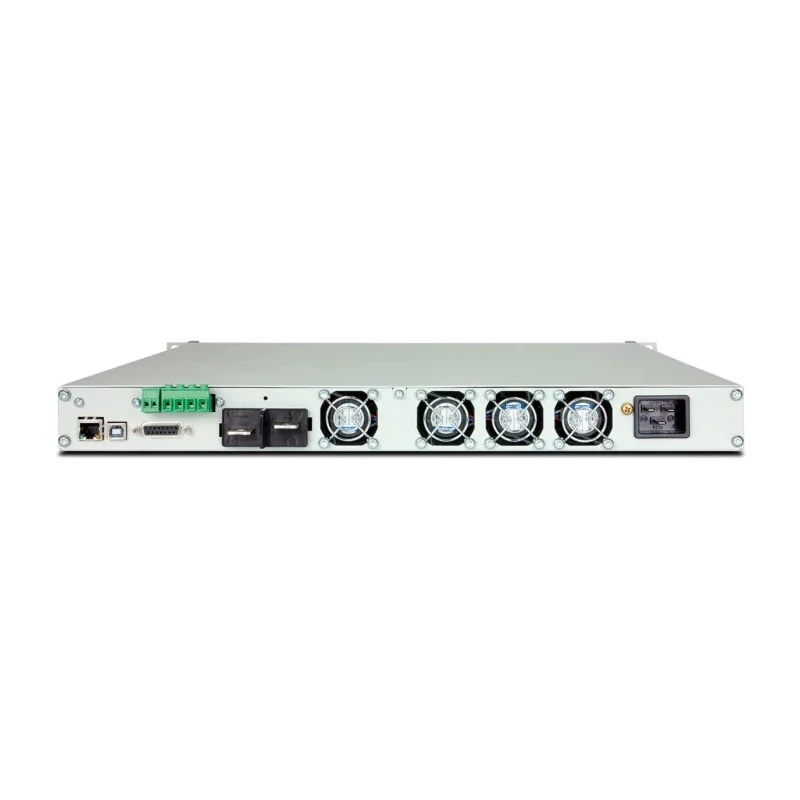

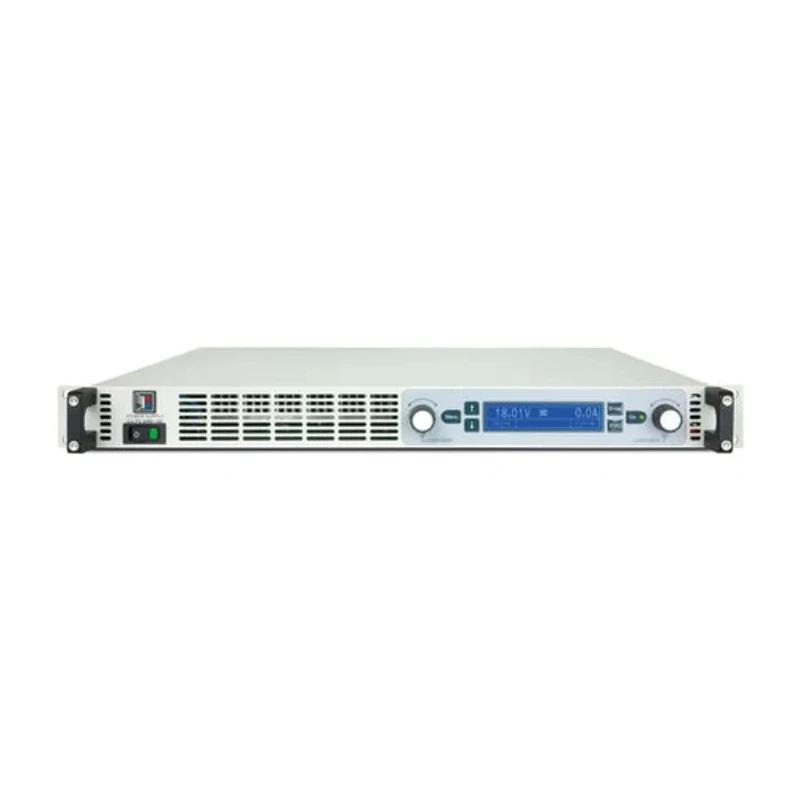

EA Elektro-Automatik Bench Power Supply 1 Output 0 mV to 750 V 3 kW 12 A Max EA-PS 9750-12 1U
Specifications
| Country of Origin | Germany |
|---|---|
| Resolution | 16 bit |
| Brand | EA Elektro-Automatik |
| Power | 3kW |
| Model | EA-PS 9750-12 1U |
| Output type | Analog, Digital |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC |
| Interfaces | USB and Ethernet |
| Number of outputs | 1 |
| Maximum Output Current | 12A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 750V |
| Maximum Supply Voltage | 264V ac |
| Minimum Supply Voltage | 207V ac |
| Supported Number of Displays | 1 |
| Minimum Output Voltage | 0mV |
Key Features
- Microprocessor-controlled 19 inch 1U rack-mount power supply for precise laboratory and industrial use.
- Flexible auto-ranging output for constant voltage, current, or power modes.
- Dot matrix LCD with 16-bit resolution and memory profile functions.
- Isolated analog interface, USB, and Ethernet for external automated control.
- Supports master-slave parallel and serial operations.
- Compact 19 inch 1U rack format with IEC input and safety-covered output terminals.
- Operating temperature range from 0°C to 50°C ensures reliable performance.
- Complies with RoHS environmental standards.
Product Description
EA Elektro-Automatik EA-PS 9750-12 1U Bench Power Supply delivers a precise, stable power output with 1 output channel adjustable from 0 mV up to 750 V, delivering 3 kW power with a maximum output current of 12 A. This microprocessor-controlled power supply features a 19" 1U ultra-compact rack design, optimized for laboratory, industrial, and R&D applications requiring flexible and high-performance DC power sources.
The bench power supply offers an auto-ranging output allowing flexible operation in constant voltage, constant current, or constant power modes to meet the diverse needs of automated testing systems and 19" rack integration projects. It includes a high-resolution dot matrix LCD with a 16-bit resolution that supports up to 5-digit display and memory functions for enhanced data monitoring and control.
Connectivity options include an isolated 3-channel analog interface (0-5 V/0-10 V), USB, and Ethernet interfaces for seamless integration with external control systems. It supports master-slave parallel and serial operation modes for scalable power supply setups.
The unit features rugged construction with an IEC 320_C20 input receptacle and 6 mm outlet bolts protected by insulated safety covers, ensuring operator safety and reliability within a compact form factor measuring approximately 483 x 44 x 522 mm (depth x height x width).
The EA-PS 9750-12 1U operates efficiently over a temperature range of 0°C to 50°C and is compliant with RoHS environmental directives. This power supply is manufactured in Germany, ensuring high quality and durability for professional industrial, laboratory, HVAC, manufacturing, and automated testing environments.
Microprocessor-controlled with 16-bit resolution and auto-ranging output modes. High resolution dot matrix LCD with memory and profile functionality. On-board isolated analog, USB, and Ethernet interfaces for control and communication.
Supports master-slave parallel and serial configurations for scalable power output. Compact 19" 1U rack format with safety-protected 6 mm output terminals. Wide operating temperature range from 0°C to 50°C ensures robust use.
RoHS compliant, manufactured in Germany with rigorous quality control.
This bench power supply is ideal for electrical test and measurement tasks in industrial, laboratory research, manufacturing quality control, and automated test systems. It combines flexibility with precision control and compact design to meet demanding technical specifications and integration requirements.
Explore more EA Elektro-Automatik Bench Power Supplies and related products in the Electronics & Electricals category at EnvMart for reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 750 V.
This bench power supply has a power output capacity of 3 kW.
It can deliver a maximum output current of 12 A.
The operating temperature range is from 0°C to 50°C.
It supports USB and Ethernet interfaces for external control and communication.
The output can be controlled in constant voltage, constant current, or constant power modes.
It features a high-resolution dot matrix LCD with 16-bit resolution.
The dimensions of this unit are approximately 483 mm in width, 44 mm in height, and 522 mm in depth.
Yes, it complies with RoHS environmental standards.
This power supply has 1 output channel.
The country of origin is Germany.
It uses an IEC plug type for the input.
