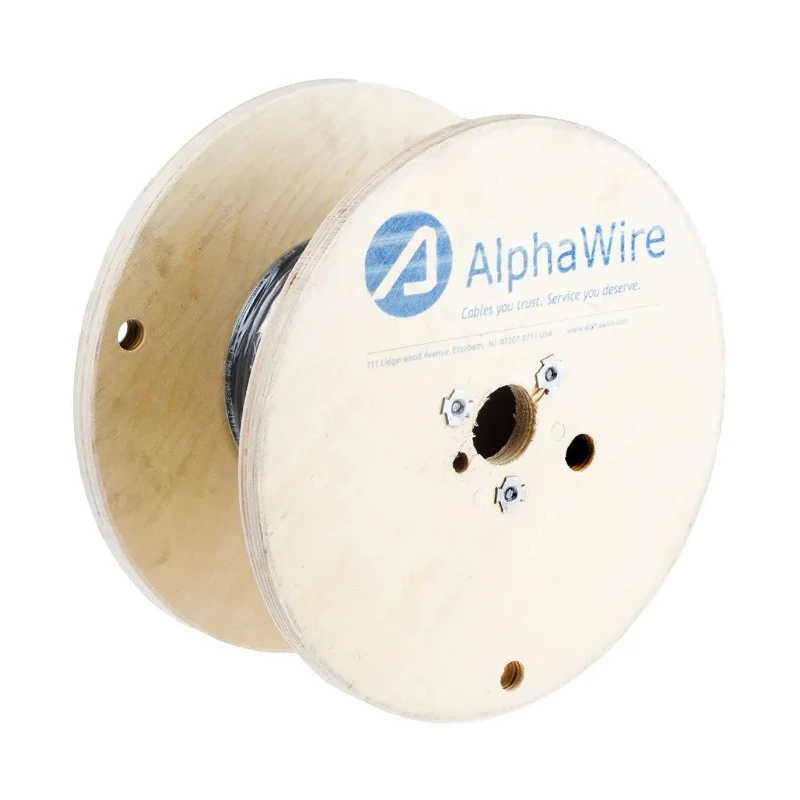

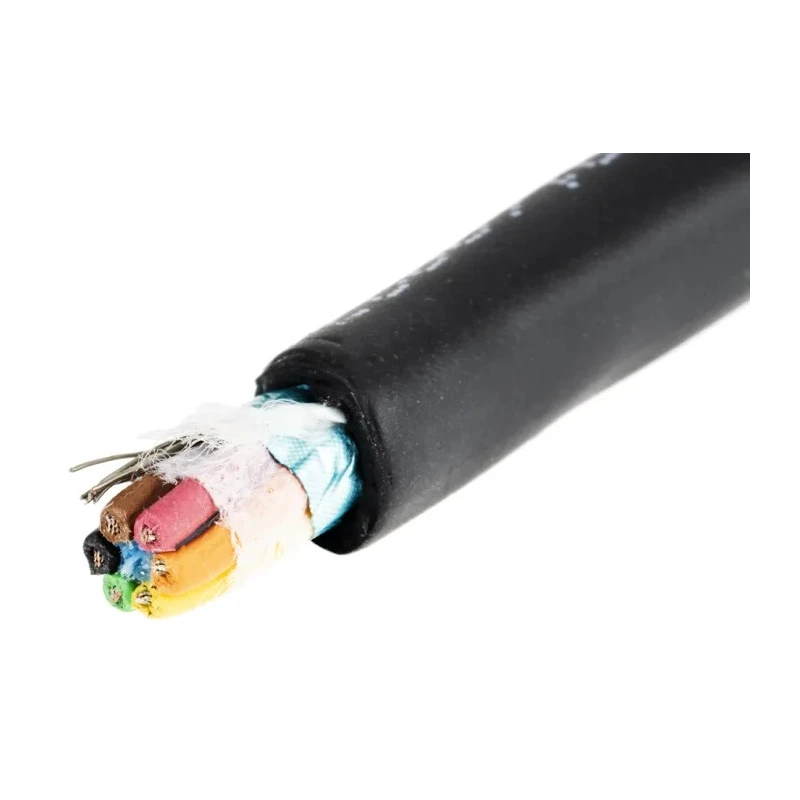

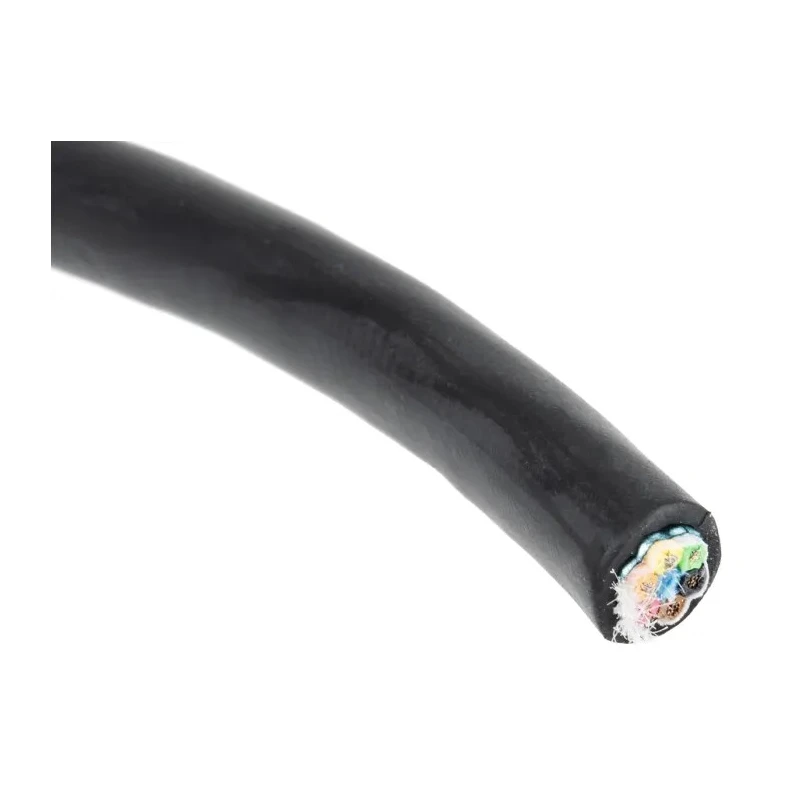

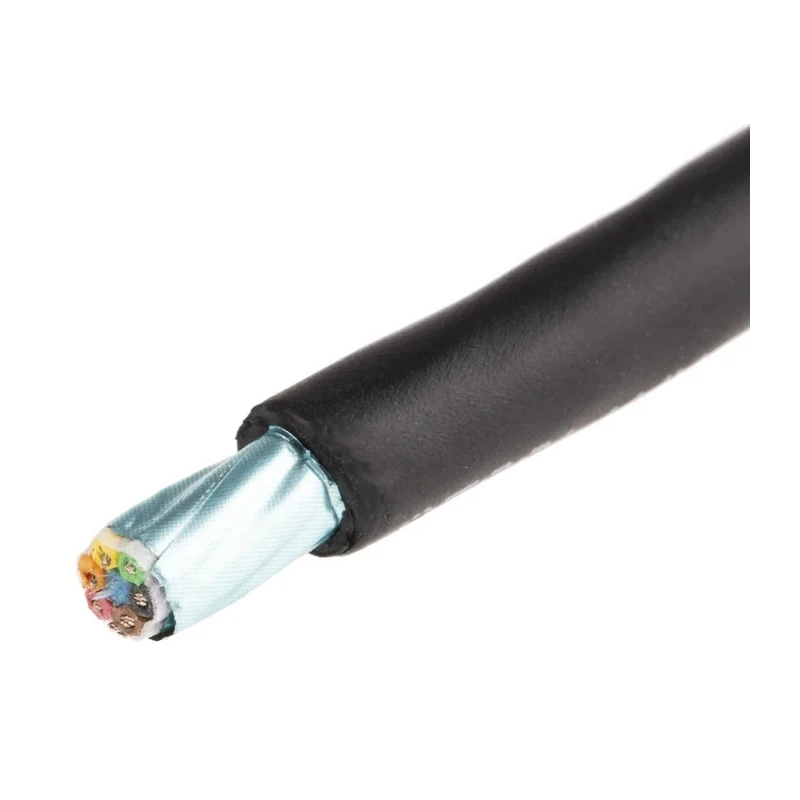

Alpha Wire Xtra-Guard 4 Performance Cable Control Cable, 6 Cores, 0.23mm² 24 AWG, Screened, 30 m, Black 45096 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 45096 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 4 Performance Cable |
| Outside diameter | 6.63mm |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.261 inch (6.63 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Black |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Cable CSA | 0.23mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.042 inch (1.07 mm) |
| Stranding | 7/32 |
| FIT Heatshrink tubing recommendations | FIT-400 and FIT-600 |
Key Features
- Screened cable with tin copper wire conductors ensuring signal integrity.
- Thermoplastic elastomer jacket provides abrasion resistance and flexibility.
- Operates reliably from -50°C to 125°C for extreme temperature applications.
- Complies with UL, CSA, and CE standards for safety and performance.
- Suitable for control applications in mining, paper, petrochemical, and military industries.
- 300 V rated with a nominal diameter of 6.63mm and length of 30 meters.
- Foil shielded to protect against electromagnetic interference.
- Multi-coloured conductors for easy identification and wiring.
Product Description
Alpha Wire 45096 BK005 Xtra-Guard 4 Performance Cable is a screened control cable designed for industrial and harsh environment usage. It features 6 cores of tin copper wire conductors with a 0.23mm² (24 AWG) cross-sectional area and a thermoplastic elastomer jacket in black, ensuring excellent durability and flexibility over a wide temperature range from -50°C to 125°C.
This cable has a nominal outside diameter of 6.63mm and a length of 30 meters, with insulation and jacket thickness designed to deliver reliable electrical performance at 300 volts. The foil shielding protects signal integrity by minimizing electromagnetic interference, making it well-suited for control applications within sectors such as mining, food and beverage, petrochemical, pipeline, military, and other industrial automation systems.
The high-flexibility thermoplastic elastomer jacket is abrasion-resistant, oil, water, and chemically resistant, and provides ultraviolet light stability, enabling reliable operation even in challenging outdoor and underground installations.
Alpha Wire Xtra-Guard 4 cable meets UL, CSA, and CE standards and is approved by the Pennsylvania Bureau for deep mining safety, attesting to its robust construction and safe usage in mine-wide monitoring systems. It is rated for power and control applications, including renewable energy sectors such as solar and wind power installations.
Screened with tin copper conductors for enhanced signal quality. Thermoplastic elastomer jacket offers extreme temperature performance and UV stability. Foil shielding guards against electromagnetic interference. Usable temperature range from -50°C to +125°C.
Certified to UL, CSA, and CE standards. Suitable for mining, petrochemical, industrial control, military, and renewable energy applications. Available in multiple conductor colors for easy wiring identification.
The package contains one 30-meter long control cable with 6 cores and a robust TPE jacket, ensuring flexibility and durability in demanding industrial environments. Explore more industrial-grade Control Cables in the Electronics & Electricals category by Alpha Wire and other trusted manufacturers on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable operates reliably at a maximum temperature of 125°C.
The nominal diameter of this cable is 6.63 mm.
It features 6 cores of tin copper wire conductors.
This model is rated for 300 volts.
The jacket is made from thermoplastic elastomer, and the conductors are made of tin copper wire.
The cable has an outside diameter of 6.63 mm and a length of 30 meters.
It complies with UL, CSA, and CE standards for safety and performance.
The minimum operating temperature is -50°C.
It is suitable for control applications in mining, petrochemical, military, and renewable energy sectors.
The insulation thickness is 0.016 inches (0.41 mm).
Yes, it is foil shielded to protect against electromagnetic interference.
The conductors are multi-coloured: Black, Brown, Red, Orange, Yellow, and Green for easy identification.
