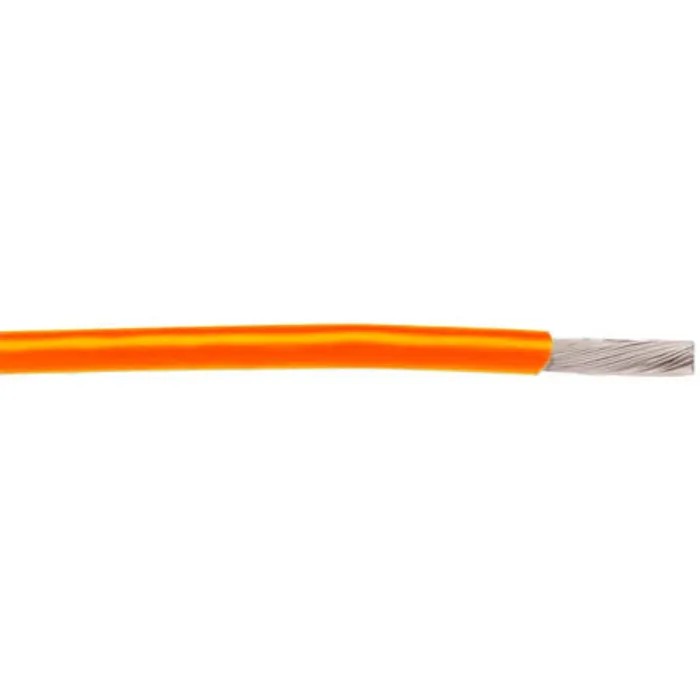

Alpha Wire Hookup Wire TEFLON Series Orange 0.24 mm², 24 AWG, 19/36 Stranded Copper Conductor, 30.5 m Length 2844/19 OR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Alpha Wire |
| Temperature range | -60°C to +200°C |
| CROSS SECTIONAL AREA | 0.24mm² |
| Model | 2844/19 OR005 |
| Cable Length | 30.5m |
| Series | Hookup Wire TEFLON |
| Outside diameter | 0.91mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Copper |
| Minimum Operating Temperature | -60°C |
| Wire size | 24 AWG |
| Standards/Approvals | California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1 |
| Jacket Colour | Orange |
| Fire Behaviour | Flame Resistant |
| American Wire Gauge | 24AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 36AWG |
| Size of Strands | 36AWG |
| Stranding | 19/36 AWG |
| Chemically inert | Chemical and solvent resistance |
| NEMA HP3 Type | ETXBEE |
| Insulation Colour | Orange |
Key Features
- This wire has a stranded copper conductor with 19 strands of 36 AWG size for flexibility.
- The insulation is orange PTFE (Teflon) offering excellent chemical and flame resistance.
- It supports a maximum operating temperature of 200°C and a voltage rating of 250 V.
- The cable has an outside diameter of 0.91 mm and a length of 30.5 meters.
- It meets multiple standards including MIL-DTL-16878/6 (Type ET), NEMA HP3, UL VW-1, and RoHS compliance.
- The temperature range spans from -60°C to +200°C.
- The wire is suitable for use in military, automotive, control panels, and high-temperature environments.
- This product provides chemical and solvent resistance, ensuring durability in demanding industrial applications.
Product Description
Alpha Wire 2844/19 OR005 Hookup Wire TEFLON Series Orange 0.24 mm², 24 AWG, 19/36 stranded copper conductor is a premium quality PTFE insulated hookup wire designed for use in demanding electronic and industrial applications. It offers exceptional electrical properties, high temperature resistance up to 200°C, and outstanding chemical inertness.
The 19 strand design of 36 AWG strands provides flexibility and mechanical durability. The orange-colored PTFE insulation is flame resistant and resistant to many chemicals and solvents, making it ideal for use in control cabinets, automotive wiring, ovens, transformers, and military equipment. Operating voltage is 250 V with a temperature range from -60°C to +200°C, allowing it to be used in extreme conditions.
This wire conforms to important standards such as MIL-DTL-16878/6 (Type ET), NEMA HP3, UL VW-1, and RoHS2 compliance, ensuring quality, safety, and environmental compliance. Its small diameter of 0.91 mm and robust performance make it suitable for precise internal wiring within electronic equipment, business machines, and meters.
This hookup wire features PTFE insulation with excellent chemical and flame resistance. The stranded copper conductor (19 strands of 36 AWG) ensures flexibility and conductivity. The insulation color is orange for clear identification in complex wiring systems.
Rated for 250 V and can operate continuously up to 200°C. Supports a temperature range from -60°C to +200°C for harsh environments. The 30.5 meter length reel provides ample wire for various installations. Meets military and industrial standards for high reliability and performance.
Chemically inert and resistant to solvents, enhancing durability. Ideal for control panels, automotive wiring, ovens, transformers, and military uses.
This Alpha Wire TEFLON series hookup wire offers dependable quality for electronics, laboratory, industrial, and military applications. Its robust specifications make it a preferred choice for temperature-resistant and reliable wiring.
Explore more quality hookup wires and cables from Alpha Wire in the Electronics & Electricals category at EnvMart.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 200°C.
This wire has a voltage rating of 250 V.
The outside diameter of this wire is 0.91 mm, and it has a length of 30.5 meters.
It supports a temperature range from -60°C to +200°C.
The conductor consists of 19 strands of 36 AWG size.
The wire is insulated with orange PTFE (Teflon), which offers excellent chemical and flame resistance.
It meets several standards including MIL-DTL-16878/6 (Type ET), NEMA HP3, UL VW-1, and is RoHS compliant.
The cross-sectional area of this wire is 0.24 mm².
This model is suitable for use in military, automotive, control panels, and high-temperature environments.
The conductor material is copper.
Yes, it is chemically inert and resistant to solvents, enhancing its durability in demanding applications.
The stranding configuration is 19/36 AWG, providing flexibility and mechanical durability.
