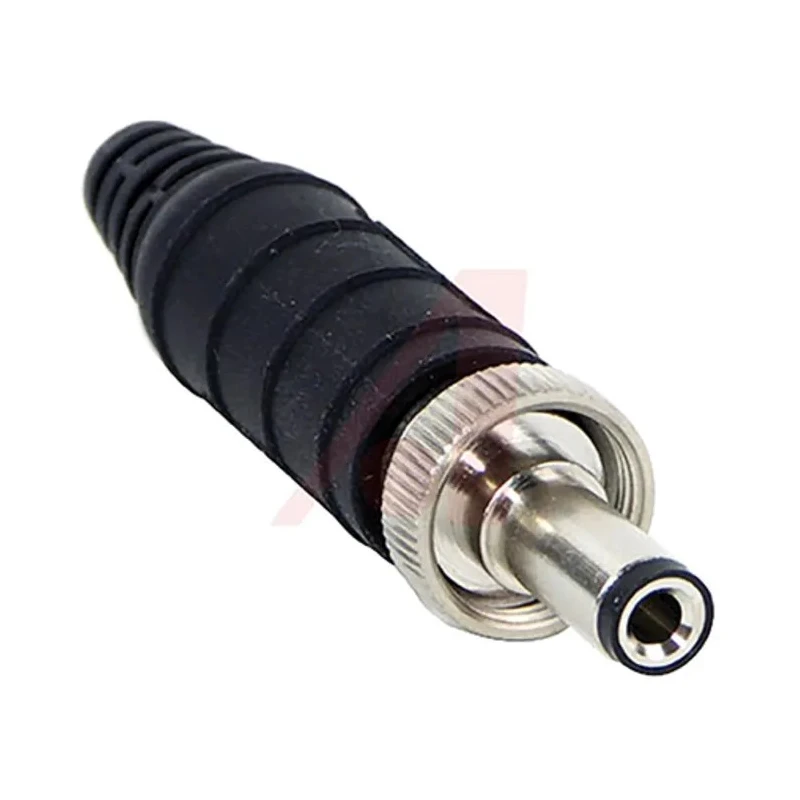

Switchcraft 761KS Straight DC Jack 5A 24V Cable Length 57 mm Tin Plated Copper Alloy IP68 761KS12

Free Delivery in India | Lowest Global Shipping Charges

Switchcraft 761KS Straight DC Jack 5A 24V Cable Length 57 mm Tin Plated Copper Alloy IP68 761KS12

Name: Switchcraft 761KS Straight DC Jack 5A 24V Cable Length 57 mm Tin Plated Copper Alloy IP68 761KS12
Brand: SWITCHCRAFT
SKU: 264832
Price: 15.28 USD
Availability: InStock



Category Cable Brand SWITCHCRAFT Condition New

Specifications

Country of Origin	United States
Voltage	24V
Brand	Switchcraft
Orientation	Straight
Current	5A
Length	57mm
Model	761KS12
IP Rating	IP68
Mount Type	Cable
Contact Material	Copper Alloy
Series	761KS
Termination Type	Solder
Inside Diameter	2.5mm
Contact Plating	Tin
Maximum Cable Diameter	3.8mm
Minimum Cable Diameter	3.2mm
Contact Gender	Male
Connector Gender	Male
Handle Thread Size	5/16 - 24 UNF 2B

Key Features

The jack has a 2.5 mm inside diameter suitable for DC power applications.
Its straight orientation allows easy cable connections.
Constructed with copper alloy contacts plated with tin for corrosion resistance.
Designed for cable diameters ranging from 3.2 mm to 3.8 mm.
Features a robust solder termination type for secure electrical contact.
Rated for IP68, ensuring dust tight and water immersion protection.
Includes a handle with thread size 5/16 - 24 UNF 2B for mounting and strain relief.
Suitable for industrial and electronic equipment requiring reliable DC power connections.

Product Description

Switchcraft 761KS12 Straight DC Jack is a premium cable-mounted male DC power connector designed for robust performance and durability. Rated for 5 amperes and 24 volts, this connector is ideal for a range of industrial and electronic applications requiring secure and reliable DC power delivery.

The connector features a 2.5 mm inside diameter pin and a straight orientation that facilitates convenient and stable cable connections. It is constructed from copper alloy contacts with tin plating, providing excellent corrosion resistance and electrical conductivity. The solder termination type ensures a durable and dependable electrical connection to the cable.

The cable mounting style supports cable diameters between 3.2 mm and 3.8 mm, with the sleeve terminal also serving as a Cable clamp, enhancing strain relief. The handle thread size is 5/16 - 24 UNF 2B, allowing easy mounting and secure locking in compatible sockets.

Rated with an IP68 ingress protection, the 761KS12 connector provides dust-tight sealing and water immersion resistance, making it suitable for demanding environments including industrial, manufacturing, HVAC, laboratory, and commercial equipment use. This ensures reliable operation even in harsh conditions where moisture and dust exposure are concerns.

The jack supports over 10,000 mating cycles to ensure longevity. Its nickel-plated copper alloy plug sleeve and pin maintain signal integrity and durability. Available with molded plastic covers in various colors for identification and insulation.

This connector series does not carry specific certifications but adheres to Switchcraft's stringent manufacturing standards. Manufactured in the United States, this Switchcraft DC jack combines quality materials, precise engineering, and rugged design to fulfill critical power connector needs.
