Alpha Wire Xtra-Guard 2 Performance Cable Control Cable 10 Cores 0.35mm² 22 AWG Unscreened 300V 30m 25010 BK005

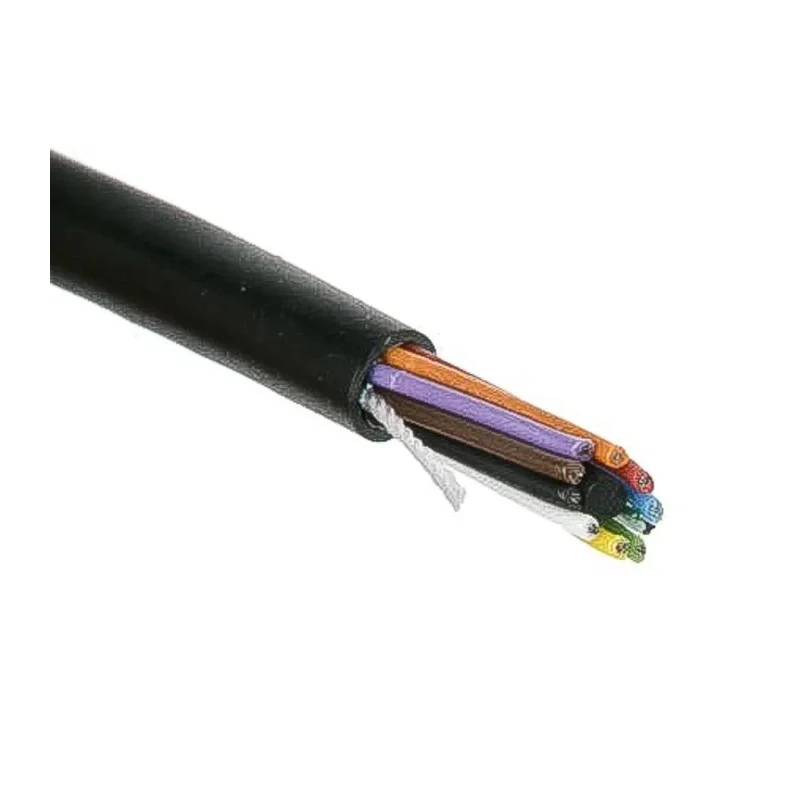

Alpha Wire 25010 BK005 Xtra-Guard 2 Performance Cable Control Cable features 10 cores, each with a conductor size of 0.35mm² (22 AWG), constructed from tin copper wire and insulated with a black polyvinyl chloride jacket.

This unscreened control cable is designed for industrial use where abrasion resistance is critical, featuring a specially formulated polyurethane outer jacket that offers three times the tear and abrasion resistance compared to conventional PVC jackets.

The cable has an overall diameter of 6.81mm and a length of 30 meters, with an operating voltage rating of 300V. It is rated for minimum and maximum operating temperatures of -30°C and 90°C respectively, providing flexibility at low temperatures and durability in harsh environments. The cable’s flame retardant properties and UV light stability make it suitable for outdoor and indoor use.

Alpha Wire’s Xtra-Guard 2 cable demonstrates moderate to high resistance to chemicals, solvents, oils, and fuels, making it ideal for demanding industrial environments such as CNC machines, automotive plants, military ground support systems, packaging machines, petrochemical plants, and geophysical equipment.

Features include a nylon ripcord for easy jacket stripping, color-coded conductors for identification, and compliance with CE, CSA, and UL AWM 20668 VW-1 standards. Although unscreened, the cable offers exceptional mechanical protection and UV resistance.

Alpha Wire offers a complete range of Xtra-Guard cables tailored to various industrial applications, with Xtra-Guard 2 focused on providing abrasion resistance combined with UV, oil, water, and chemical resistance in mechanical applications.

Heavy-duty abrasion resistant polyurethane jacket providing superior durability. Color-coded tin copper wire conductors for easy identification. Temperature rating from -30°C to 90°C for versatile applications. Flame retardant and UV stable for safety and longevity.

Meets CE, CSA, and UL AWM 20668 VW-1 standards. Includes nylon ripcord for easy jacket removal during installation. Suitable for a wide range of industrial equipment and environments. Explore EnvMart’s extensive selection of Control Cables for industrial, automation, and electrical applications.
