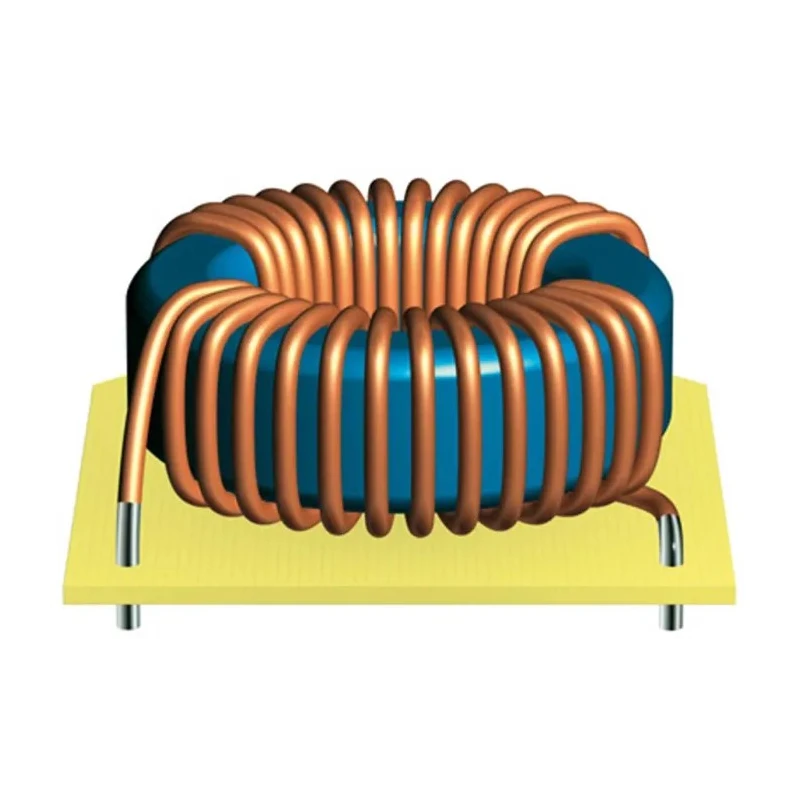

TDK 1.3 mH Ferrite Power Line Choke Radial Mount, Max SRF 10 kHz, 18 A IDC, 5 mΩ RDC, 250V AC B82726S2183N020

TDK B82726S2183N020 is a 1.3 mH ferrite power line choke designed specifically for industrial and electronic applications requiring common-mode interference suppression and reliable operation in switch-mode power supplies. The choke features a radial mounting style facilitating straightforward PCB installation and is housed with a ferrite core that provides high magnetic permeability needed for efficient inductance.

With a maximum DC current of 18 A and a low DC resistance of 5 milliohms, this choke ensures minimal power loss while delivering optimal performance. Rated for a maximum voltage of 250 V AC and capable of operating within a temperature range from -40°C up to 125°C, it suits demanding industrial environments and electronic component assemblies.

Its physical dimensions are 51 mm in diameter, 22 mm in height, and 51 mm in length with a mounting lead diameter of 1.8 mm and a pitch of 41 mm, allowing compatibility with standard PCB layouts. The termination style using PC pins is ideal for wave soldering processes, ensuring mechanical stability of mounted components.

This product meets various international quality and safety certifications, including VDE, UL, RoHS, IEC, and EN standards, underscoring its reliability and compliance for industrial and commercial electronics. Its properties make it ideal for applications in power supplies, industrial automation, electronic manufacturing, and switch-mode power supply interference reduction.

The choke has an inductance of 1.3 mH suitable for power line applications. Constructed with a ferrite core for efficient magnetic performance. Rated for a maximum voltage of 250 V AC ensuring safety in electrical circuits.

It has a low DC resistance of 5 milliohms minimizing power loss. Designed with a radial mount type allowing easy installation on PCBs. The component has a lead diameter of 1.8 mm and a pitch of 41 mm. Dimensions include 51 mm diameter, 22 mm height, and 51 mm length providing compact form factor.

Operating temperature ranges from -40°C to a maximum of 125°C ensuring durability. Termination style is PC pin compatible with wave soldering processes. Complies with VDE, UL, RoHS, IEC, and EN standards for quality and reliability.

This ferrite power line choke is an essential component for electronic designs aiming to reduce interference, improve signal integrity, and ensure compliance with electromagnetic compatibility requirements. EnvMart offers this product for industrial, electronic manufacturing, and research laboratory applications.
