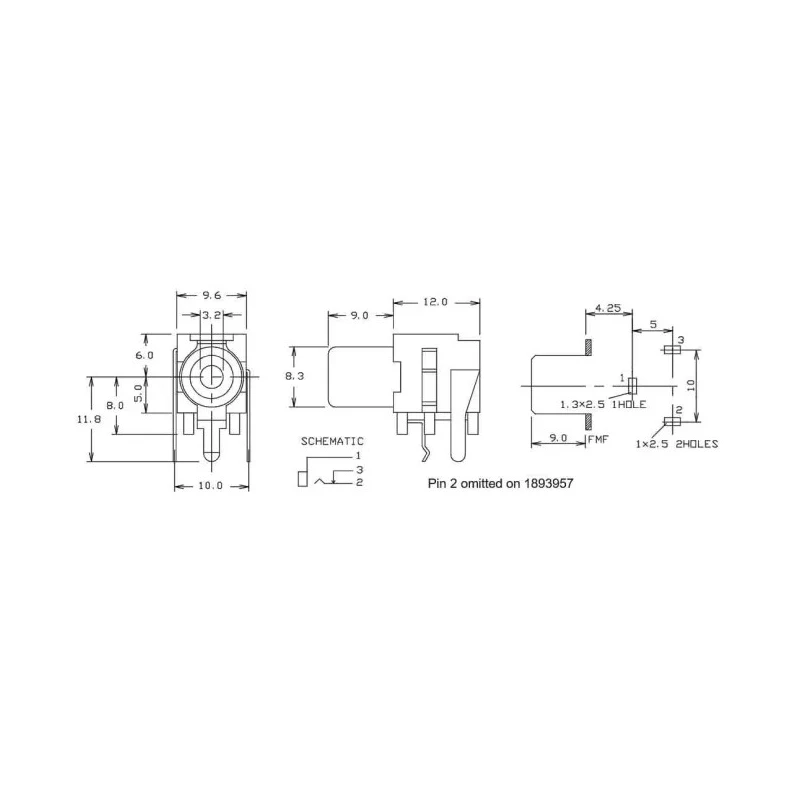

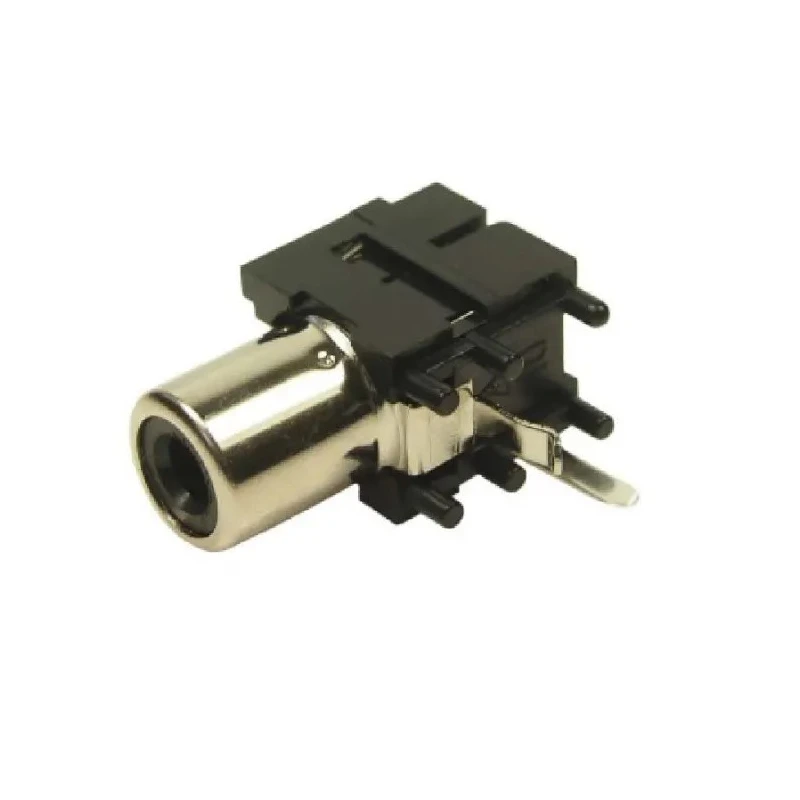

RS PRO Black Horizontal PCB RCA Socket 189-3957
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Orientation | Horizontal |
| Model | 189-3957 |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Resistance | 30mΩ max.@ AC 100mA max. 1kHz |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | 0.03∼3.0Kg |
| Dielectric Withstand | 500Vac @ 60 Hz for 1 minute |
| Extraction Force | 0.03∼3.0Kg |
Key Features
- Durable thermoplastic housing ensures long-lasting performance.
- Copper alloy contacts provide reliable electrical connection.
- Designed for PCB mounting with a horizontal orientation.
- Contact resistance is a maximum of 30mΩ at AC 100mA and 1kHz frequency.
- Dielectric withstand rating of 500Vac at 60 Hz for 1 minute guarantees safety and reliability.
- Supports over 4000 insertions and removals for durability in professional use.
- Insertion and extraction forces range between 0.03 to 3.0 kg for ease of use and secure connection.
- Black color coding allows easy identification in assemblies.
Product Description
RS PRO 189-3957 PCB RCA Socket is a reliable and efficient black horizontal female RCA phono connector designed specifically for PCB mounting in various professional audio and video equipment.
The connector features a durable thermoplastic housing which ensures mechanical protection and extended service life in demanding environments. The copper alloy contacts offer excellent conductivity and connection reliability, making it ideal for high-quality signal transmission.
This connector's horizontal orientation facilitates compact PCB layouts and ease of assembly, while the black colored insert aids color-coded identification within complex connector arrays.
Electrical and mechanical performance is assured with a contact resistance not exceeding 30mΩ at AC 100mA and a frequency of 1kHz, dielectric withstand capability at 500Vac for one minute, and a robust mechanical life supporting over 4000 insertion cycles. The insertion and extraction forces ranging from 0.03 to 3.0 kg ensure convenience and secure locking during use.
RS PRO 189-3957 is widely applicable in connecting audio-visual equipment such as computers, televisions, and mixing consoles, making it an essential component in industrial, commercial, and laboratory electronics assemblies.
Durable thermoplastic housing ensures long-lasting performance. Copper alloy contacts provide reliable electrical connection. Designed for PCB mounting with a horizontal orientation. Contact resistance is a maximum of 30mΩ at AC 100mA and 1kHz frequency.
Dielectric withstand rating of 500Vac at 60 Hz for 1 minute guarantees safety and reliability. Supports over 4000 insertions and removals for durability in professional use. Insertion and extraction forces range between 0.03 to 3.0 kg for ease of use and secure connection.
Black color coding allows easy identification in assemblies. Suitable for connecting audio and visual devices including computers, televisions, and mixing desks.
RS PRO products are trusted globally and rigorously tested to meet high-quality standards, ensuring dependable performance across professional audio and electronic applications. Explore our comprehensive selection of connectors on EnvMart for your technical requirements.
Explore more products in our RCA Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this model is a maximum of 30mΩ at AC 100mA and a frequency of 1kHz.
It has a dielectric withstand rating of 500Vac at 60 Hz for 1 minute, ensuring safety and reliability during operation.
This socket supports over 4000 insertions and removals, making it suitable for professional use.
This model is designed for horizontal orientation, facilitating compact PCB layouts.
The housing is made of durable thermoplastic, and the contacts are composed of copper alloy for reliable electrical connections.
The insertion and extraction forces range from 0.03 to 3.0 kg, providing ease of use and secure connections.
This connector is designed for PCB mounting, making it suitable for integration into various electronic assemblies.
The connector is black, which aids in color-coded identification within assemblies.
It is widely applicable in connecting audio-visual equipment such as computers, televisions, and mixing consoles.
This model features a single female contact, designed for reliable connections in audio and video applications.
The country of origin for this RCA socket is India.
This connector is manufactured by RS PRO, a trusted brand in the electronics and electricals category.
