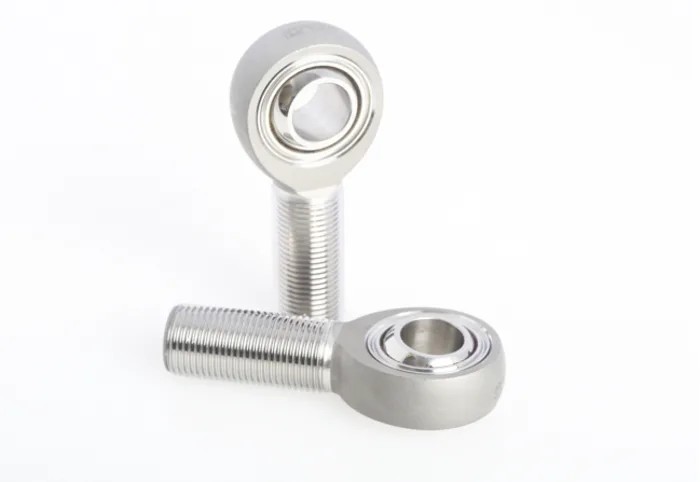

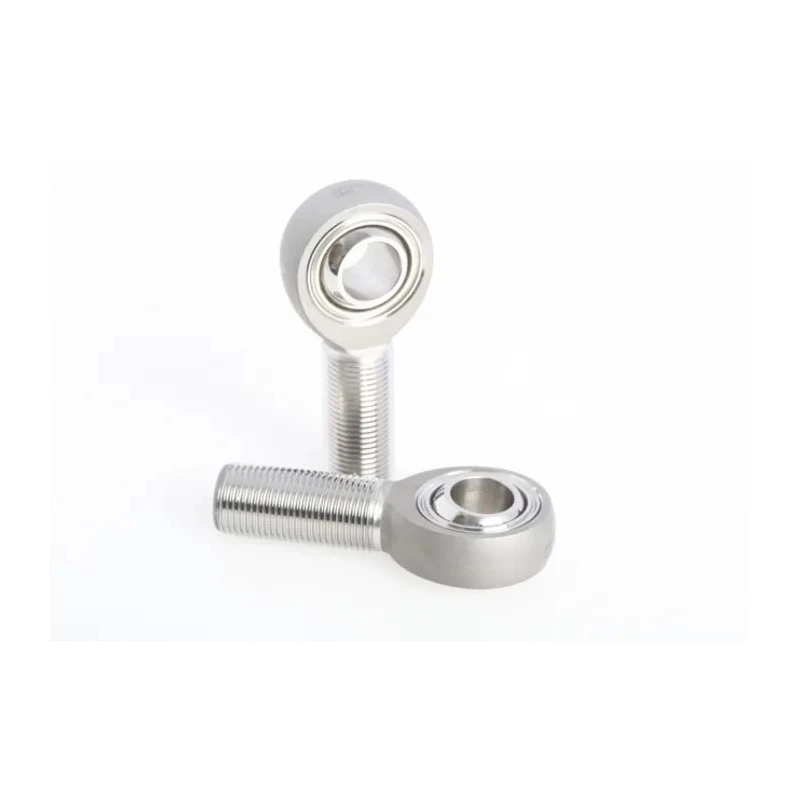

NMB 3/8-24 Male Stainless Steel Rod End Bearing UNF, 7.93mm Bore, Right Hand Thread ARHT5E(R)

The NMB ARHT5E(R) Rod End Bearing is a premium industrial-grade component engineered for robust performance in mechanical and hydraulic applications. Featuring a 3/8-24 male UNF thread and a precise 7.93mm bore, this rod end bearing incorporates right hand threading and is crafted for reliability and long service life.

Manufactured using high-quality stainless steel materials, the bearing itself is composed of CRES 440C stainless steel, ensuring excellent wear resistance and corrosion protection. Its outer cage is made from heat-treated CRES 410 stainless steel coated with Teflon, providing low friction and reduced maintenance requirements. The rod body is constructed from carbon manganese steel treated and coated for enhanced durability.

This rod end bearing performs effectively within a wide temperature range from -54°C to 121°C, making it suitable for diverse environmental conditions. Its static load rating of 4.89kN supports heavy-duty industrial applications where angular misalignment may occur between connected shafts and rods.

Measuring 22.87mm in outside diameter and 8.31mm in overall width, this component is precisely dimensioned for compact assemblies. The right hand thread standard (3/8-24 UNF) enables secure fastening in demanding environments.

Typical use cases include installations in hydraulic cylinders, linkages, shafts, and other mechanisms requiring articulation and alignment tolerance. This product is highly reliable for industrial machinery, fluid power systems, manufacturing equipment, and construction applications with demanding operational conditions.

The bearing material utilizes stainless steel CRES 440C for maximum durability. The outer cage features heat treated stainless steel CRES 410 with Teflon coating to minimize friction. Rod body made of carbon manganese steel with heat treatment and surface coating for extended life.

Adapts for angular misalignments in mechanical assemblies. Operates reliably from -54°C up to 121°C. Supports static loads up to 4.89kN for heavy duty usage. Compact size with 22.87mm outside diameter and 8.31mm overall width.

Right hand threaded with standard 3/8-24 UNF connection. Ideal component for industrial, hydraulic, mechanical, manufacturing, and fluid power applications. Explore the comprehensive range of Rod End Bearings and mechanical components at EnvMart for high reliability and precision engineering solutions.
