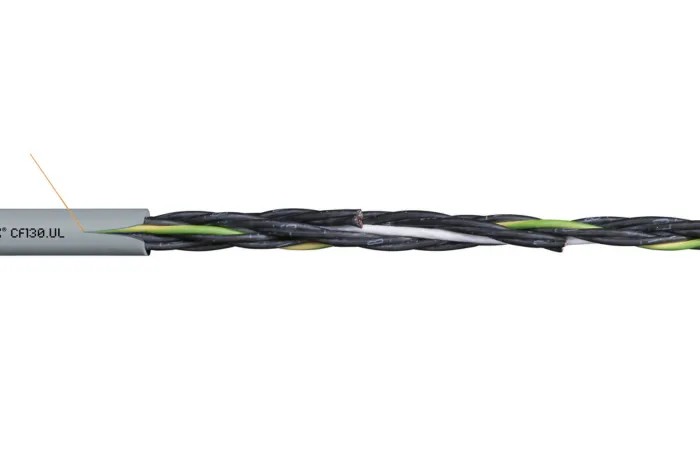

Igus Chainflex CF130.UL Control Cable 12 Cores 1.5mm² 16 AWG Unscreened 50m Grey Polyvinyl Chloride Sheath CF130.15.12.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF130.15.12.UL |
| Cable Length | 50m |
| Series | Chainflex CF130.UL |
| Outside diameter | 13mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 16AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- Constructed with fine-wire stranded copper conductors for flexibility and conductivity.
- Features a flame-retardant polyvinyl chloride outer sheath compliant with IEC 60332-1-2 standards.
- Designed for freely suspended travel distances and gliding applications up to 50 meters.
- Rated for 300V operating voltage, suitable for medium load control systems.
- Operating temperature range from -5°C to 70°C ensures reliable performance in diverse environments.
- Unscreened design reduces electrical interference in controlled environments.
- Grey low-adhesion PVC outer sheath adapted for use in energy chains according to DIN VDE 0282 Part 10.
- Complies with multiple international standards including CE, UL, CSA, and NFPA 79.
Product Description
Igus CF130.15.12.UL Chainflex PVC Control Cable is a 12-core, 1.5mm² (16 AWG) unscreened control cable with a grey polyvinyl chloride sheath designed for industrial automation and control systems. This cable is optimized for medium load requirements, particularly in applications needing free movement such as in energy chains and gliding environments, allowing travel distances up to 50 meters.
Its fine-wire stranded copper conductors provide excellent flexibility and efficient electrical performance, conforming to EN 60228 standards. The low-adhesion PVC jacket is specially formulated to resist sticking and wear in dynamic applications, meeting DIN VDE 0282 Part 10 requirements.
The cable operates safely at voltages up to 300V and maintains functional integrity in temperatures ranging from -5°C to 70°C. Its flame-retardant outer sheath complies with international fire safety standards including IEC 60332-1-2 and VW-1, ensuring added safety in industrial environments.
This control cable is unscreened, ideal for use in environments with minimal electromagnetic interference. It carries approvals from CE, UL (cRUus), CSA, NFPA 79, among others, underscoring its suitability for industrial and electrical power applications.
Fine-wire stranded copper conductor enhances flexibility and conductivity. Flame-retardant PVC outer sheath optimized for energy chain use. Suitable for freely suspended and gliding applications up to 50 meters. Rated for 300V voltage and temperature range -5°C to 70°C.
Conforms to international standards including CE, UL, CSA, IEC, NFPA 79. Grey jacket color for easy identification in installations. Designed for reliable performance in industrial automation and control systems. Unscreened configuration mitigates interference in controlled installations.
This product is manufactured in Germany and is intended for use across industrial automation, electrical power, manufacturing, and process control sectors. Suitable applications include factory automation wiring, machinery control circuits, and equipment requiring flexible, durable cabling solutions.
Browse more Control Cable products from Igus and related industrial wiring solutions at EnvMart for reliable automation and control infrastructure.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF130.UL control cable is rated for an operating voltage of 300V.
This model has a length of 50 meters.
It features 12 cores.
The maximum operating temperature for this control cable is 70°C.
The cable is constructed with fine-wire stranded copper conductors and has a polyvinyl chloride (PVC) outer sheath.
This model is unscreened, which helps reduce electrical interference in controlled environments.
The outer diameter of the cable is 13mm.
It is designed for industrial automation and control systems, particularly in applications needing free movement such as energy chains and gliding environments.
The cable's flame-retardant outer sheath complies with IEC 60332-1-2 and other international fire safety standards.
The minimum operating temperature for this control cable is -5°C.
This product is manufactured in Germany.
The American Wire Gauge (AWG) rating for this control cable is 16 AWG.
