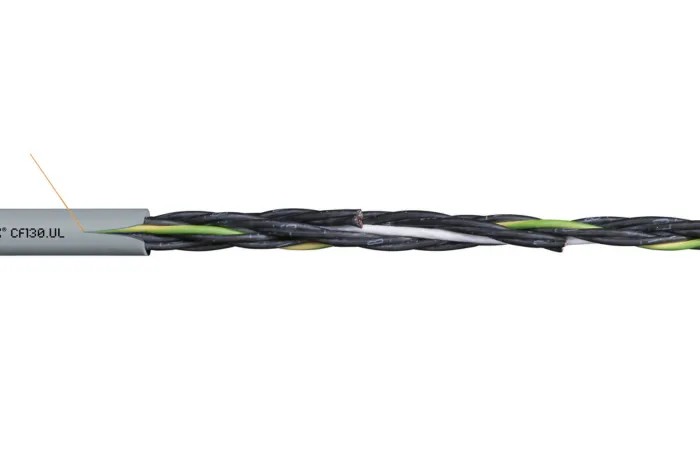

Igus Chainflex CF130.UL Control Cable, 12 Cores, 0.5mm² 20 AWG, Unscreened, Armoured, 50 m PVC Sheath 300V CF130.05.12.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF130.05.12.UL |
| Cable Length | 50m |
| Series | Chainflex CF130.UL |
| Outside diameter | 10mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- The cable features a grey polyvinyl chloride sheath offering flame retardant properties.
- It is torsion resistant and silicon-free, providing reliability in automation environments.
- Suitable for freely suspended applications up to 50 m and for use in Energy Chains®.
- Complies with standards CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, and VW-1.
- Operating temperature range from -5°C to 70°C supports diverse industrial environments.
- Constructed with fine-wire stranded bare copper conductors conforming to EN 60228.
- Designed primarily for medium load control requirements indoors.
- Its low-adhesion PVC outer sheath resists oil influence and supports gliding applications.
Product Description
Igus CF130.05.12.UL Control Cable is a high-quality, armoured PVC control cable with 12 cores, each having a conductor size of 0.5mm² (20 AWG). Rated for 300V, this versatile cable is unscreened and features a grey polyvinyl chloride sheath that is flame retardant, making it suitable for industrial automation and control applications.
The cable's conductor is made of fine-wire stranded bare copper wires complying with EN 60228 standards, ensuring excellent conductivity and flexibility. It is specifically designed for medium load control requirements in indoor environments.
This control cable is torsion resistant and silicon-free, which prevents adverse effects from oils and provides durability when installed in dynamic applications such as Energy Chains®. It is suitable for freely suspended travel distances and gliding applications up to 50 meters, reflecting its robust design.
Operating temperatures range from -5°C to 70°C, enabling reliable performance across various industrial and automation settings. The low-adhesion PVC outer sheath is optimized to meet DIN VDE 0282 Part 10 requirements, ensuring long-term protection and compliance with multiple international standards including CE, UL, CSA, IEC, and more.
The cable supports 12 cores with stranded copper conductors for flexibility and conductivity. It is armoured and unscreened, suitable for various industrial automation needs. The grey PVC sheath offers flame-retardant properties and resistance to oil contamination.
Designed for use in Energy Chains® with superior torsion resistance and mechanical performance. Certified to international safety and performance standards for industrial control cables.
This product is manufactured in Germany and is ideal for electrical, automation, manufacturing, machinery, and control system installations requiring reliable, medium-load control cables. It provides a dependable solution for transmitting control signals in demanding industrial environments.
Explore more Control Cables from Igus and other leading brands at EnvMart to meet your industrial automation and wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF130.UL Control Cable is rated for 300V.
This control cable can operate at a maximum temperature of 70°C.
The cable features 12 cores, each designed for medium load control requirements.
The conductors are made of fine-wire stranded bare copper, which ensures excellent conductivity and flexibility.
The Igus Chainflex CF130.UL Control Cable has a length of 50 meters.
The outer diameter of the cable is 10mm.
This model is unscreened, making it suitable for specific industrial applications.
The outer sheath is made from a low-adhesion mixture of polyvinyl chloride (PVC), optimized for use in Energy Chains®.
The cable features a flame-retardant outer sheath, ensuring compliance with safety standards.
The minimum operating temperature for this control cable is -5°C.
This control cable is manufactured in Germany.
It is suitable for industrial automation and control applications, particularly in dynamic environments such as Energy Chains®.
