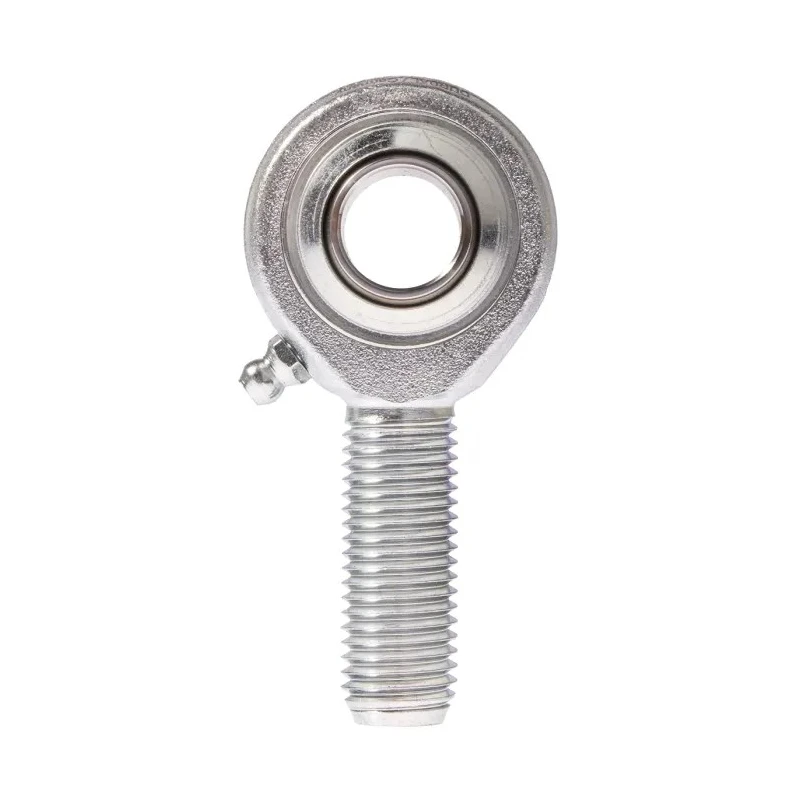

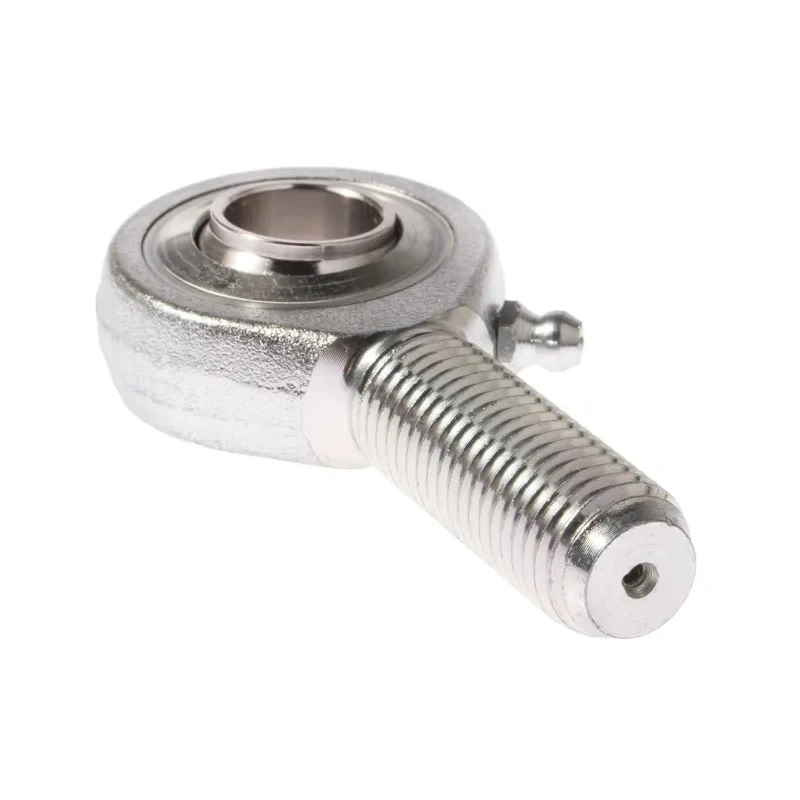

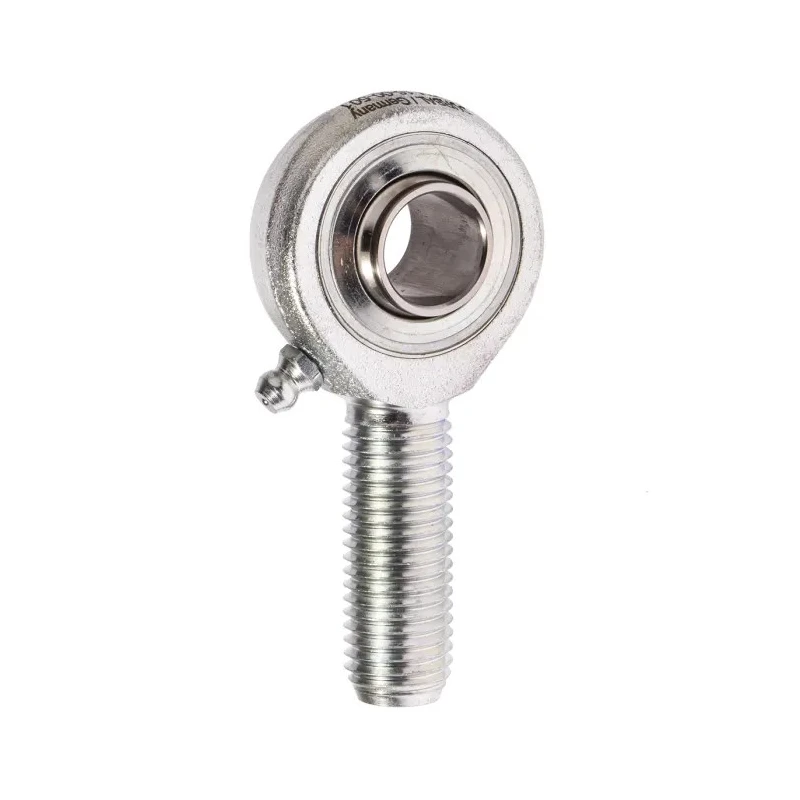

Durbal M14 x 2 Male Forged Steel Rod End Metric, 14mm Bore BRM 14-00-501

Durbal BRM 14-00-501 forged steel rod end metric features a robust M14 x 2 male thread and a 14 mm bore diameter designed for reliable rotary bearing applications in industrial and mechanical systems. The rod end housing is forged steel, tempered, case hardened, with ground and lapped bearing race and rolled thread with surface galvanization to provide excellent resistance to wear and corrosion.

The inner bearing ring is made of hardened ball bearing steel, superfine ground to ensure smooth operation with a bearing clearance of 15 to 40 μm radial tolerance. With a dynamic load rating of 5.6 kN and static load rating of 2 kN, this rod end is capable of withstanding substantial mechanical stresses.

This right-hand threaded rod end operates efficiently within a wide temperature range from -20 °C to +120 °C. It is low maintenance with possible lubrication using Polyrex EP2 or soap complex lubricant to prolong service life. The connection size M14 x 2 male thread ensures compatibility with metric threaded components.

Typical industrial applications include mechanical linkages, fluid power systems, rotary bearings, housing units, and tooling assemblies in manufacturing, automotive, construction, and agricultural machinery. It provides self-aligning capability to accommodate misalignment without compromising performance.

The outer diameter is 36 mm and overall width 78 mm, balancing compact design with robust mechanical properties. Manufactured in Germany under premium line standards, this rod end adheres to stringent quality controls for dependable use.

Constructed from forged steel with tempered, case hardened housing for enhanced strength. Features right-hand threaded M14 x 2 male connection for secure installation. Rated for dynamic load of 5.6 kN and static load of 2 kN suitable for demanding applications.

Operates efficiently in temperature range from -20 °C to +120 °C. Includes self-aligning bearing with 15 to 40 μm radial clearance for smooth movement. Outer diameter measures 36 mm with an overall width of 78 mm. Lubrication using Polyrex EP2 or soap complex recommended for maintenance.

Manufactured in Germany to premium line quality standards. Browse more premium Rod End Bearings and rotary bearing units in the Industrial Tools & Equipment category at EnvMart for diverse mechanical and fluid power applications.
