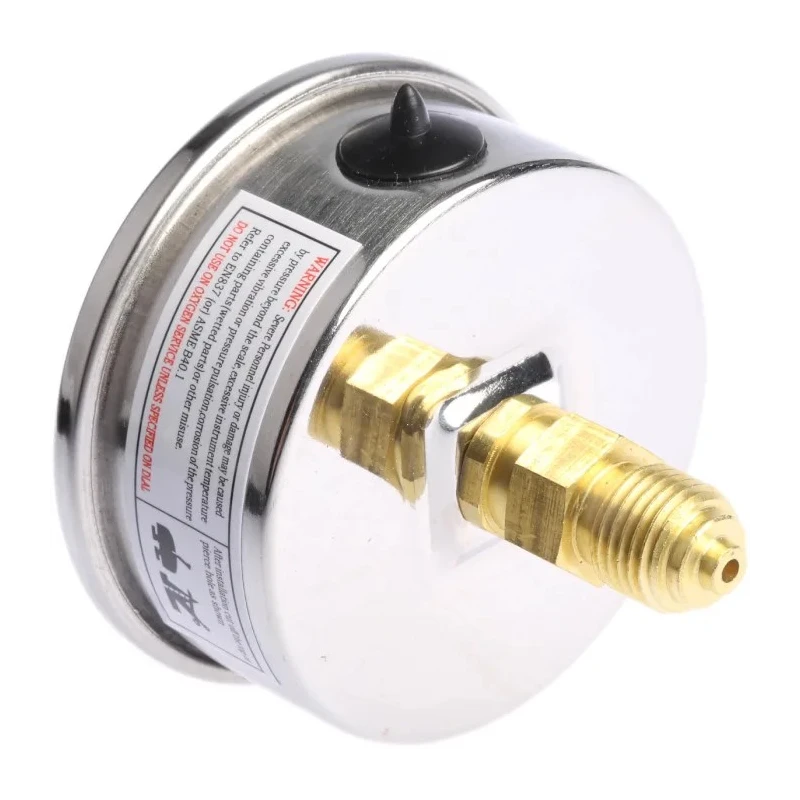

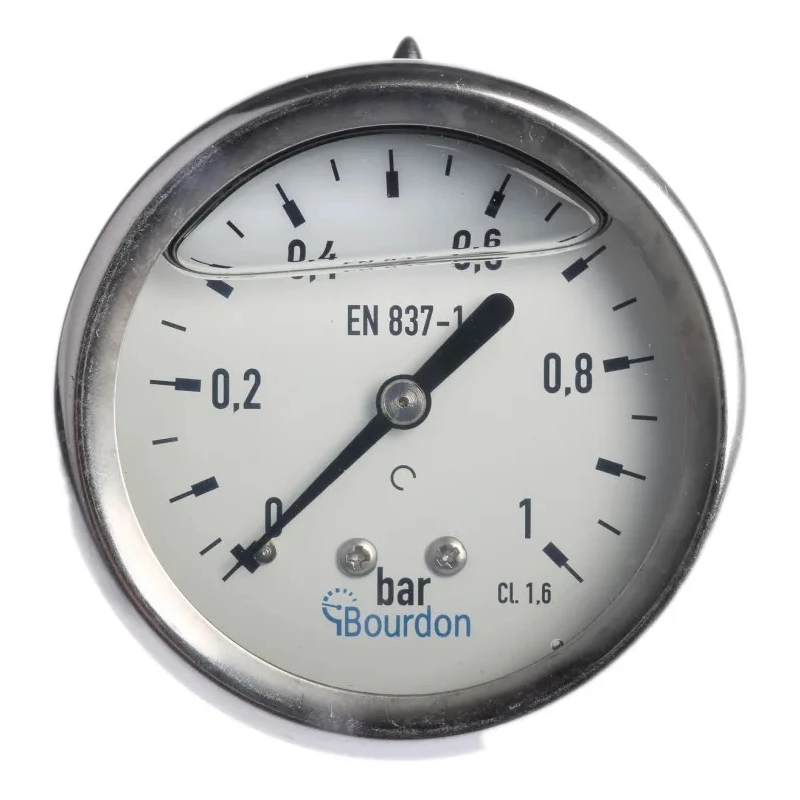

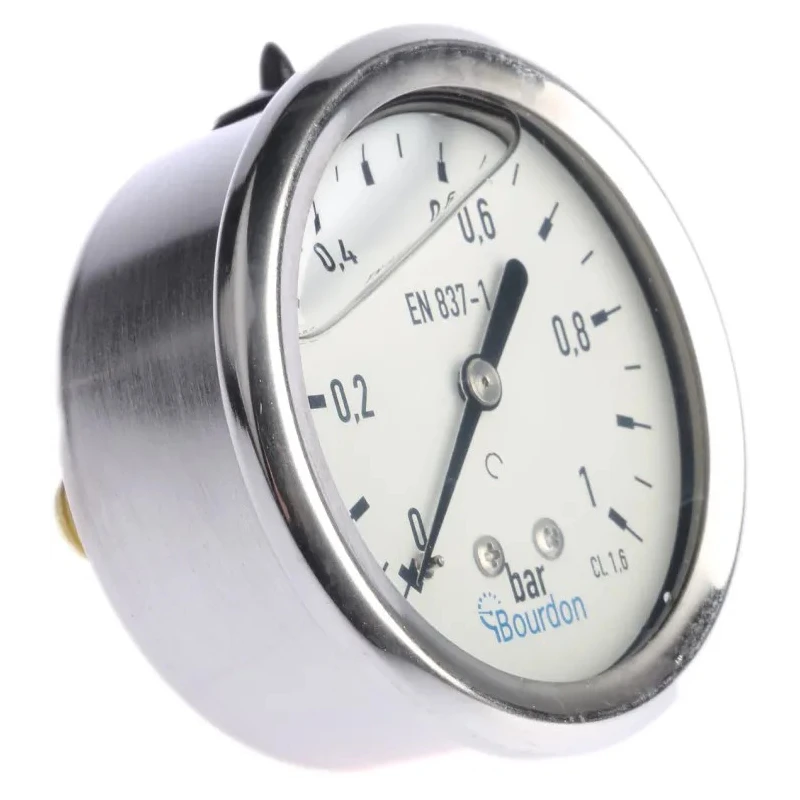

Bourdon 63 mm G 1/4 Pressure Gauge 1 bar Stainless Steel Case Back Entry Dial MIT3-F22.B15
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±1.6 % |
| Brand | Bourdon |
| Model | MIT3-F22.B15 |
| Case Material | Stainless Steel |
| Series | MIT3 |
| Maximum Operating Temperature | 70°C |
| Dial Size | 63mm |
| Connection Size | G 1/4 |
| Wetted Parts | Brass |
| PRESSURE CONNECTION | G 1/4 |
| Standards/Approvals | EN 837-1 |
| Maximum Pressure Measurement | 1bar |
| Minimum Pressure Measurement | 0bar |
| Connection Location | Back Entry |
| Dial Colour | White |
| RS PRO, 63 mm BSP 1/4 in 1/4 in BSP Pressure Gauge, 1 barRS Stock No. | 179-988Brand: RS PRO |
Key Features
- Designed for non-corrosive gases and liquids with back entry connection.
- Achieves ±1.6% accuracy as per EN 837-1 standards.
- Features a white dial and brass wetted parts for durability.
- Operates reliably up to a maximum temperature of 70°C.
- Complies with EN 837-1 pressure gauge standards for safety and performance.
- Pressure connection and size specified as G 1/4 BSP thread.
Product Description
The Bourdon MIT3-F22.B15 is a high-quality pressure gauge with a 63 mm dial size designed to measure pressures up to 1 bar, ideal for precise monitoring of fluid and pneumatic systems. Constructed with a robust stainless steel case and brass wetted parts, it offers excellent corrosion resistance, making it suitable for use with non-corrosive gases and liquids.
This gauge features a back entry G 1/4 pressure connection, enabling easy installation in tight spaces. The white dial enhances readability, while the gauge achieves accuracy within ±1.6% as stipulated by EN 837-1 standards, ensuring reliable performance in industrial, laboratory, HVAC, and manufacturing environments.
The Bourdon MIT3-F22.B15 pressure gauge is an essential instrument for precise pressure monitoring in pneumatic and hydraulic systems, supporting maintenance and operational efficiency.
Designed for non-corrosive gases and liquids with back entry connection. Achieves ±1.6% accuracy as per EN 837-1 standards. Features a white dial and brass wetted parts for durability. Operates reliably up to a maximum temperature of 70°C.
Complies with EN 837-1 pressure gauge standards for safety and performance. Pressure connection and size specified as G 1/4 BSP thread.
This pressure gauge is an excellent choice for use in industrial, laboratory, HVAC, and manufacturing settings requiring precision pressure measurement. Explore more high-quality measuring instruments in the Pressure Gauge category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement for this model is 1 bar.
This pressure gauge achieves an accuracy of ±1.6% as per EN 837-1 standards.
It features a stainless steel case and brass wetted parts, providing good corrosion resistance.
The dial size of this model is 63 mm.
It has a G 1/4 BSP thread connection with a back entry location.
It operates reliably up to a maximum temperature of 70°C.
It complies with EN 837-1 pressure gauge standards for safety and performance.
This model is designed for use with non-corrosive gases and liquids.
The connection size specified is G 1/4.
It is suitable for industrial, laboratory, HVAC, and manufacturing environments.
The dial color is white, which enhances readability.
This model belongs to the MIT3 series.
