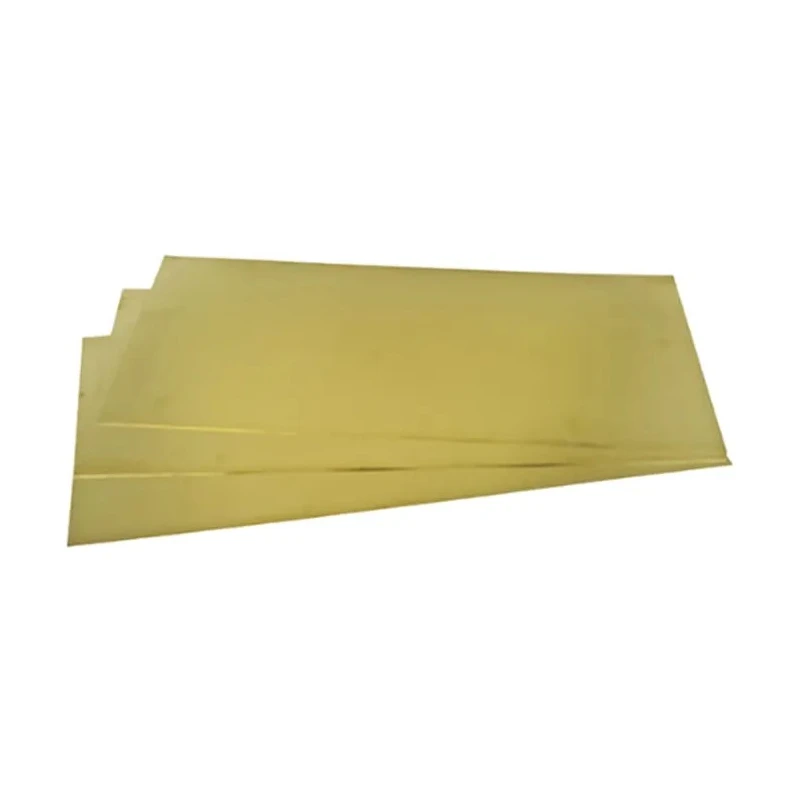

RS PRO High-Grade Brass Metal Sheet 600 mm x 300 mm 0.45 mm Thickness 841-1906
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Brass |
| Colour | Yellow |
| THICKNESS | 0.45mm |
| Length | 600mm |
| Model | 841-1906 |
| Width | 300mm |
| Tensile Strength | 550MPa |
| Density | 8.44g/cm³ |
| Hardness | 55 to 180 HV |
| Thermal Conductivity | 116W/mK |
| Standards/Approvals | RoHS |
| Perforated/Solid | Solid |
| RS PRO Brass Metal Sheet 600mm x 300mm, 0.3mm ThickBrand | RS PRO |
Key Features
- Manufactured from high-grade CZ108 (CW508L) alpha brass alloy.
- Solid yellow brass sheet suitable for cold-working, bending, soldering, and brazing.
- Thickness of 0.45 mm ensures good machinability and weldability at low speeds.
- Corrosion-resistant with hardness ranging from 55 to 180 HV.
- Tensile strength rated at 550 MPa for mechanical durability.
- Thermal conductivity of 116 W/mK enabling efficient heat transfer applications.
- Ideal for manufacturing lamp-caps, switch components, radiators, heat exchangers, and general coppersmithing tasks.
- Meets RoHS standards for environmental and safety compliance.
Product Description
RS PRO 841-1906 brass metal sheet offers a high-quality solid metal solution measuring 600 mm by 300 mm with a thickness of 0.45 mm. Made from premium CZ108 (CW508L) alpha brass alloy, this sheet is designed for industrial use where excellent bending and machinability are essential. Its solid yellow brass composition provides excellent corrosion resistance, making it suitable for various applications including soldering and brazing.
The sheet's tensile strength reaches up to 550 MPa, while its hardness ranges between 55 and 180 HV, ensuring mechanical robustness. With a thermal conductivity rating of 116 W/mK, it efficiently supports heat transfer, advantageous for constructing radiators and heat exchangers. The density of 8.44 g/cm³ confirms material consistency and weight.
Its dimensions of 600 mm length by 300 mm width and a thin thickness of 0.45 mm make it highly versatile for general-purpose applications such as cold working, forming chains, eyelets, rivets, lamp-caps, switch components, and other electrical industry parts. This RS PRO sheet adheres to RoHS standards confirming its compliance with environmental safety requirements.
This metal sheet is part of the reliable RS PRO brand range, known for rigorous quality testing and industrial-grade consistency, providing confidence for engineers and manufacturers.
Manufactured from premium CZ108 alpha brass alloy ensuring durability. Solid sheet with thickness of 0.45 mm for strength and flexibility. Excellent corrosion resistance suitable for diverse industrial applications. High tensile strength of 550 MPa for demanding mechanical uses.
Thermal conductivity facilitates effective heat dissipation. Compatible with soldering and brazing processes at low machining speeds. Compliant with RoHS environmental standards. Dimensions and density optimized for quality assurance and versatility.
Suited for manufacturing lamp-caps, switches, radiator parts, and more. Consistent quality under RS PRO brand seal of approval. Explore more RS PRO industrial Metal Sheets and materials on EnvMart for your mechanical and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The brass metal sheet measures 600 mm in length and 300 mm in width, with a thickness of 0.45 mm.
It is manufactured from high-grade CZ108 (CW508L) alpha brass alloy, known for its excellent machinability and corrosion resistance.
The tensile strength of this brass sheet is rated at 550 MPa, providing mechanical durability for various applications.
The thermal conductivity is rated at 116 W/mK, which facilitates efficient heat transfer applications.
The hardness of this sheet ranges from 55 to 180 HV, making it suitable for various industrial applications.
Yes, it meets RoHS standards for environmental and safety compliance.
It is ideal for manufacturing lamp-caps, switch components, radiators, heat exchangers, and general coppersmithing tasks.
The density of this brass metal sheet is 8.44 g/cm³, confirming material consistency and weight.
Yes, it is suitable for cold-working, bending, soldering, and brazing processes at low machining speeds.
The country of origin for this brass sheet is India.
The sheet is a solid yellow color, characteristic of brass materials.
Its solid construction, excellent corrosion resistance, and good machinability at low speeds make it versatile for various industrial applications.
