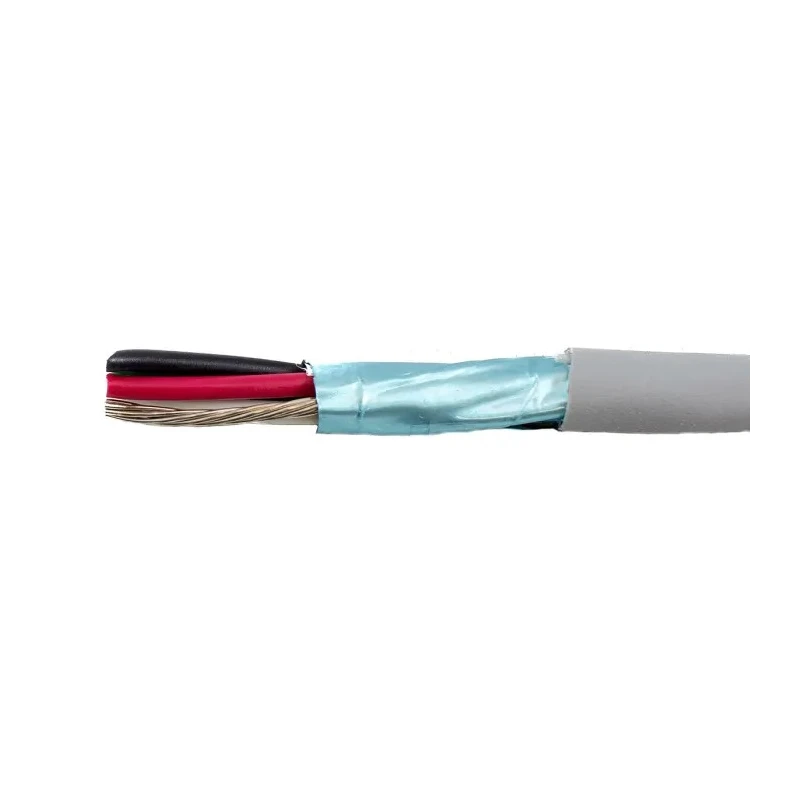

Alpha Wire Ecogen Ecocable Mini Screened Control Cable 4 Cores 0.24mm² 24 AWG, Grey Modified Polyphenylene, 30 m 78124 SL005

Alpha Wire 78124 SL005 Ecogen Ecocable Mini screened control cable is a high-quality electrical cable designed for industrial automation, communication, and control applications. It features four color-coded conductors (black, brown, red, orange) made of tin copper wire with fine strand construction (19 strands x 0.127 mm) wrapped within a 0.24 mm² 24 AWG specification, providing excellent mechanical flexibility and electrical conductivity.

The cable is screened with an aluminium/polyester foil shield combined with a tinned copper drain wire to minimize electromagnetic interference (EMI), making it suitable for electrically noisy environments. The grey jacket is composed of modified polyphenylene ether (mPPE), a thermoplastic material known for its excellent dielectric properties, low specific gravity, and halogen-free status, which results in a lightweight and environmentally friendly cable that is fully recyclable.

Rated for 300 V nominal voltage and operating safely within the temperature range of -40°C to 80°C, this screened Control Cable meets stringent safety standards including CE, CSA, UL, RoHS, REACH, and WEEE. The compact construction with a 3.35 mm nominal outside diameter and thin jacket thickness (0.015 inch/0.38 mm) supports tight routing and space-saving installations in electrical panels and control systems.

Applications include use in radio transmitters, telecommunication equipment, electronic circuits, factory automation, and compliance with NFPA 79 standards to protect industrial machinery and operators from fire and electrical hazards. The 30 meter length provides flexibility for multiple-site installations or retrofit projects.

Constructed with tin copper wire conductors for superior conductivity and flexibility. Screened with aluminium/polyester foil for protection against EMI. Grey modified polyphenylene ether (mPPE) jacket provides halogen-free, durable insulation.

Rated for 300 V nominal voltage with temperature tolerance from -40°C to 80°C. Halogen-free and low outgassing for enhanced safety and environmental benefits. Compact 3.35 mm outside diameter supports space-efficient cable management.

Complies with CE, CSA, UL, RoHS, REACH, and WEEE standards. Ideal for industrial, laboratory, telecommunication, and automation environments. Meets NFPA 79 standards for electrical safety in industrial machinery.

This product is part of EnvMart's extensive selection of industrial-grade cables trusted for high performance and reliability in demanding environments. Browse our comprehensive catalog for additional cable solutions and accessories to fulfill your project requirements.
