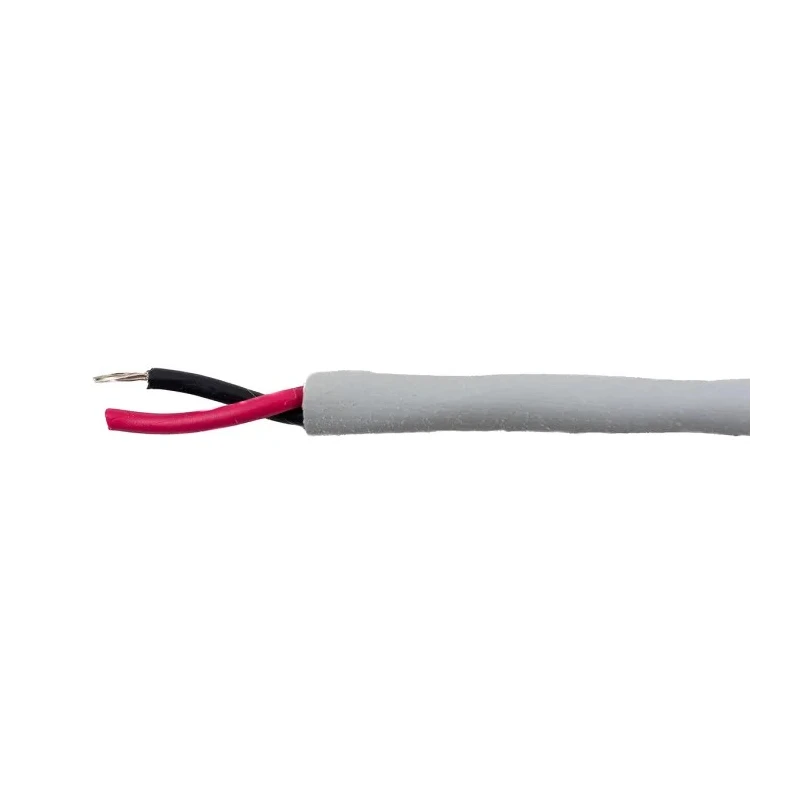

Alpha Wire EcoCable Mini Control Cable 2 Cores 0.38 mm² 22 AWG Unshielded Grey Modified Polyphenylene Ether 78032 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78032 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.2mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.126 inch (3.20 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Unscreened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.38mm² |
| Conductors | 2, Black, Brown |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/34 |
Key Features
- Cable consists of 2 tinned copper conductors colored black and brown.
- Nominal conductor size is 0.38 mm² (22 AWG) with 19 strands each of 0.127 mm diameter.
- Jacket and insulation made from recyclable modified polyphenylene ether with excellent dielectric properties.
- Rated for temperature range -40°C to 80°C, suitable for extreme environmental conditions.
- Halogen-free and lightweight with a small diameter of 3.2 mm.
- Compliant with CSA, CE, and UL standards ensuring safety and quality assurance.
- Suitable for industrial, automation, telecommunication, and electronic circuit applications.
- Meets NFPA 79 standards for industrial machinery safety.
Product Description
Alpha Wire 78032 SL005 EcoCable Mini Control Cable 2 Cores 0.38 mm² 22 AWG is an unscreened control cable with a grey modified polyphenylene ether (mPPE) jacket and insulation. It is designed for industrial and automation wiring with a voltage rating of 300 V and a cable length of 30 meters.
The conductors are made of tinned copper wire with 19 strands each of 0.127 mm diameter, arranged to provide flexibility and durability. The cable features a nominal outside diameter of 3.2 mm and includes insulation and jacket thicknesses optimized for performance and weight reduction.
Notably, the mPPE material offers excellent dielectric properties allowing thinner walls, contributing to a lightweight, flexible cable that is up to 65% lighter and thinner than standard PVC counterparts. It is 100% recyclable and halogen-free, ensuring low outgassing and safer handling in industrial environments.
This cable is rated for a wide temperature range from -40°C to 80°C making it suitable for harsh environmental and industrial conditions. It is UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 approved, ensuring compliance with strict safety and environmental standards.
Typical applications include use in radio transmitters, electronic circuits, telecommunication systems, automation equipment, and studio installations. It also meets requirements for NFPA 79 industrial machinery safety standards which help protect equipment and operators from fire and electrical hazards.
The cable is unscreened with 2 conductors colored black and brown for easy identification. It offers halogen-free fire behavior and is made from mPPE for enhanced electrical insulation and environmental friendliness. Its compact 3.2 mm diameter and lightweight design facilitate easier installation in constrained or mobile applications.
The EcoCable Mini series provides a reliable, flexible solution for control wiring in industrial and automation systems. The cable is supplied in a 30 meter reel, facilitating easy deployment and measurement on-site.
This Alpha Wire Control Cable stands out as a premium option for demanding electrical automation tasks requiring performance, safety, and sustainability. Browse the Electronics & Electricals category on EnvMart for more high-quality cables and wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300V, suitable for various industrial applications.
It is rated for a temperature range of -40°C to 80°C, making it suitable for harsh environmental conditions.
This control cable consists of 2 conductors, colored black and brown for easy identification.
The nominal conductor size is 0.38 mm², which is equivalent to 22 AWG.
The insulation and jacket are made from modified polyphenylene ether (mPPE), which offers excellent dielectric properties and is halogen-free.
The outside diameter of the cable is 3.2 mm, facilitating easier installation in constrained spaces.
Yes, it is compliant with CSA, CE, and UL standards, ensuring safety and quality assurance.
The cable is supplied in a length of 30 meters, which allows for flexible deployment in various applications.
Each conductor consists of 19 strands, each with a diameter of 0.127 mm, providing flexibility and durability.
It is suitable for industrial, automation, telecommunication, and electronic circuit applications.
The cable exhibits halogen-free fire behavior, contributing to safer handling in industrial environments.
The insulation thickness is 0.007 inches (0.18 mm), optimized for performance and weight reduction.
