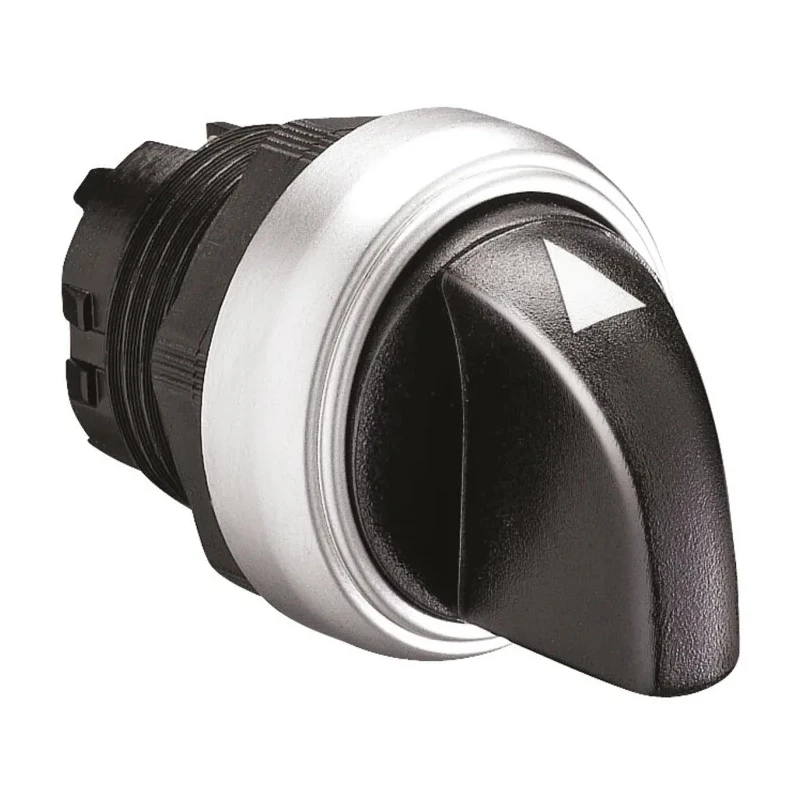

Lovato Electric Platinum Series 3 Position Selector Switch Head 22mm Cutout Black Handle LPCS132

Free Delivery in India | Lowest Global Shipping Charges

Lovato Electric Platinum Series 3 Position Selector Switch Head 22mm Cutout Black Handle LPCS132

Name: Lovato Electric Platinum Series 3 Position Selector Switch Head 22mm Cutout Black Handle LPCS132
Brand: LOVATO Electric
SKU: 251328
Price: 1768.75 INR
Availability: InStock



Category Selector Switch Head Brand LOVATO Electric Condition New

Specifications

Country of Origin	Italy
Brand	Lovato Electric
Operating Temperature	-25 → +70 °C
Model	LPCS132
IP Rating	IP66, IP67, IP69K
Series	Platinum
Number of Positions	3
Switch Operation	Latching
Actuator Colour	Black
Mechanical Life	1000000Operations
Angle of Throw	45 °
Cutout Diameter	22mm
EAO EAO 44 Selector Switch Head - 3 Position, Spring Return from RightBrand	EAO

Key Features

The switch head has three positions ensuring versatile control.
Features a durable polyamide actuator for long mechanical life.
Designed with an ergonomic black handle for comfortable grip and easy operation.
Has an angle of throw of 45 degrees for precise switching.
Implements IP66, IP67, and IP69K ratings for protection against dust and moisture.
Operates reliably within a temperature range from -25 to +70 degrees Celsius.
Meets industrial standards including UL 508, EN 60947-5-1, IEC/EN 60947-1, and CSA C22.2 for high safety and performance.
Offers up to 1,000,000 mechanical operations ensuring extended lifespan.

Product Description

Lovato Electric LPCS132 Platinum Series 3 Position Selector Switch Head is engineered for industrial and automation applications requiring reliable and precise switch position control. The selector switch head features a 22 mm cutout diameter and is supplied with a black ergonomic handle designed for firm grip and ease of operation.

Constructed from durable polyamide material, this selector switch actuator delivers robust performance with lifespan up to 1,000,000 mechanical operations. The latching switch operation mechanism provides stable position retention across three distinct positions with a 45-degree angle of throw for clear position indication.

The switch head is IP66, IP67, and IP69K rated, making it well suited for harsh environments requiring resistance to dust, high pressure water jets, and steam cleaning. It operates over a temperature range from -25 to +70 degrees Celsius, ensuring dependable function in industrial, manufacturing, and automation settings.

Standards compliance with UL 508, EN 60947-5-1, IEC/EN 60947-1, and CSA C22.2 certifies its quality and safety for integration into control panels and machinery. The snap-on fixing mounting adapter facilitates quick and flexible installation, allowing the switch head to be mounted in any desired orientation for ease of use.

The switch head has three positions ensuring versatile control. Features a durable polyamide actuator for long mechanical life. Designed with an ergonomic black handle for comfortable grip and easy operation. Has an angle of throw of 45 degrees for precise switching.

Implements IP66, IP67, and IP69K ratings for protection against dust and moisture. Operates reliably within a temperature range from -25 to +70 degrees Celsius. Meets industrial standards including UL 508, EN 60947-5-1, IEC/EN 60947-1, and CSA C22.2 for high safety and performance.

Offers up to 1,000,000 mechanical operations ensuring extended lifespan. Easy snap-on mounting adapter allows flexible installation positions.

This selector switch head is ideal for use in industrial electrical systems, automation controls, commercial machinery, and manufacturing processes requiring durable and high-quality rotary selector switches.
