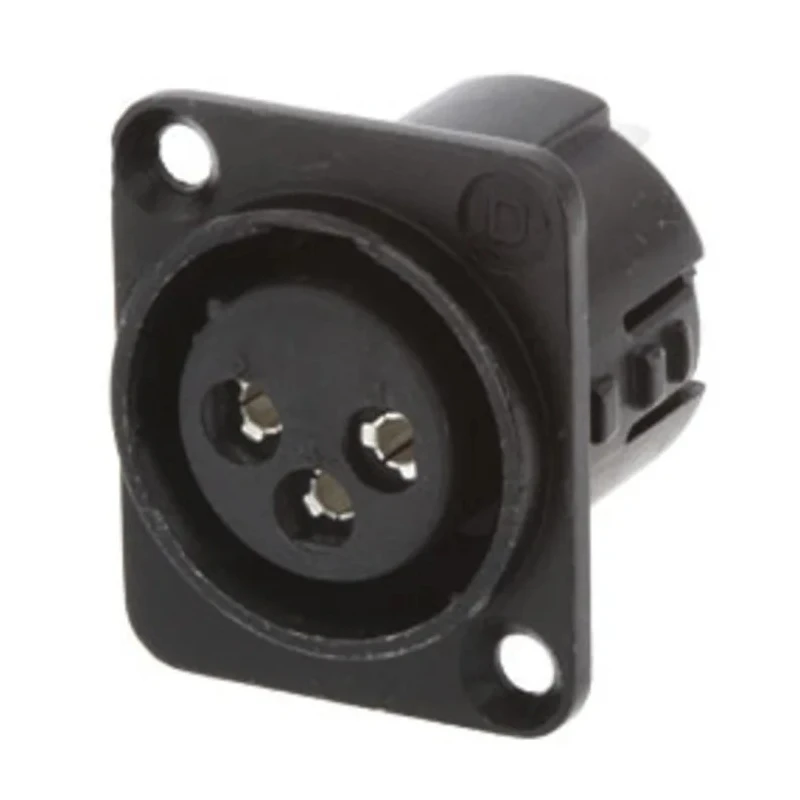

Deltron Panel XLR Connector Straight 50V AC Female 3 Way Silver Plating 716-0301

Deltron 716-0301 panel XLR Connector is a high-quality, straight 3-way female connector designed to operate at 50V AC with a current rating of 15A. It is intended for use in both commercial and industrial electronic applications where reliability and elimination of RF and mechanical interference are critical.

The connector housing is manufactured with rugged diecast zinc alloy, providing superior RF shielding and mechanical strength. The insert is thermoplastic, offering excellent mechanical, thermal, and electrical properties along with chemical resistance and dimensional stability. Contacts are precision-machined brass with a silver plating finish, ensuring robust electrical contact and corrosion resistance. The generous solder buckets accommodate a wide range of cable sizes.

Designed for panel mounting with a straight orientation, this connector measures 31.6 mm in length and uses secure screw termination. Operating temperature ranges from -25°C to 70°C, making it suitable for harsh environments. The unique latching mechanism ensures positive plug mating and retention but requires no mechanical operation to disengage; simply pulling the plug releases it efficiently.

This connector is fully interchangeable with major XLR manufacturers and is ideal for use in mixing desks, tape and video recorders, DAT recorders, test instrumentation, and all applications requiring dependable AV connections.

This connector supports a maximum current of 15A for reliable power delivery. The housing is made from rugged zinc alloy diecasting, offering full RF protection. Contacts are precision machined from brass with generous solder buckets to fit various cable sizes.

The termination type is screw, ensuring secure and easy wiring. Operating temperature range is from -25°C to 70°C, suitable for many industrial environments. The connector features a unique latching design that allows simple plug release without mechanical operation.

Suitable for commercial and industrial electronics, including audio and video equipment. Silver plating on contacts and connector body provides corrosion resistance and durability. Length of the connector is 31.6 mm, with panel mounting and straight orientation.

Country of origin is United Kingdom. This connector meets industry standards for quality and reliability. Explore more audio/video connectors and industry-grade electronic components from Deltron and other trusted brands at EnvMart.
