SICK Sensor Actuator Cable 5 Way Female M12 to Unterminated Grey PVC Jacket 2m 125V YG2A15-020VB5XLEAX

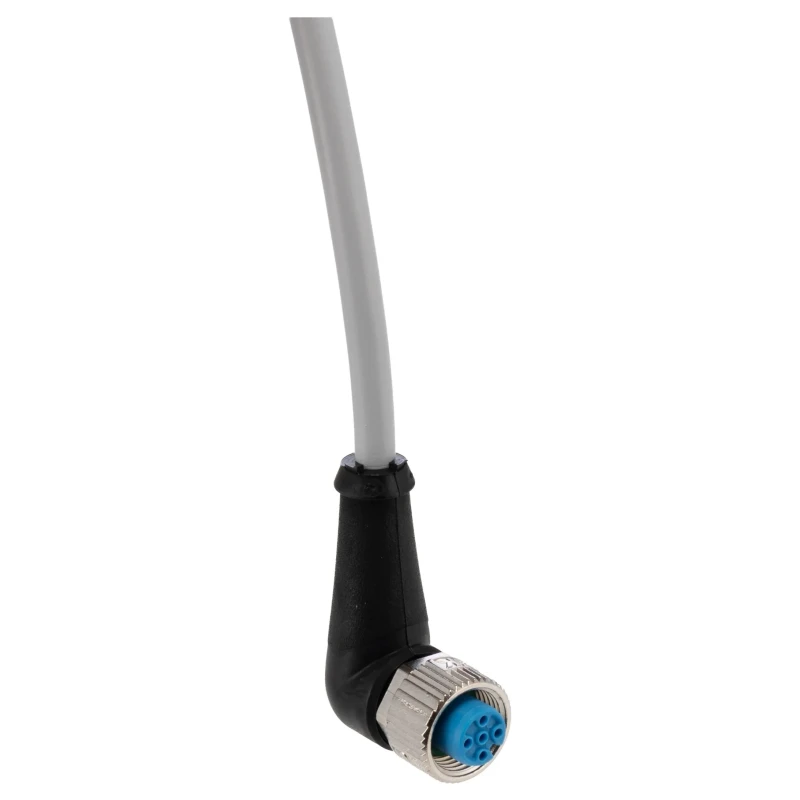

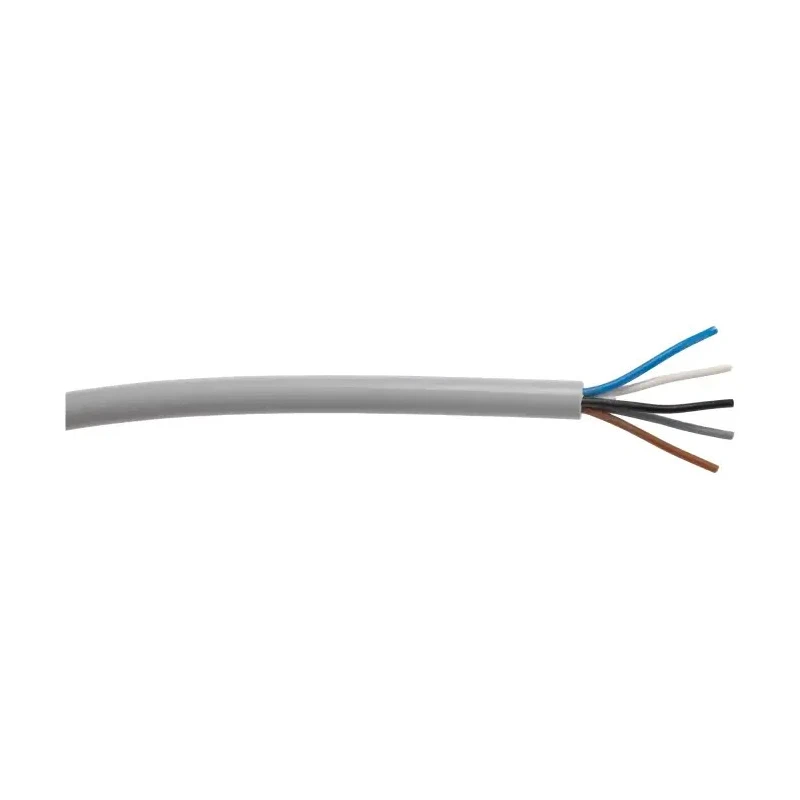

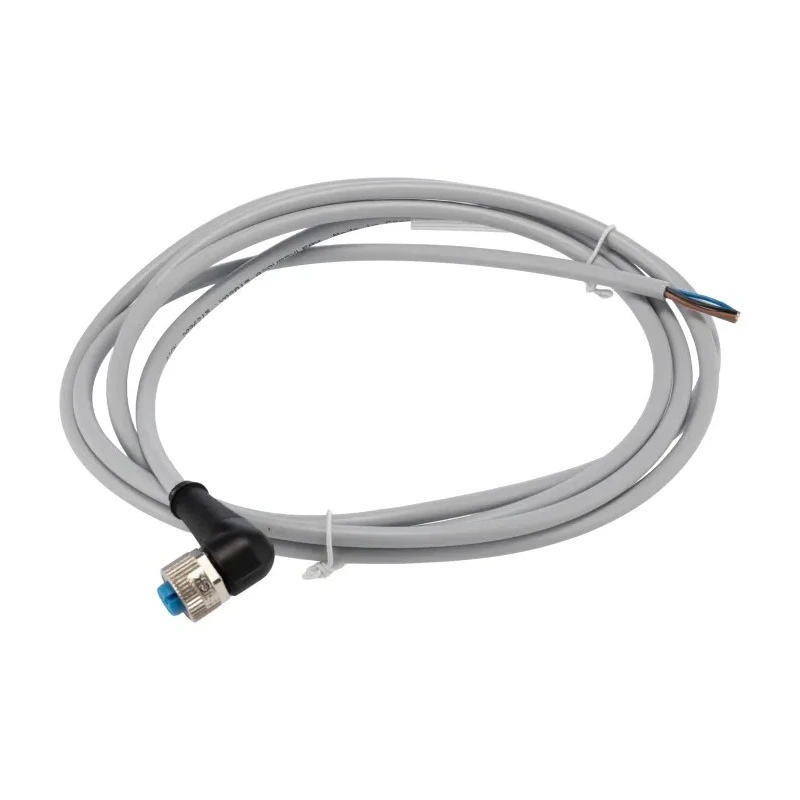

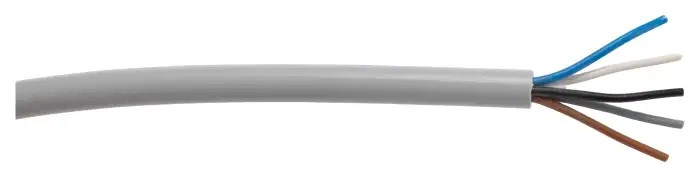

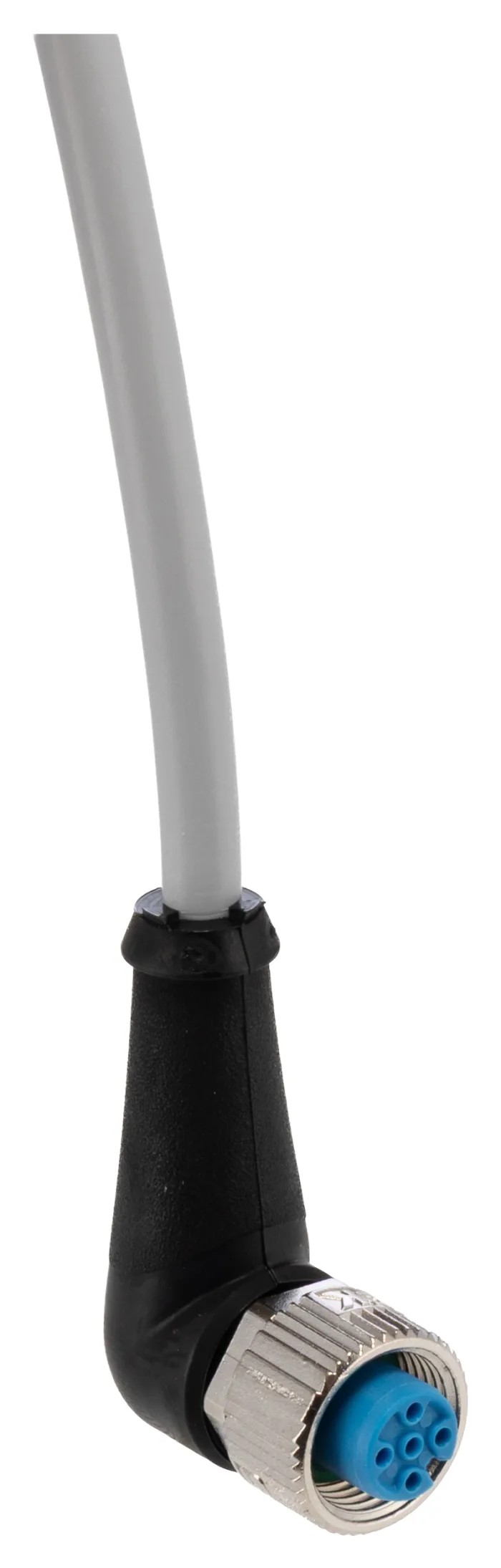

The SICK YG2A15-020VB5XLEAX sensor actuator cable is a specialized 2 meter long grey cable with a robust polyvinyl chloride (PVC) jacket providing resistance to chemical exposure and mechanical stress in industrial environments. It features a 5-pin female M12 connector on one end to interface with devices and unterminated leads on the other end to allow flexible integration with equipment requiring flying leads.

Designed for automation and control applications, this cable supports a nominal voltage of 125V and can continuously carry 4 Amps of current, making it suitable for a wide range of standard sensor and actuator signaling tasks. The cable is unshielded, optimized for environments where external noise screening is either unnecessary or provided elsewhere in the system.

The cable assembly is rated for ingress protection levels IP65, IP66K, and IP67, ensuring reliable operation in wet, dusty, or harsh conditions often encountered on factory floors and production lines. The screw-type locking nut on the M12 connector securely fastens the connection with a tightening torque of 0.6 Nm, preventing loosening during machine vibrations or movement.

This cable is engineered to function reliably within a dynamic temperature range from -5°C to +80°C, suitable for applications involving routine flexing and motion. The individual conductors have a cross-sectional area of 0.34 mm² and are housed within the PVC jacket that offers chemical resistance and durability.

Materials used include a thermoplastic polyurethane (TPU) connector body and fluoroelastomer (FKM) seals, contributing to the cable's mechanical integrity and chemical compatibility. This sensor actuator cable is ideal for wiring proximity sensors on industrial production lines, actuator control modules with flying leads, sensor networks within machine tools, and retrofit harnesses in factory automation setups.

Rated IP65, IP66K, and IP67 for use in wet or dusty industrial environments. 2 meter length delivers extended reach without additional joints. 5-pin female M12 interface facilitates plug-and-play connectivity. Grey PVC jacket resists chemical exposure and mechanical wear.

Supports 125V sensor and actuator voltage levels and 4A continuous current capacity. Screw-type locking nut ensures secure connector retention at 0.6 Nm torque. Operational temperature range from -5°C to +80°C under dynamic flexing conditions.

Unshielded construction suitable where external screening is available or not required. TPU connector body and FKM seals enhance chemical compatibility and durability. Applications include sensor wiring, actuator connections, sensor networks, and factory automation retrofit harnesses.
