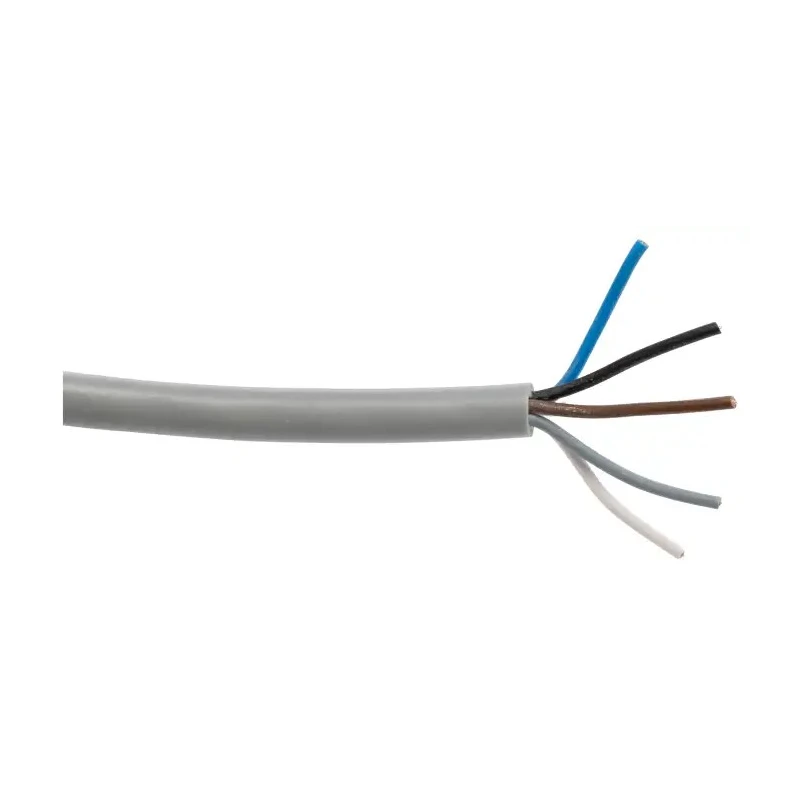

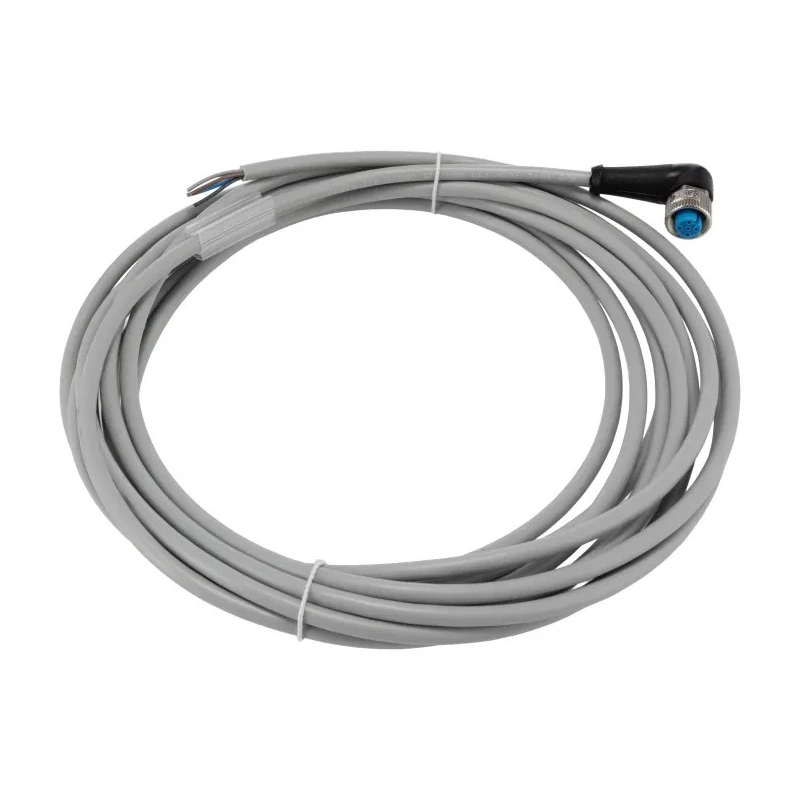

SICK Sensor Actuator Cable Female 5 way M12 to Unterminated Grey PVC Jacket 5 m YG2A15-050VB5XLEAX
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | SICK |
| Model | YG2A15-050VB5XLEAX |
| IP Rating | IP65, IP66K, IP67 |
| Cable Length | 5m |
| Series | YG2A15 |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, UL |
| Connector Type A | M12 |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Number of Contacts A | 5 |
| Coding | A |
| Connector Gender B | Unterminated |
Key Features
- Supports low-voltage control circuits rated for up to 125 volts.
- Durable grey PVC outer jacket offers mechanical and chemical resistance.
- Five-core conductor design with 0.34 mm² cross-section for reliable signal transmission.
- IP65/IP66K/IP67 ingress protection rating for washdown and outdoor use.
- Flexible operation range from −5°C to +80°C suitable for dynamic and stationary use.
- Unshielded design enhances flexibility for tight routing.
- Current rating up to 4 amperes for typical sensor loads.
- Connector housing made of TPU with nickel-plated zinc die-cast locking nut and FKM seal.
Product Description
SICK YG2A15-050VB5XLEAX Sensor Actuator Cable is a high-quality 5 meter cable designed to connect M12-equipped sensors with unterminated flying leads for direct wiring in industrial automation and electrical systems.
This cable is engineered for use in harsh environments where mechanical wear and chemical exposure are concerns. The robust grey PVC jacket protects the internal conductors and ensures durability during installation and operation.

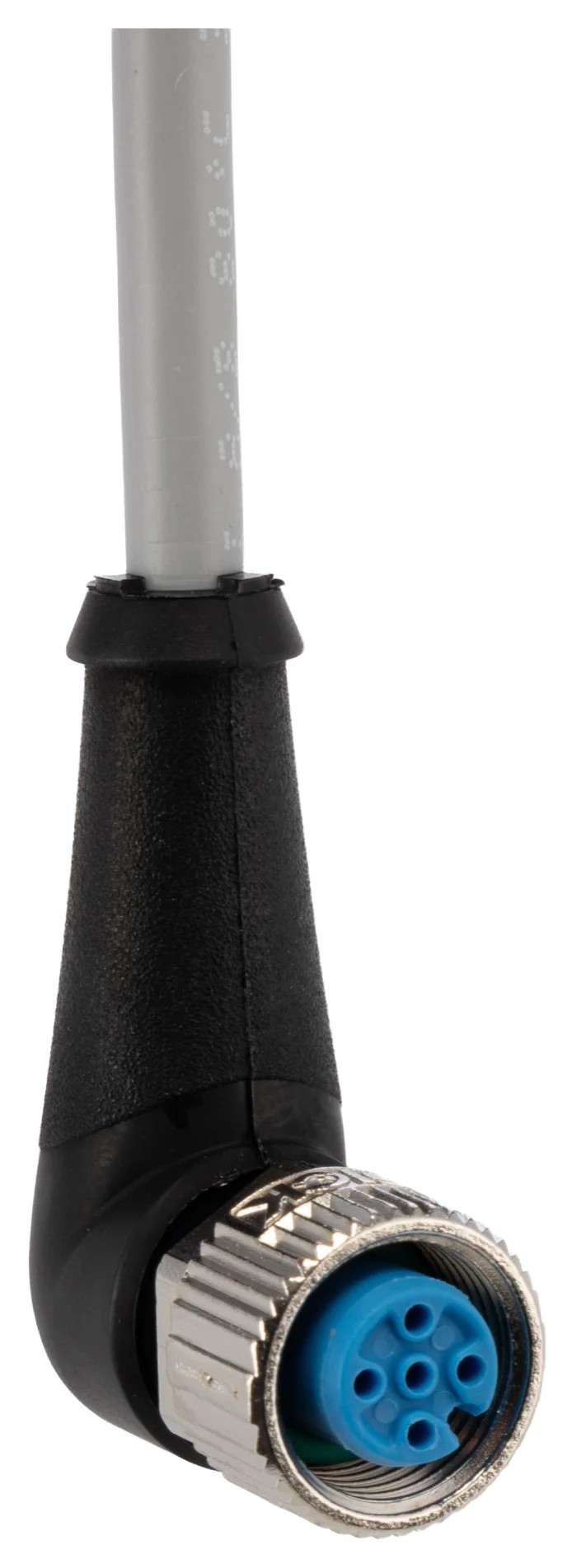

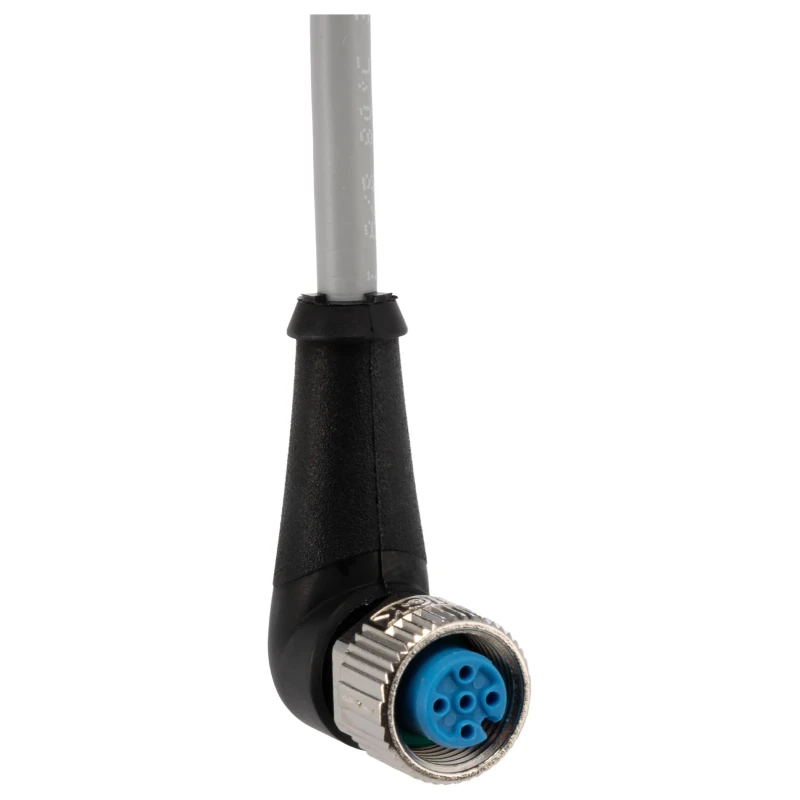

Equipped with a 5-pin A-coded M12 female connector at one end with angled orientation and screw termination, and unterminated flying leads at the other end, it allows for straightforward integration in factory automation, processing plants, and conveyor control applications.
The cable supports operating voltages up to 125 volts and carries currents up to 4 amperes, making it suitable for standard sensor and actuator loads. The unshielded 0.34 mm² five-conductor design balances signal reliability with ease of flexible routing.
Rated to IP65, IP66K, and IP67 ingress protection levels, the cable can withstand washdowns and outdoor exposure, while the connector's TPU housing, nickel-plated zinc die-cast locking nut, and FKM seals provide enhanced chemical resistance and mechanical security.
The minimum bending radius exceeds 10 times the cable diameter during flexing, ensuring reliable performance even in dynamic installations. Supports low-voltage control circuits rated for up to 125 volts. Durable grey PVC outer jacket offers mechanical and chemical resistance.
Five-core conductor design with 0.34 mm² cross-section for signal transmission. IP65/IP66K/IP67 ingress protection for washdown and outdoor use. Flexible temperature range from −5°C to +80°C suitable for dynamic use. Unshielded cable improves flexibility for tight installations.
Connector housing made from TPU with nickel-plated zinc die-cast locking nut. FKM seals enhance chemical resistance. Minimum bending radius is greater than 10x cable diameter during flexing. Ideal for factory automation, actuator connections, and retrofit sensor wiring.
This sensor actuator cable enables reliable and durable connections in demanding industrial environments and is suitable for a variety of automation and process control applications.
Explore more sensor and actuator cables in EnvMart's Electronics & Electricals category for enhanced industrial connectivity solutions.
Explore more products in our Sensor & Actuator Cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this cable is 125 volts, making it suitable for low-voltage control circuits.
This model has a length of 5 meters, which allows for flexible installation in various settings.
It features a 5-pin A-coded M12 female connector at one end and unterminated flying leads at the other end for direct wiring.
The cable is rated for IP65, IP66K, and IP67, providing protection against dust and water, suitable for washdown and outdoor use.
The current rating for this sensor actuator cable is up to 4 amperes, making it suitable for typical sensor loads.
The cable jacket is made of durable grey polyvinyl chloride (PVC), offering mechanical and chemical resistance.
This cable operates effectively within a temperature range of −5°C to +80°C, suitable for both dynamic and stationary applications.
The minimum bending radius exceeds 10 times the cable diameter during flexing, ensuring reliable performance in dynamic installations.
This model complies with CE and UL standards, ensuring it meets relevant safety and performance criteria.
It is designed for use in harsh environments where mechanical wear and chemical exposure are concerns, making it ideal for industrial automation.
The unshielded design enhances flexibility, allowing for easier routing in tight installations without compromising signal reliability.
This cable is suitable for factory automation, actuator connections, and retrofit sensor wiring in various industrial settings.
