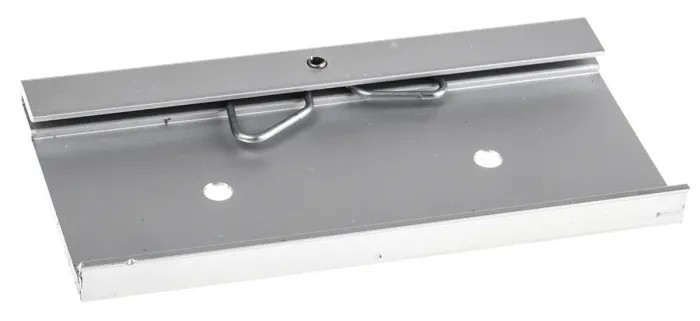

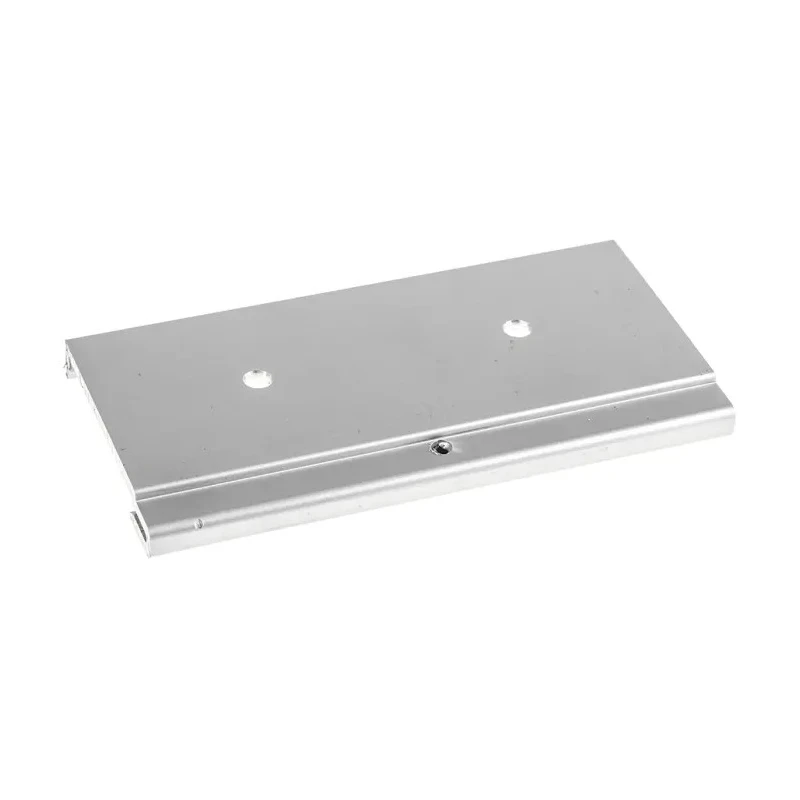

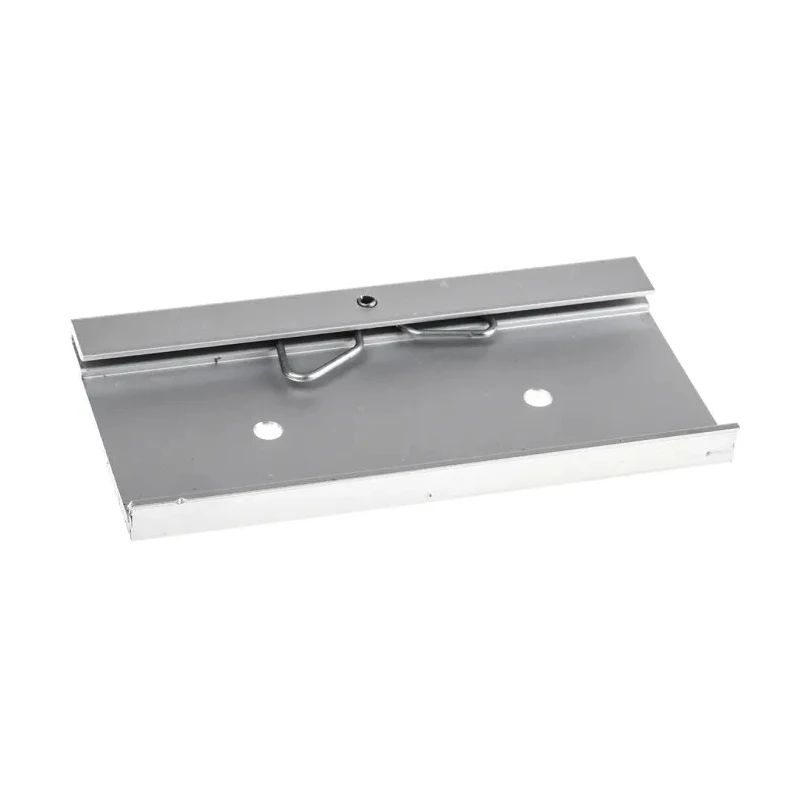

Hammond Aluminium DIN Rail Clip for Use with 35 mm DIN Rail 51 mm x 100 mm x 8 mm 1427DIN100M

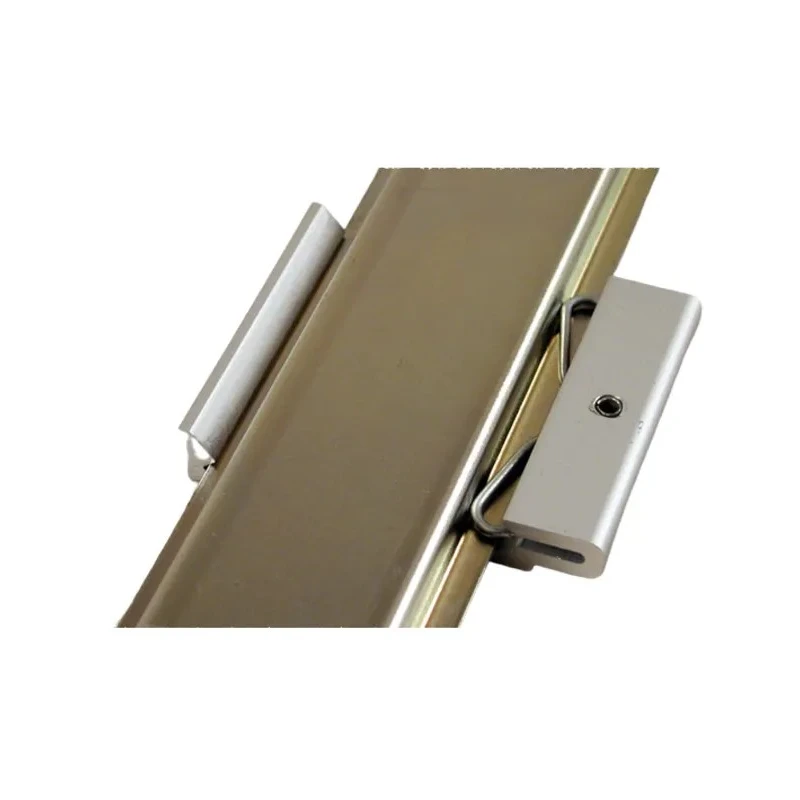

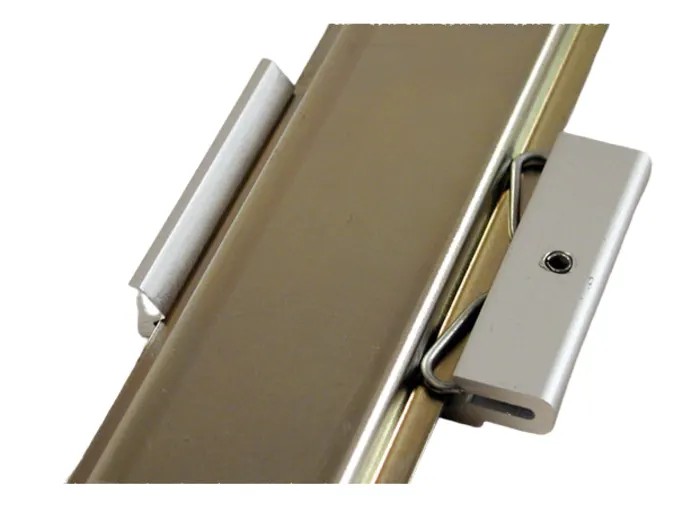

Hammond 1427DIN100M Aluminium DIN Rail Clip is engineered to facilitate mounting of heavy-duty enclosures on a standard 35 mm DIN rail. Its lightweight yet durable aluminium construction features an anodized coating, reducing corrosion and wear, ensuring extended service life in industrial environments.

This DIN rail clip measures 100 mm in length, 51 mm in height, and 8 mm in width, accommodating enclosures that require sturdy and reliable mounting supports. The spring-loaded steel wire mechanism enables rapid installation or removal of components with just one hand, making maintenance and adjustments efficient.

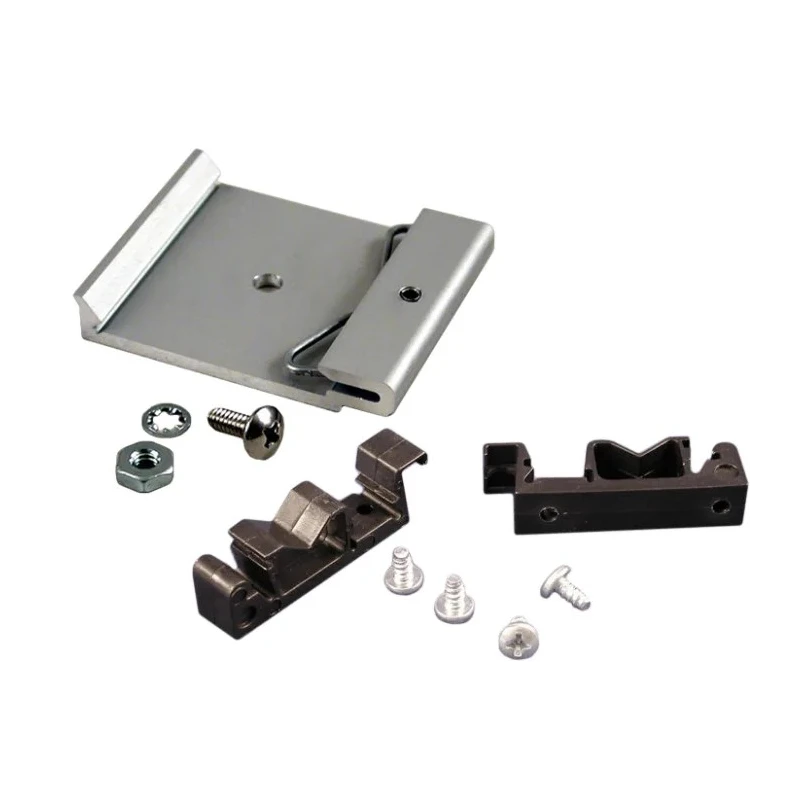

The clip comes with pre-drilled holes for mounting with the included fixing kit containing two bolts, nuts, and washers, ensuring secure attachment to the enclosure frame without additional hardware.

This product conforms to RoHS standards, making it suitable for eco-conscious industrial and automation settings. It supports a maximum load capacity of 56 kg, which is ideal for securing heavier devices in electrical distribution boards, factory automation systems, and server rooms.

Constructed of anodized aluminium for durability and corrosion resistance. Spring-loaded mechanism facilitates fast mounting and removal operations. Pre-drilled holes and included fixings simplify installation. Load capacity rated at 56 kg for heavy enclosure applications.

RoHS compliant, supporting environmental safety requirements. Designed for use with 35 mm top-hat DIN rails. Product origin: Canada, ensuring strict quality manufacturing standards.

Used widely in electrical distribution networks, industrial automation, and server room installations, the Hammond 1427DIN100M series clip offers an efficient, reliable solution for mounting enclosures onto DIN rails without built-in mounting accessories.
