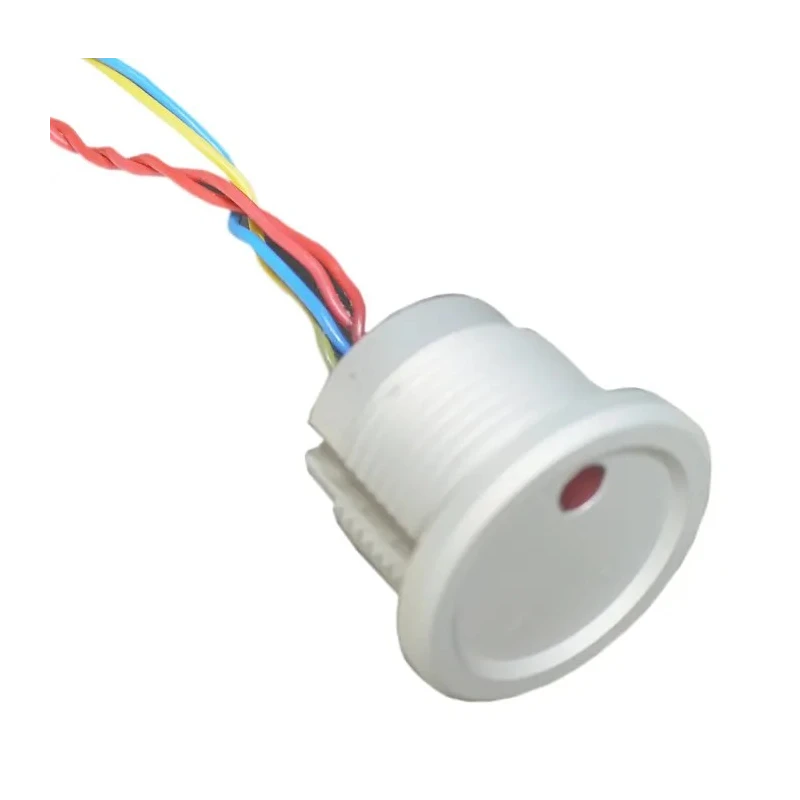

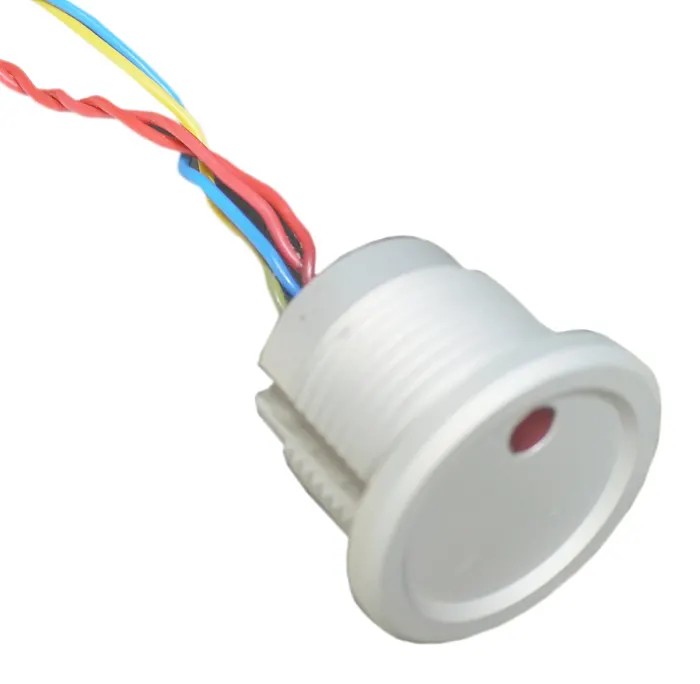

CAMDENBOSS Illuminated Momentary Piezo Switch, SPST, IP68 Wire, 200mA, 22.5 mm Panel Cutout, 70°C Max CPS22IR-ALNA-24RG

CAMDENBOSS CPS22IR-ALNA-24RG illuminated momentary piezo switch is engineered for demanding industrial and commercial automation applications. Featuring a robust solid-state piezo pushbutton design, this switch offers a sealed IP68 protection rating ideal for harsh environments exposed to dust and water.

The momentary SPST switch operation combined with a 200mA contact current rating allows safe low voltage control circuits with high reliability. Its red actuator provides clear visual feedback with integrated LED illumination available in green and red colors, enhancing status visibility.

Constructed with an aluminum housing, the switch delivers tamper and vandal resistance and is rated for operation in temperatures ranging from 20°C to 70°C. The 22.5 mm panel cutout size and wire terminal type ensure straightforward installation across diverse control panels and equipment.

Designed for industrial, electrical automation, and control system use cases, the CPS22IR-ALNA-24RG promises exceptional durability with an expected lifetime of up to 50 million switching cycles. Its normally open configuration and impulse time between 125 to 300 milliseconds make it suitable for precise momentary switching actions.

The product is made in Israel adhering to high manufacturing standards, though it does not carry specific hazardous area certifications or approvals. It serves well in applications requiring rugged, illuminated piezo switches with superior sealing and operational longevity.

The switch features a 22.5 mm panel cutout for universal mounting. High ingress protection rating of IP68 protects against dust and water ingress. Momentary, normally open SPST contact configuration for impulse switching.

Illuminated with red actuator and LED colors of green and red for visual status feedback. Wire termination type allows flexible wiring installations. Capable of handling contact currents up to 200mA at 24V AC/DC. Operating temperature range from 20°C to 70°C supports application versatility.

Robust aluminum construction provides tamper-resistant and vandal-proof switch housing. Exceptional expected lifespan of 50 million operations guarantees enduring reliability.
