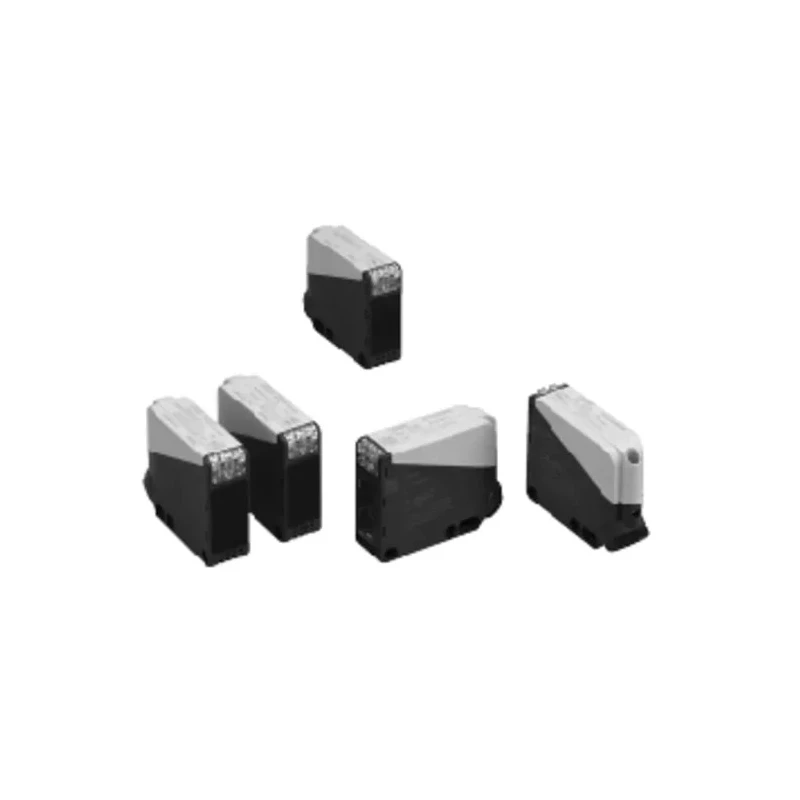

Idec Retroreflective Photoelectric Sensor, Block Sensor, 7 m Detection Range, Relay Output, IP67, SA1U-P07M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Response time | 20ms |
| Light Source | LED |
| Detection range | 7 m |
| Model | SA1U-P07M |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Polybutylene Terephthalate |
| Output type | Relay |
| Series | SA1U |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Retroreflective |
| Terminal type | Spring Up |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, cULus Listed |
| Maximum AC Voltage | 250V ac |
| Materials Detected | Glass |
| Adjustable Time Delay | 0.1 to 5 seconds |
| Sensor Style | Block |
| Mounting hole centers | 40, 50 to 55 mm |
Key Features
- The sensor supports universal voltage operation from 24 to 240V AC and 12 to 240V DC.
- It features spring-up terminal type for easy wiring and mounting via flange with mounting hole centers of 40, 50 to 55 mm.
- Built with polybutylene terephthalate housing, it detects glass materials effectively using LED light source.
- Designed for industrial applications, it operates reliably between -25°C to 60°C and withstands a maximum current of 3A.
- Response time is a fast 20 ms with adjustable time delay from 0.1 to 5 seconds.
- The device features SPDT relay output contact and interference prevention allowing close proximity mounting of two units.
- IP67 rated for dust-tight and water ingress protection, suitable for harsh environments.
- Certified to CE and cULus standards for quality and safety compliance.
Product Description
Idec SA1U-P07M Retroreflective Photoelectric Sensor is a block style sensor designed for reliable detection over a 7-meter range with relay output and IP67 protection rating. This sensor supports universal voltages from 24 to 240 V AC and 12 to 240 V DC, enabling flexible installation in various automation and control systems.
It uses an LED light source to detect glass materials with high accuracy and features a spring-up terminal block for convenient wiring, which can be extended up to 100 meters with appropriate cabling.
Constructed with durable polybutylene terephthalate housing, the sensor operates in ambient temperatures ranging from -25°C to 60°C and supports a maximum current of 3A, making it suitable for demanding industrial environments.
The device is equipped with an SPDT relay contact output and includes interference prevention allowing two units to be installed closely without loss of performance. Mounting is facilitated by a flange with hole centers from 40 to 55 mm, enabling secure and accurate placement.
Installation and operation are supported by stable LED indicator status lights and adjustable time delays ranging from 0.1 to 5 seconds. Certified to CE and cULus standards, this sensor ensures compliance with industrial safety and quality requirements.
The sensor supports universal voltage operation from 24 to 240V AC and 12 to 240V DC. It features spring-up terminal type for easy wiring and mounting via flange with mounting hole centers of 40, 50 to 55 mm. Built with polybutylene terephthalate housing, it detects glass materials effectively using LED light source.
Designed for industrial applications, it operates reliably between -25°C to 60°C and withstands a maximum current of 3A. Response time is a fast 20 ms with adjustable time delay from 0.1 to 5 seconds. The device features SPDT relay output contact and interference prevention allowing close proximity mounting of two units.
IP67 rated for dust-tight and water ingress protection, suitable for harsh environments. Certified to CE and cULus standards for quality and safety compliance.
This Photoelectric Sensor is ideal for industrial automation, manufacturing process control, HVAC systems, water treatment monitoring, and other electrical sensing applications requiring reliable object detection over medium range distances.
Explore more sensors and control gear solutions at EnvMart for your automation and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 7 meters.
It is designed to effectively detect glass materials using an LED light source.
The response time is 20 milliseconds.
It supports universal voltage operation from 24 to 240V AC and 12 to 240V DC.
The sensor has an IP67 rating, making it dust-tight and protected against water ingress.
The adjustable time delay ranges from 0.1 to 5 seconds.
It can withstand a maximum current of 3A.
This model features a relay output contact.
The mounting hole centers are 40 mm and 50 to 55 mm.
It operates reliably between -25°C to 60°C.
The housing is constructed from polybutylene terephthalate.
Yes, it is certified to CE and cULus standards for quality and safety compliance.
