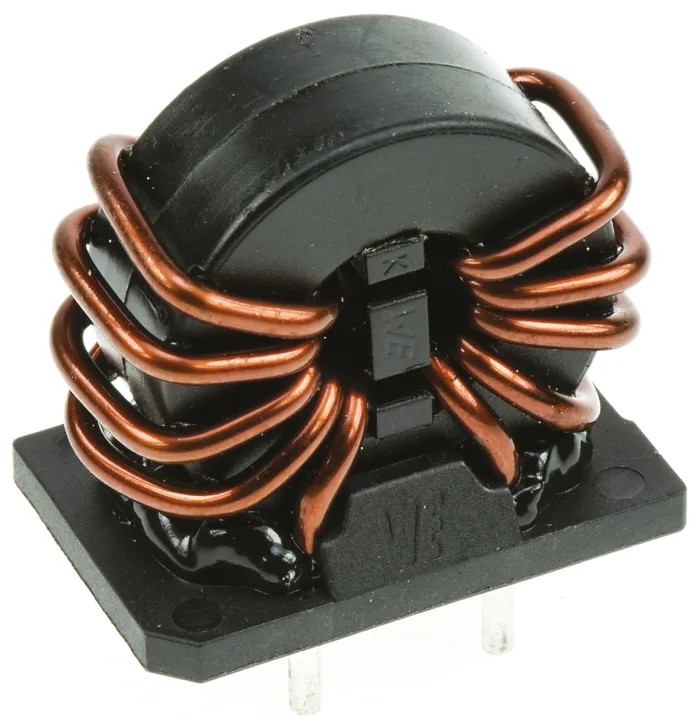

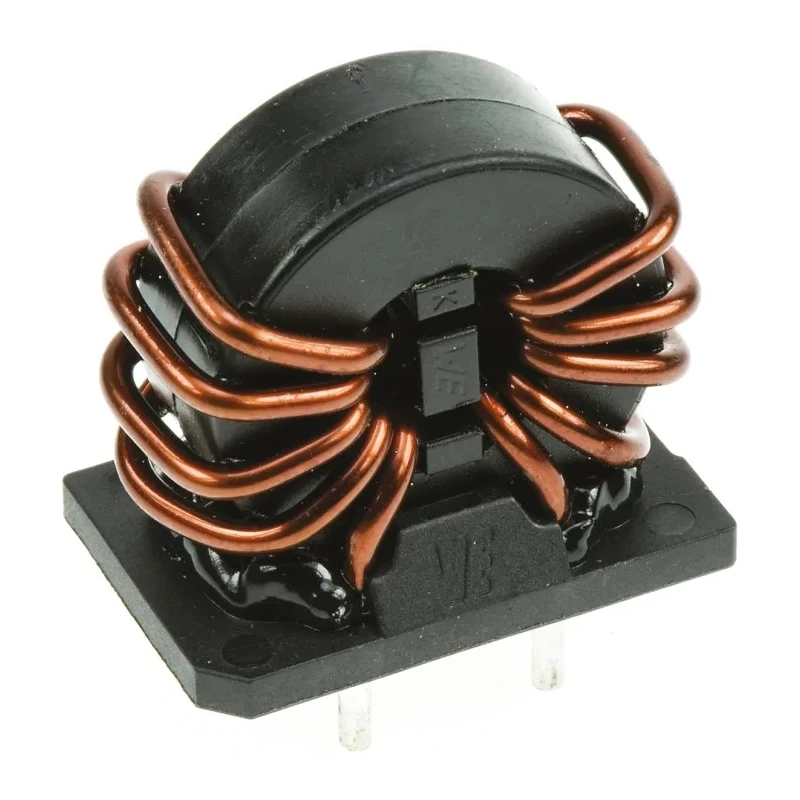

Wurth Elektronik 2 mH Nano Crystal Common Mode Choke Through Hole 15 A Max DC Current 5 mΩ Rdc 7448041502
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 30mm |
| Brand | Wurth Elektronik |
| Height | 32mm |
| Length | 30mm |
| Depth | 19mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Nano Crystal |
| Inductance | 2mH |
| Standards/Approvals | RoHS, REACH, ENEC 10, VDE |
| Maximum DC Current | 15A |
| Maximum DC Resistance | 5mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 300MHz |
| Lead Pitch | 10mm |
| Lead Diameter | 1.3mm |
| Small size Frequency range | 1 kHz-300 MHz |
| Wurth Elektronik 2 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 15 A Idc, 5 mΩ Rdc, WE-CMBNC |
Key Features
- Features a maximum DC current rating of 15 A for demanding applications.
- Constructed with a high permeability nano crystal core to ensure high efficiency and stability.
- Maximum DC resistance is minimal at 5 mΩ to reduce power loss.
- Designed for through-hole mounting with 1.3 mm lead diameter and 10 mm lead pitch.
- Operates reliably across a temperature range from -40°C to 125°C.
- Maximum self-resonant frequency is 300 MHz, supporting broadband suppression from 1 kHz to 300 MHz.
- Compact dimensions with 30 mm diameter, 32 mm height, 30 mm length, and 19 mm depth.
- Termination style is solder, compatible with standard PCB assembly processes.
Product Description
Wurth Elektronik 7448041502 is a 2 mH Nano Crystal Common Mode Choke designed for efficient suppression of common mode noise in power electronics and signal filtering applications. It features a high permeability nanocrystalline core material that provides improved inductance stability and performance at high temperatures.
This common mode choke supports a maximum DC current of 15 A and a low DC resistance of 5 mΩ, enabling high current handling with minimal power loss. Its operating temperature range spans from -40°C to 125°C, making it suitable for industrial and automotive environments.
The through-hole mount type with 1.3 mm lead diameter and 10 mm lead pitch ensures reliable solder connections and easy PCB integration. The choke has compact physical dimensions of 30 mm diameter, 32 mm height, 30 mm length, and 19 mm depth, optimizing space without compromising performance.
Its maximum self-resonant frequency of 300 MHz allows broadband noise suppression spanning 1 kHz to 300 MHz, making it ideal for radio interference suppression, power line filtering, and noise mitigation in motors and power supplies.
The product complies with RoHS, REACH, ENEC 10, and VDE standards, ensuring environmental and safety compliance. Packaged in trays and cartons, it is ready for insertion into manufacturing processes to improve production efficiency.
Maximum DC current of 15 A for high load applications. Nano crystal core material for enhanced magnetic performance. Low DC resistance of 5 mΩ for reduced energy loss. Through-hole mounting with standard pitch and lead size.
Wide operating temperature range from -40°C to 125°C. High-frequency performance up to 300 MHz SRF. Compact physical dimensions optimize PCB space. Compliant with international environmental and safety standards. Suitable for industrial, automotive, and power electronics applications.
Packaging supports efficient manufacturing integration. Explore more products in Passive Components and Leaded Inductors categories at EnvMart for your industrial and electronic component needs.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2 mH, designed for effective suppression of common mode noise.
It supports a maximum DC current of 15 A, making it suitable for demanding applications.
The maximum DC resistance is 5 mΩ, which helps reduce power loss during operation.
It operates reliably across a temperature range from -40°C to 125°C, suitable for various environments.
The choke has a diameter of 30 mm, height of 32 mm, length of 30 mm, and depth of 19 mm.
The maximum self-resonant frequency is 300 MHz, allowing for broadband noise suppression.
It is designed for through-hole mounting with a lead diameter of 1.3 mm and a lead pitch of 10 mm.
This model complies with RoHS, REACH, ENEC 10, and VDE standards for environmental and safety compliance.
The termination style is solder, which is compatible with standard PCB assembly processes.
It is constructed with a high permeability nano crystal core, enhancing efficiency and stability.
It is suitable for power electronics and signal filtering applications, particularly in industrial and automotive environments.
It is packaged in trays and cartons, facilitating efficient insertion into manufacturing processes.
