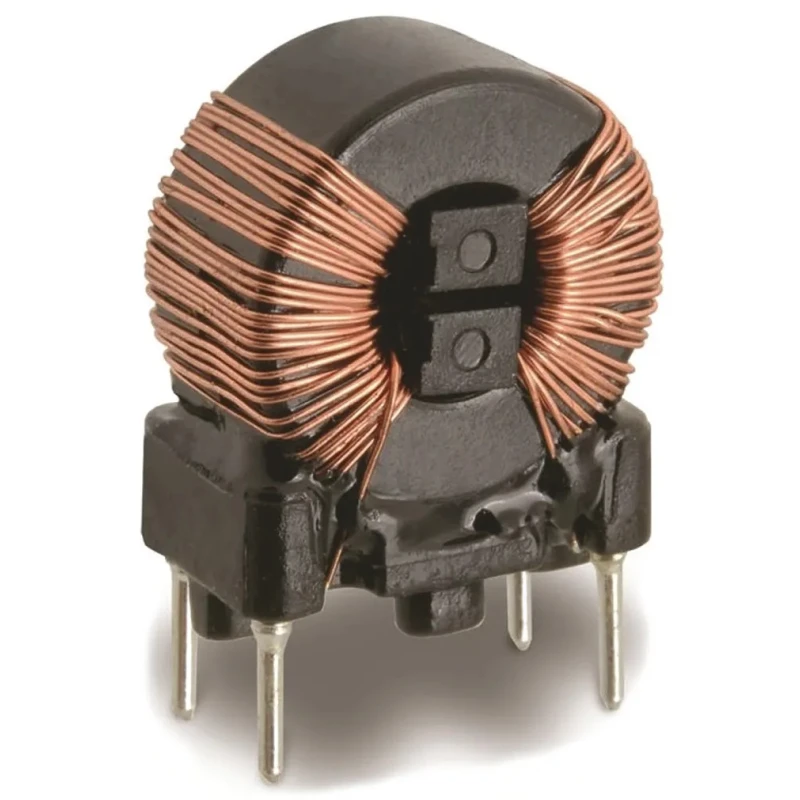

Wurth Elektronik 8 mH Nano Crystal Common Mode Choke Through Hole 1 A IDC 330 mΩ Max DC Resistance 250V AC 7448011008

Wurth Elektronik model 7448011008 is an 8 mH Nano Crystal Common Mode Choke with a nano crystalline core material that offers very high permeability and improved isolation through its plastic case and winding spacer. This component is designed to suppress common mode noise effectively across a frequency range from 1 kHz to 300 MHz. Its through hole mount design with 0.7 mm lead diameter and 10 mm lead pitch allows for secure PCB integration.

This common mode choke supports a maximum DC current of 1 ampere and features a maximum DC resistance of 330 milliohm, contributing to efficient power line filtering with minimal losses. It can safely operate up to a maximum voltage of 250 V AC and withstands operating temperatures from -40°C to 125°C, making it suitable for demanding industrial environments.

The WE-CMBNC series offers broadband suppression applications such as power electronics, power line input/output filters, radio interference suppression in motors, and general common mode noise reduction. Its compact form factor measuring 14 mm in length, 16 mm in height, and 7.5 mm in depth supports space-saving designs.

Key features include the high permeability nanocrystalline core, high and stable inductance values at elevated temperatures, and robust mechanical construction with solder termination style. This product meets industry standards including REACH, ENEC 10, RoHS, and VDE certifications, assuring compliance and reliability.

Constructed with a nano crystalline core for enhanced performance. Through hole mounting and solder termination ensure secure placement. Max DC current of 1 A with low max DC resistance of 330 mΩ. Supports wide operating temperature range from -40°C to 125°C.

Frequency range coverage from 1 kHz to 300 MHz. Compact dimensions enable efficient PCB layout. Compliant with REACH, ENEC 10, RoHS, and VDE standards.

This component is ideal for industrial and electronic manufacturing applications, including power filtering, motor noise suppression, and EMI reduction in sensitive systems. The Wurth Elektronik WE-CMBNC series represents reliable technology, precision manufacturing, and suitability for diverse electronics design projects. Explore related Wurth Elektronik leaded inductors for comprehensive power line noise management solutions available on EnvMart.
