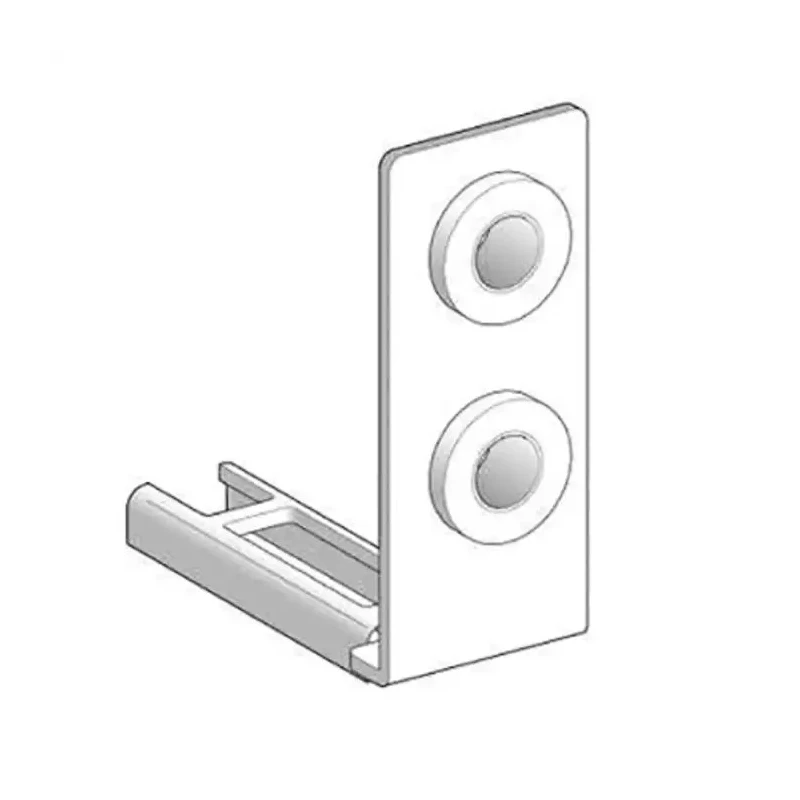

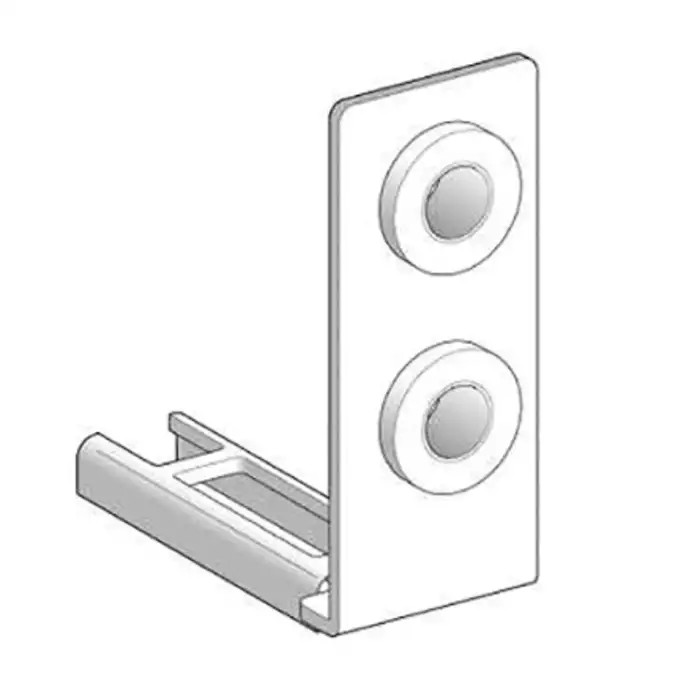

Telemecanique Sensors Actuator for Use with XCSMP Safety Switch XCSZ84

Telemecanique Sensors XCSZ84 actuator is engineered specifically for use with the XCSMP Safety Interlock Switch, providing robust operator protection by stopping machinery when the actuator is disengaged from the switch head. This safety actuator complies with leading industrial standards including IEC 60947, EN 292, EN 60204, and EN 1088 to ensure high reliability and safety performance.

Constructed with plastic double insulated turret heads, the actuator delivers excellent durability and operational safety. It supports category 3 or category 4 control circuits per EN 954 when paired with a PREVENTA XPS safety module, enhancing machine safety compliance.

This actuator includes pre-cabled options in lengths of 2 meters, 5 meters, or 10 meters, facilitating flexible installation in various industrial environments. It features a mechanical durability rating exceeding 1 million operating cycles, designed to support demanding operational needs in manufacturing, automation, electrical, and safety interlock applications.

The actuator functions reliably within an ambient air temperature range from -25 °C to +70 °C for operation, with storage conditions between -40 °C and +70 °C. It can withstand actuation speeds from a minimum of 0.05 m/s up to a maximum of 1.5 m/s and supports a maximum operating rate of 1200 cycles per hour to maintain performance over extended use.

Compatible with XCSMP Safety Switch for secure machine guard interlocking. Complies with IEC 60947, EN 292, EN 60204, EN 1088 safety standards. Plastic double insulated turret head for enhanced durability. Pre-cabled configurations with 2m, 5m, or 10m cable lengths.

Mechanical durability with over 1 million operating cycles. Operating temperature range: -25 °C to +70 °C. Actuation speed range: 0.05 m/s to 1.5 m/s. Maximum operating rate of 1200 cycles/hour optimized for durability.

This product is ideally suited for industrial automation safety systems, electrical machinery safety interlocks, manufacturing lines, and applications demanding reliable safety switch actuation. It supports compliance with international safety standards to protect operators and equipment effectively.
