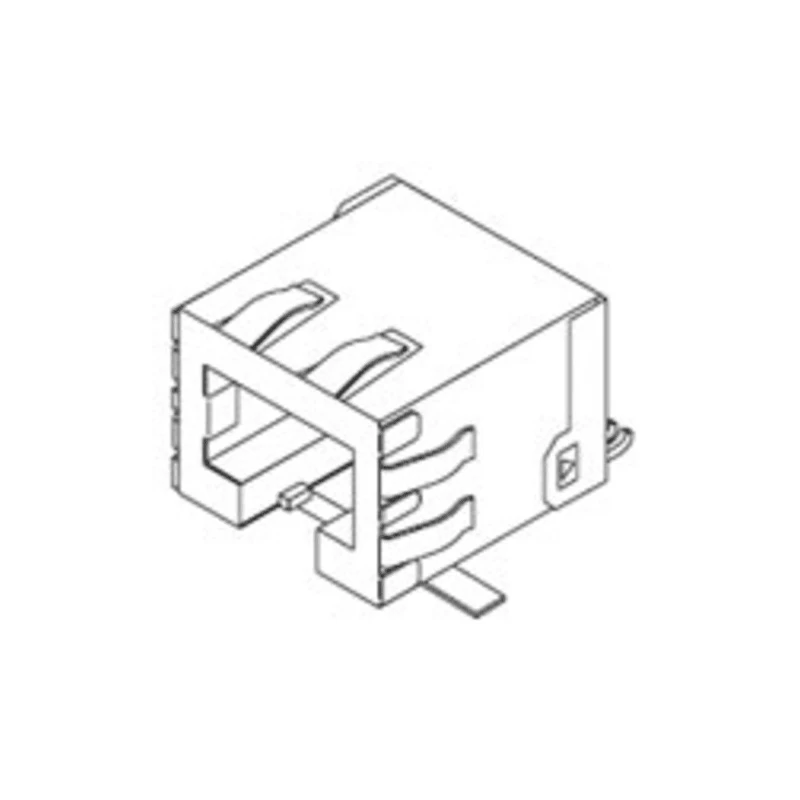

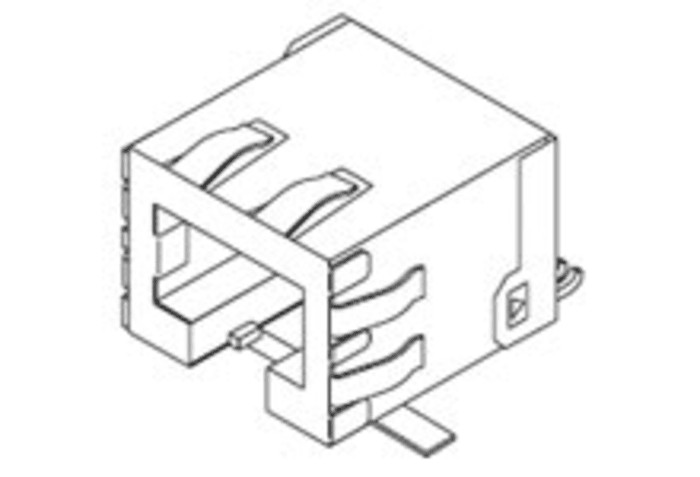

Molex RJ45 Connector Female Surface Mount Cat5e Shielded Right Angle 1 Port 8 Way
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 16.6mm |
| Model | RJ45 |
| Depth | 18.8mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 13mm |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | 85543 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold over Nickel Palladium |
| Connector Gender | Female |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- This connector supports Cat5e LAN category for high-speed network transmission.
- It features a right-angle orientation for efficient PCB or panel mounting.
- The shielded design protects against electromagnetic interference for signal integrity.
- Construction includes phosphor bronze contacts plated with gold over nickel palladium for durability.
- Suitable for surface mount with solder termination ensuring secure connectivity.
- Operating temperature ranges from -40°C to 85°C for robust performance in various environments.
- Compact dimensions of 16.6mm length, 18.8mm depth, and 13mm width optimize space utilization.
- This product is compliant with RoHS and is manufactured in Ireland.
Product Description
Molex RJ45 Connector Female Surface Mount Cat5e Shielded Right Angle 1 Port 8 Way 85543-7002 is a modular jack connector developed for Ethernet connectivity within industrial, networking, telecommunications, and electronic equipment.
Featuring a single port with eight ways, this shielded Cat5e RJ45 connector ensures superior protection against electromagnetic interference, supporting stable network performance.
The right-angle orientation facilitates true surface mounting with robust solder termination, enabling efficient PCB layout designs and compact installations.
Constructed using phosphor bronze contacts with a gold over nickel palladium plating, this connector offers excellent conductivity and corrosion resistance required in demanding environments.
It operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for varied industrial and outdoor usage scenarios. The physical dimensions (length 16.6mm, depth 18.8mm, width 13mm) optimize the space available on network boards and devices.
Manufactured in Ireland, this connector adheres to environmental standards including RoHS compliance, assuring quality and regulatory compliance. This connector supports Cat5e LAN category for high-speed network transmission.
Right-angle orientation enables streamlined mounting and space-saving layouts. Shielded design protects against electromagnetic interference for signal clarity. Durable contact material with gold plating ensures longevity and stable electrical performance.
Solder termination offers secure and reliable connections on PCBs. Wide operating temperature range accommodates diverse environmental conditions. Compact size fits efficiently into network and electronic equipment designs.
RoHS compliant and manufactured in Ireland for quality assurance. Used extensively in industrial, telecommunications, and networking applications. Explore a wide range of Molex connectors and Ethernet solutions on EnvMart for your industrial and commercial network installations.
Explore more products in our Ethernet Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial and outdoor environments.
It features a solder termination type, ensuring secure and reliable connections on printed circuit boards (PCBs).
This model is designed with a single port, providing one connection point for Ethernet applications.
The connector has a right-angle orientation, facilitating efficient surface mounting and compact installations on PCBs.
It is constructed with phosphor bronze contacts, which are plated with gold over nickel palladium for enhanced conductivity and corrosion resistance.
The connector has compact dimensions of 16.6mm in length, 18.8mm in depth, and 13mm in width, optimizing space utilization on network boards.
Yes, this RJ45 connector is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
This model features a shielded design that protects against electromagnetic interference, ensuring signal integrity during data transmission.
This connector is classified as a modular jack, specifically designed for Ethernet connectivity.
It is manufactured in Ireland, ensuring adherence to quality standards during production.
This connector supports the Cat5e LAN category, facilitating high-speed network transmission.
It is extensively used in industrial, telecommunications, and networking applications, providing reliable Ethernet connectivity.
